100i / 200i / 300i / 400i
30 SPECIFICATIONS Manual PN: 0560956430
B. Torch Leads Lengths
Torch Lead Assembly
Lengths
Feet Meters
10 3.05
15 4.6
25 7.6
50 15.2
75 22.9
100 30.4

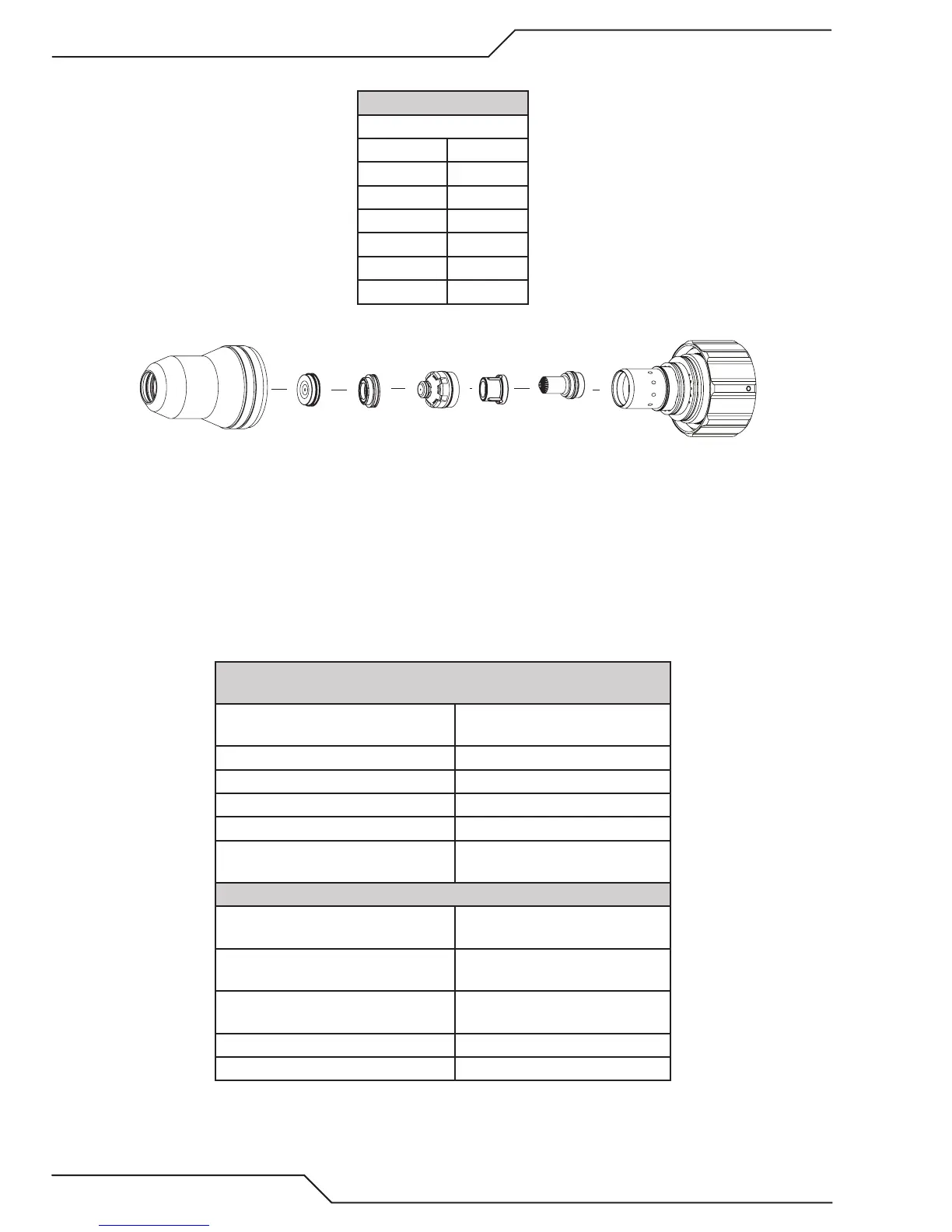

C. Torch Parts (Generic Parts Shown)
Cartridge
Shield Cup
Art # A-04741_AB
Electrode
Tip
Plasma Gas
Distributor
Shield Gas
Distributor
Shield Cap
D. Parts - In - Place (PIP)
The torch is designed for use with a power supply which senses coolant return flow to confirm that torch parts are in place.
If coolant return flow to the power supply is absent or insufficient the power supply will not provide power to the torch.
Coolant leakage from the torch also indicates that torch parts are absent or installed improperly.
E. Type of Cooling
Combination of gas stream through torch and liquid cooling.
F. Torch Data
Torch Ratings
for use with 100i-400i Power Supply
Ambient
Temperature
104° F
40° C
Duty Cycle 100% @ 400 Amps
Maximum Current 400 Amps
Voltage (Vpeak) 500V
Arc Striking Voltage 10kV
Current Up to 400 Amps, DC,
Straight Polarity
Torch Gas Specifications
Plasma Gases: Compressed Air, Oxygen,
Nitrogen, H35, H17, Ar
Shield Gases: Compressed Air, Oxygen,
Nitrogen, Water, H35
Operating Pressure 125 psi ± 10 psi
8.6 bar ± 0.7 bar
Maximum Input Pressure 135 psi / 9.3 bar
Gas flow 10 - 500 scfh
