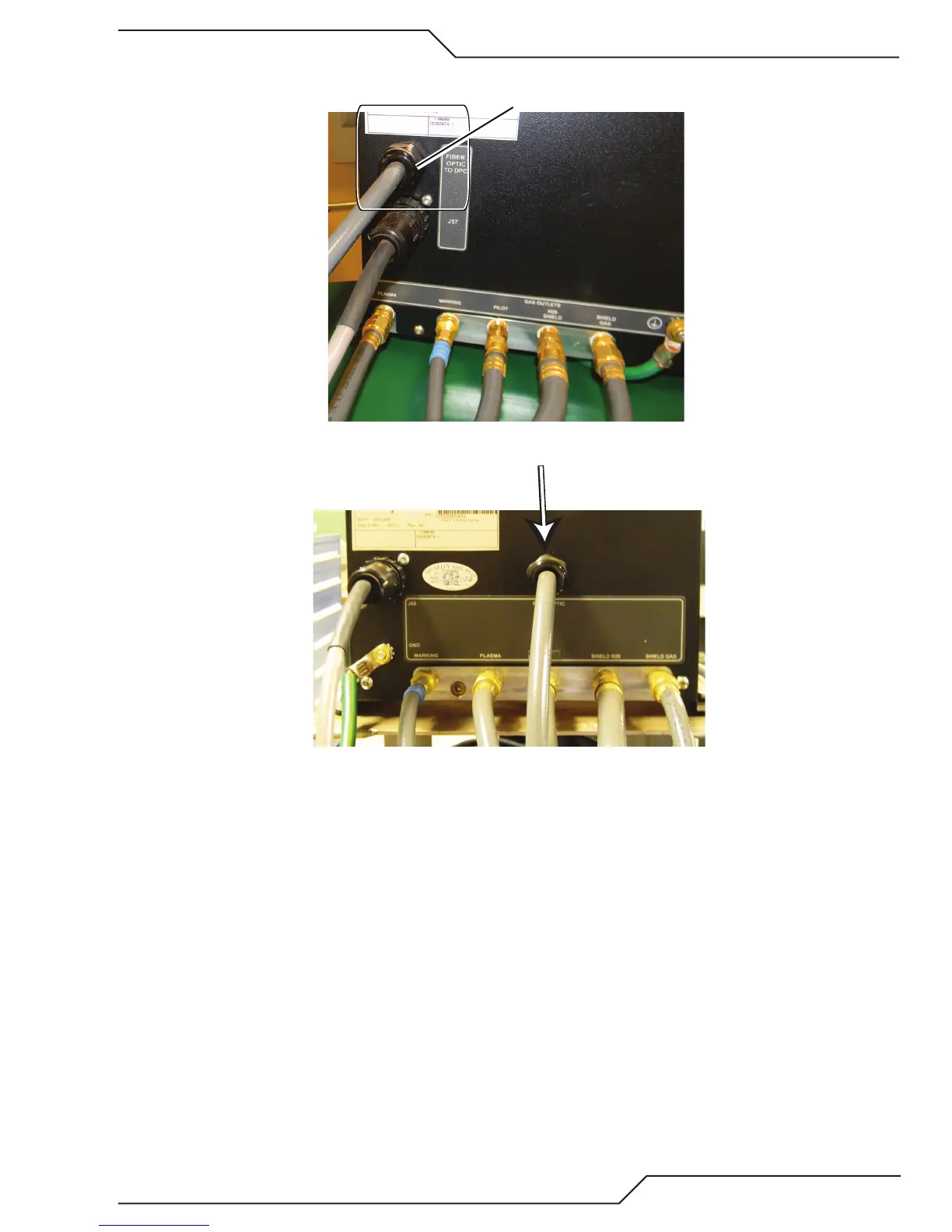

Fiber Optic for
DMC-3000 goes here
Art # A-09152_AB
Insert Fiber Optic cable here
Art # A-09153_AB
4. Secure each of the thin nuts on the through hole protectors so both nut faces are tight against the sheet metal inside and
out.
5. Plug the Fiber Optic Cable into the PCB as shown below for the Gas Selection Console. Make sure the locking tabs are
engaged.
