MAINTENANCE MANUAL
Page 24-18
Effectivity: All
Edition 2 | Rev. 1
Legend to Fig. 24-7
1 External alternator 9 Lock washer
2 Cable 10 Washer 8,4
3 Nut M5 11 V-belt
4 Washer 6 For information:
5 Connector 12 Bracket
6 Bolt M10x45 13 Tension bar
7 Washer 10,1 14 V-belt pulley
8 Bolt M8x20 15 Bolt M8x20

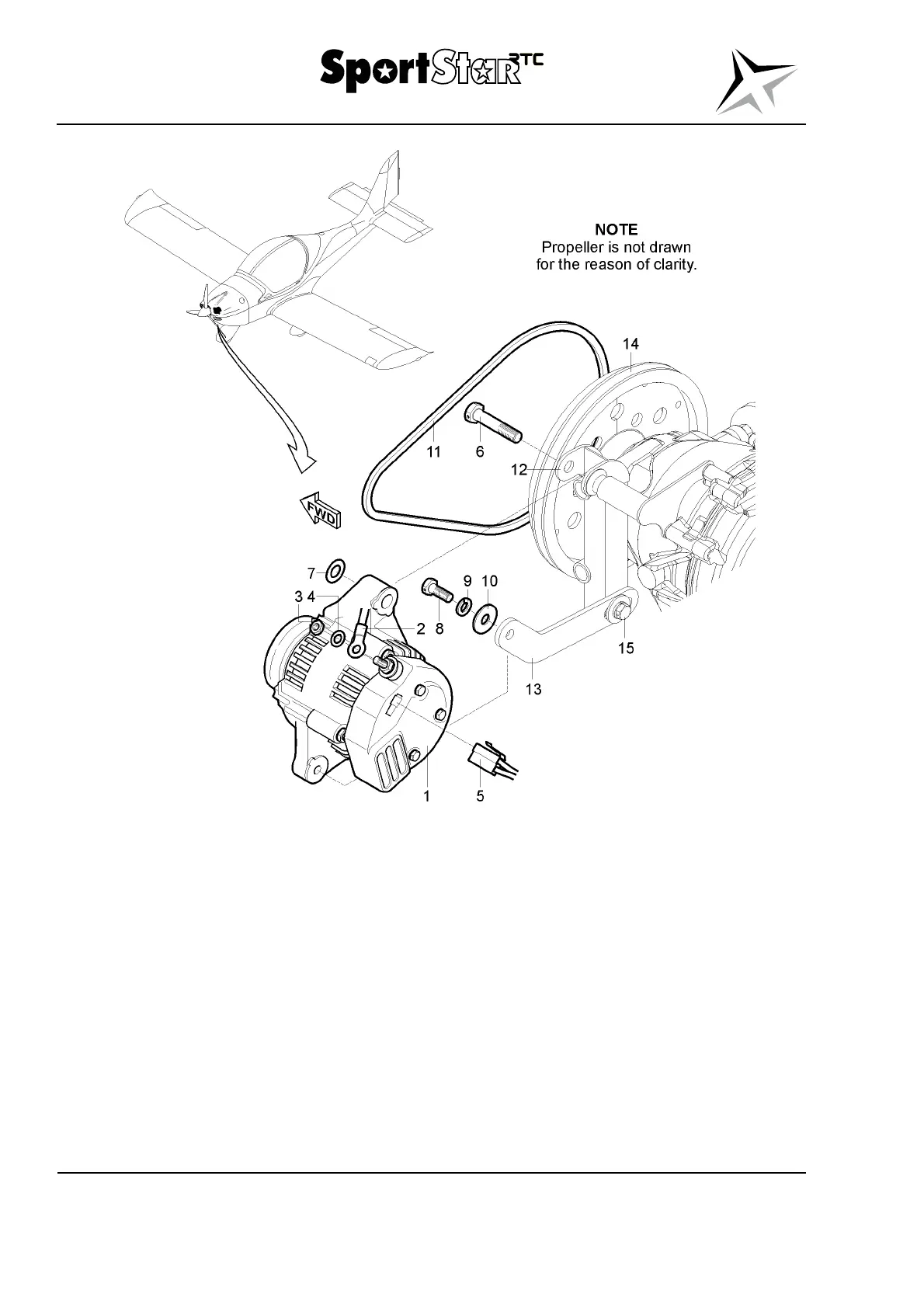

Fig. 24-7 External alternator – removal / installation
