MAINTENANCE MANUAL
Effectivity: All
Page 24-27
Edition 2 | Rev. 1
NOTE
The procedure for removal / installation is identical for the left
battery and also for the right battery.
(1) Removal – battery SV-BAT-320
(a) Switch the electrical network off and disconnect the battery.
(b) Remove the cover of the upper part of fuselage F4 (Section 53-30).
(c) Disconnect the connector (2, Fig. 24-12) from the harness.
(d) Unscrew and remove the nuts (4), washers (5) and the screws (3).
(e) Remove the battery (1).

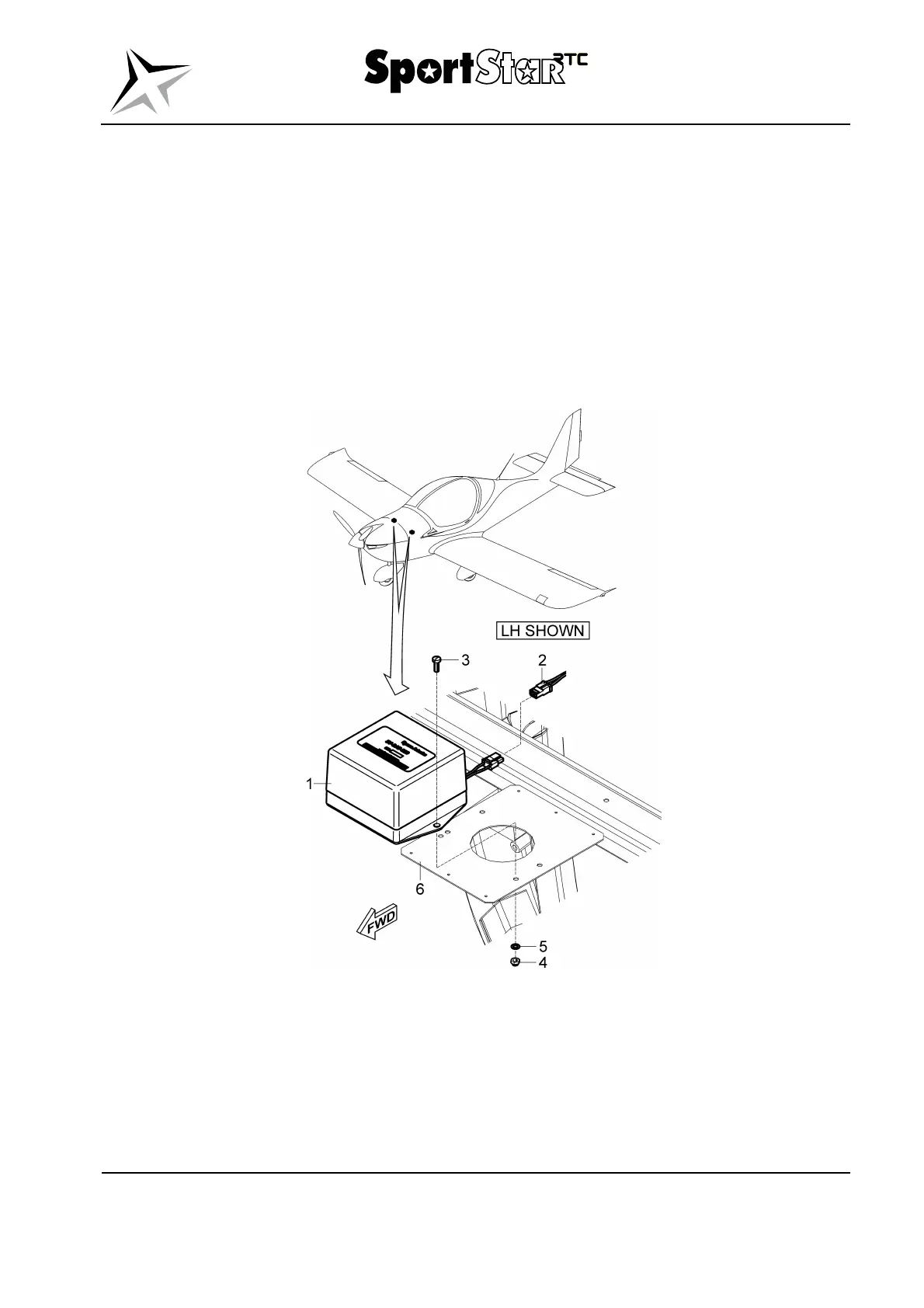

Legend to Fig. 24-12
1 Battery SV-BAT-320 5 Washer 4.3 (2 pcs.)
2 Wires with connector For information:
3 Screw M4x10 (2 pcs.) 6 Bracket
4 Nut M4 (2 pcs.)
Fig. 24-12 Battery SV-BAT-320 – removal / installation
