CARGO COMPARTMENTS
1. DESCRIPTION AND OPERATION
The baggage compartment is located in the cabin behind the pilot seats (see Fig. 25-9). It is equipped
with a net which prevents unwanted baggage movement. Both sides of the baggage compartment
include mesh pockets (3; 4) for the hand baggage. The carpet (1) in the baggage compartment is
attached with Velcro fasteners to the floor.You can access the baggage compartment after you tilt the
cockpit canopy.
Maximum baggage weight is mentioned on the placerd on the rear wall of the baggage compartment.
WARNING
THE SPACE BEHIND THE BAGGAGE COMPARTMENT, WHERE THE ELT
AND THE FIRST AID KIT ARE LOCATED, IS NOT INTENDED AS AN
ADDITIONAL BAGGAGE COMPARTMENT! DO NOT PUT ANY HEAVY
OBJECTS THERE! AIRPLANE REAR C.G. MAY BE EXCEEDED IN SUCH
CASE!
Legend to Fig. 25-9
1 Carpet 3 Left pocket
2 Net 4 Right pocket

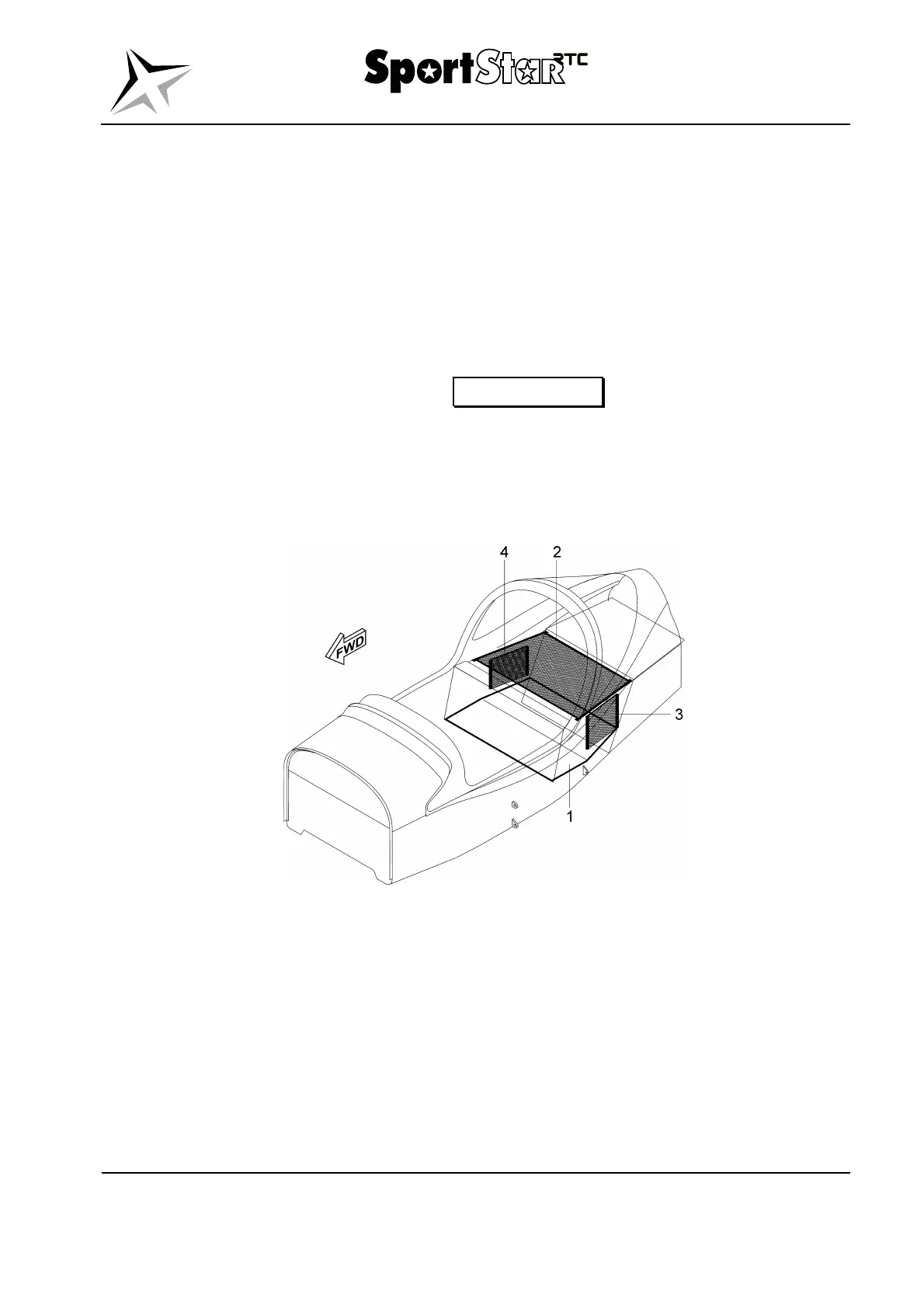

Fig. 25-9 Baggage compartment
