Evector SportStar RTC - Page 152

ERTC022-10-AS
MAINTENANCE MANUAL
26-20
Page 26-6
2019-03-22
Effectivity: All
Edition 2 | Rev. 1

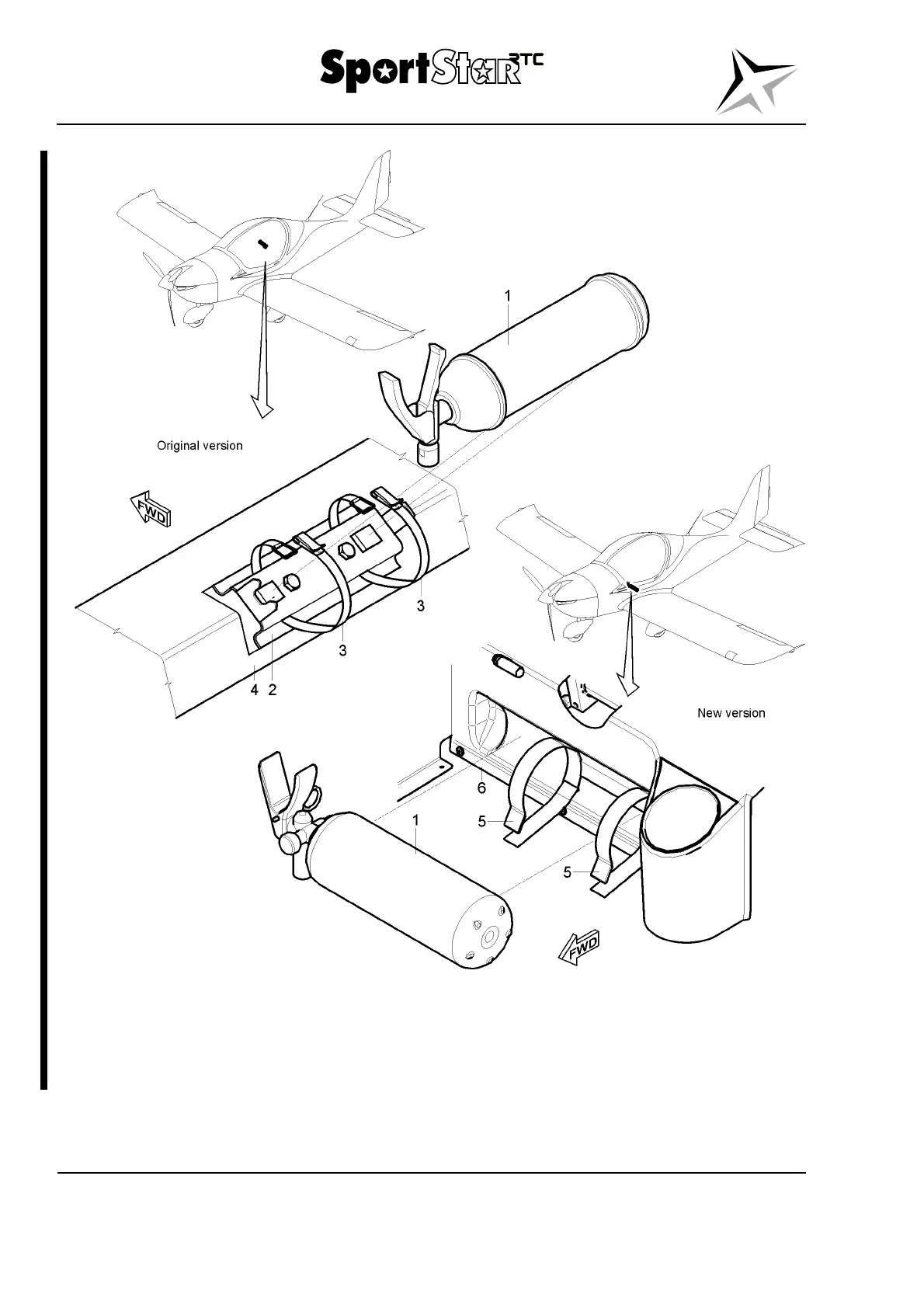

Legend to Fig. 26-1
1 Hand fire extinguisher 4 Bulkhead
2 Holder 5 Strap with Velcro fasteners
3 Strap with quick-release clamp 6 Left control rod cover
Fig. 26-1 Hand fire extinguisher – removal / installation
