(e) The adjustability means a possibility to regulate the length of pull-rod within the
specified range (Fig. 27-1).
(f) When adjusting the lengths of pull-rods, the adjustable end piece must never be
unscrewed below the level of the check hole in the pull-rod. The checking needle
or mandrel, with a diameter capable of passing through the check hole, must
always hit the threaded part of end piece (Fig. 27-2).
Item Drawing No. Length of Pull Rod [mm] Adjustability [mm]
1 S4 01–04 01 500 +/- 8
2 S4 01–13 01 268 +/- 8
3 S4 01–14 01 2370 +/- 4
4 S4 01–15 01 717 +/- 8
5 S4 01–20 01 470 Not specified
6 S4 01–09 01 747 +/- 8
7 S4 01–12 01 1479 +/- 8
8 S4 01–10 01 1479 +/- 8
9 N/A ~208 Not specified
NOTE
The pull-rod 9 is part of the electromechanical strut of pitch trim
control.

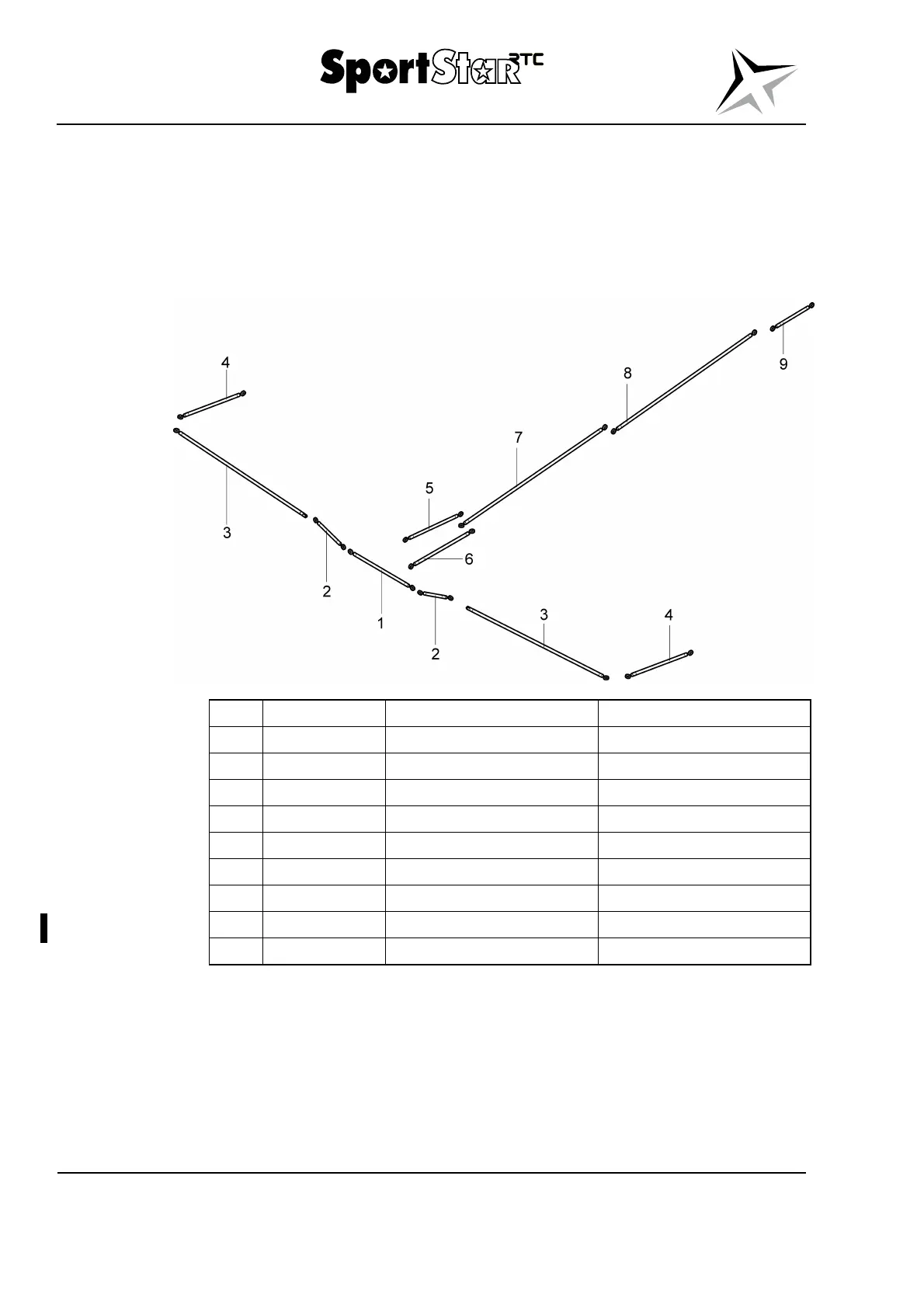

Fig. 27-1 Lengths of control pull-rods
