The deflection of trim tabs of the airplane with analog devices is displayed on the pitch trim
indicator (8, Fig. 31-7) which is installed in the left section of the instrument panel.
For the wiring diagram of the optical signalization, refer to Chapter 91.
Legend to Fig. 31-7
1
Signaling light
CHARGING
6
Signaling light
PITOT HEAT.
2
Signaling light CANOPY
7
Signaling light AUX. CHARG.
3
Signaling light
FLAPS
8
Signaling light
EMS
4
Signaling light PARK BRAKE
LEVER UP
9 Pitch trim indicator
5
Signaling light EXT. POWER

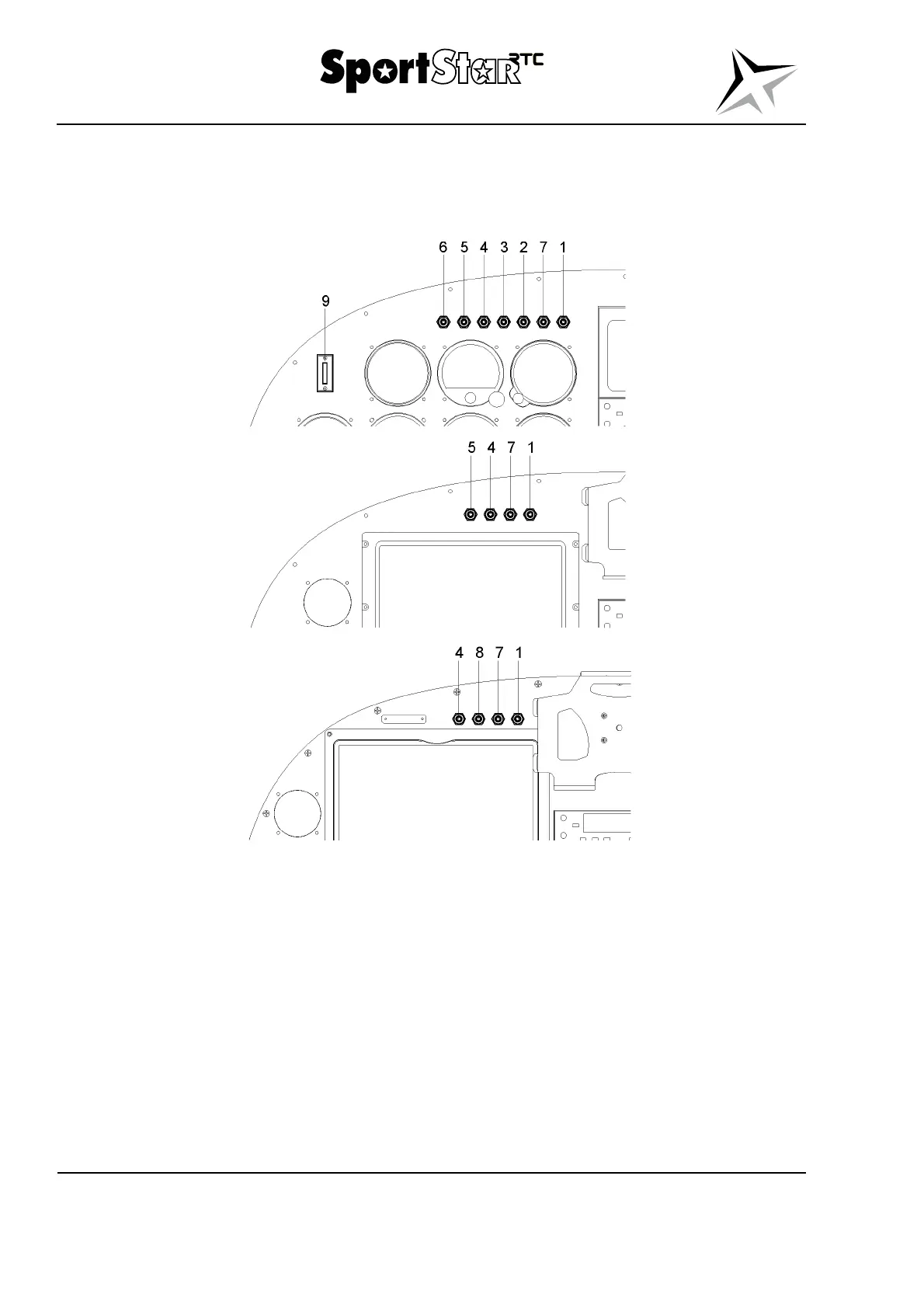

Fig. 31-7 Layout of signalling lights (typical)
