MAINTENANCE MANUAL
Effectivity: All
Page 32-45
Edition 2 | Rev. 0

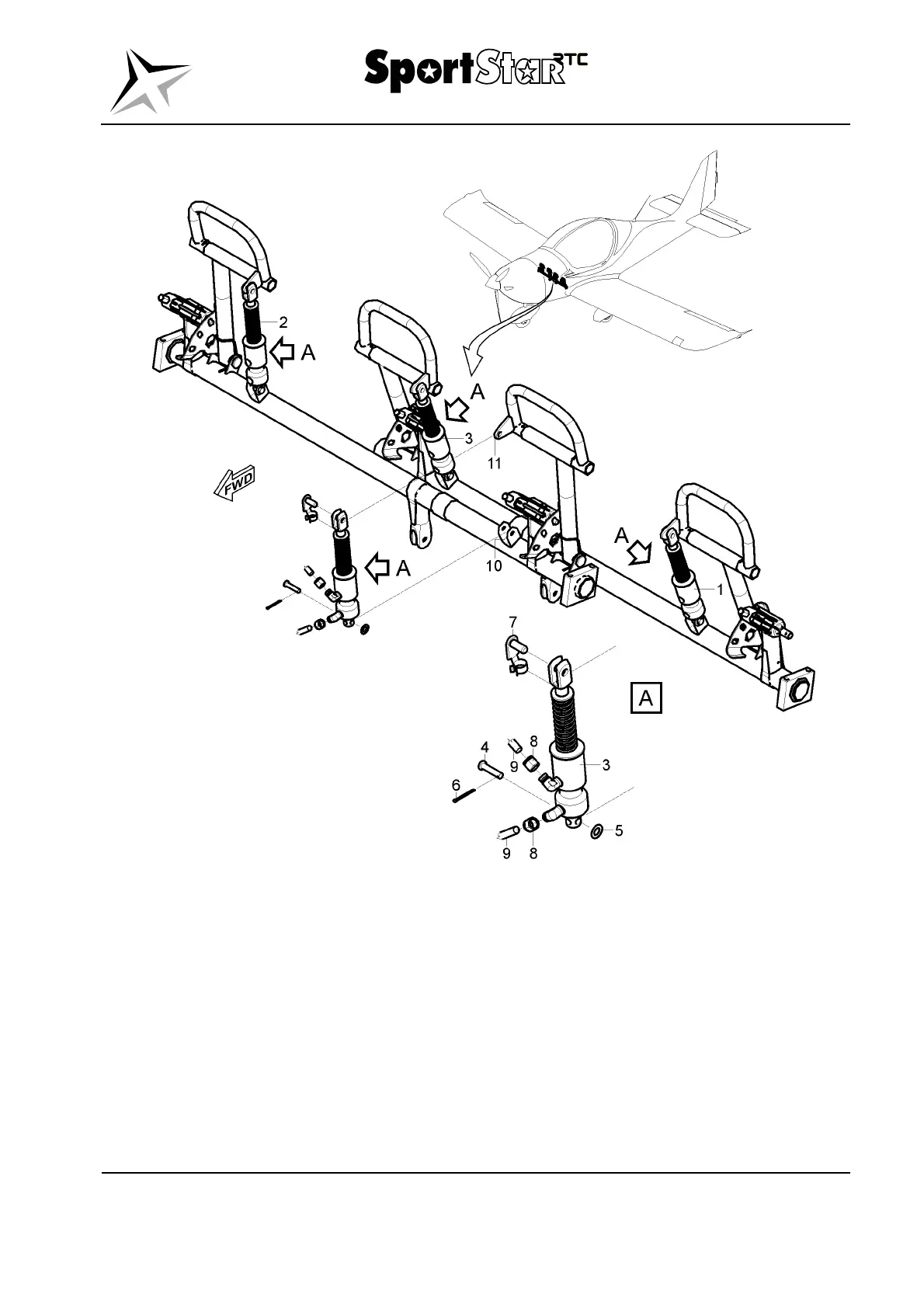

Legend to Fig. 32-15
1 Brake pump E5 10-40 01 7 Fork pin
2 Brake pump E5 10-40 02 8 Swivel nut
3 Brake pump S5 20-40 01 9 Hose
4 Pin 5x20 10 Intermediate shaft fork
5 Washer 5,3 11 Pedal lever
6 Cotter pin 1,6x12
Fig. 32-15 Brake pump – removal / installation
