Evector SportStar RTC - Page 162

ERTC022-10-AS
MAINTENANCE MANUAL
32-42
Page 32-46
2019-03-22
Effectivity: All
Edition 2 | Rev. 1

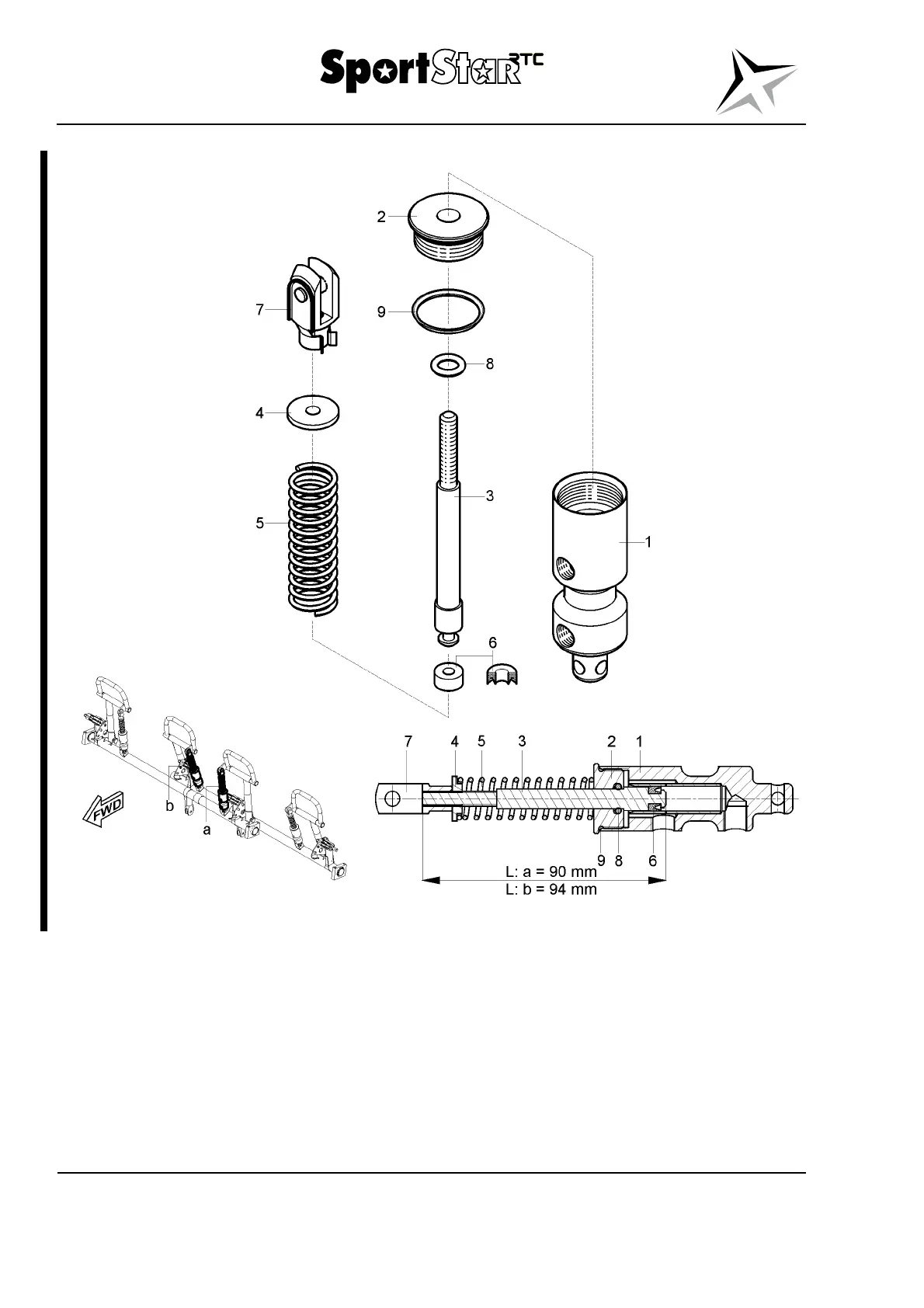

Legend to Fig. 32-16
1 Pump body 6 Ring U
2 Cap 7 Fork with pin
3 Piston 8 Sealing ring ø 6x12
4 Securing nut 9 Sealing ring ø 7,3x2.4
5 Spring
Fig. 32-16 Brake pump S5 20-01 01 – disassembling / assembling
