Evector SportStar RTC - Page 163

MAINTENANCE MANUAL
ERTC022-10-AS
Effectivity: All
32-42
Page 32-47
2017-12-22
Edition 2 | Rev. 0

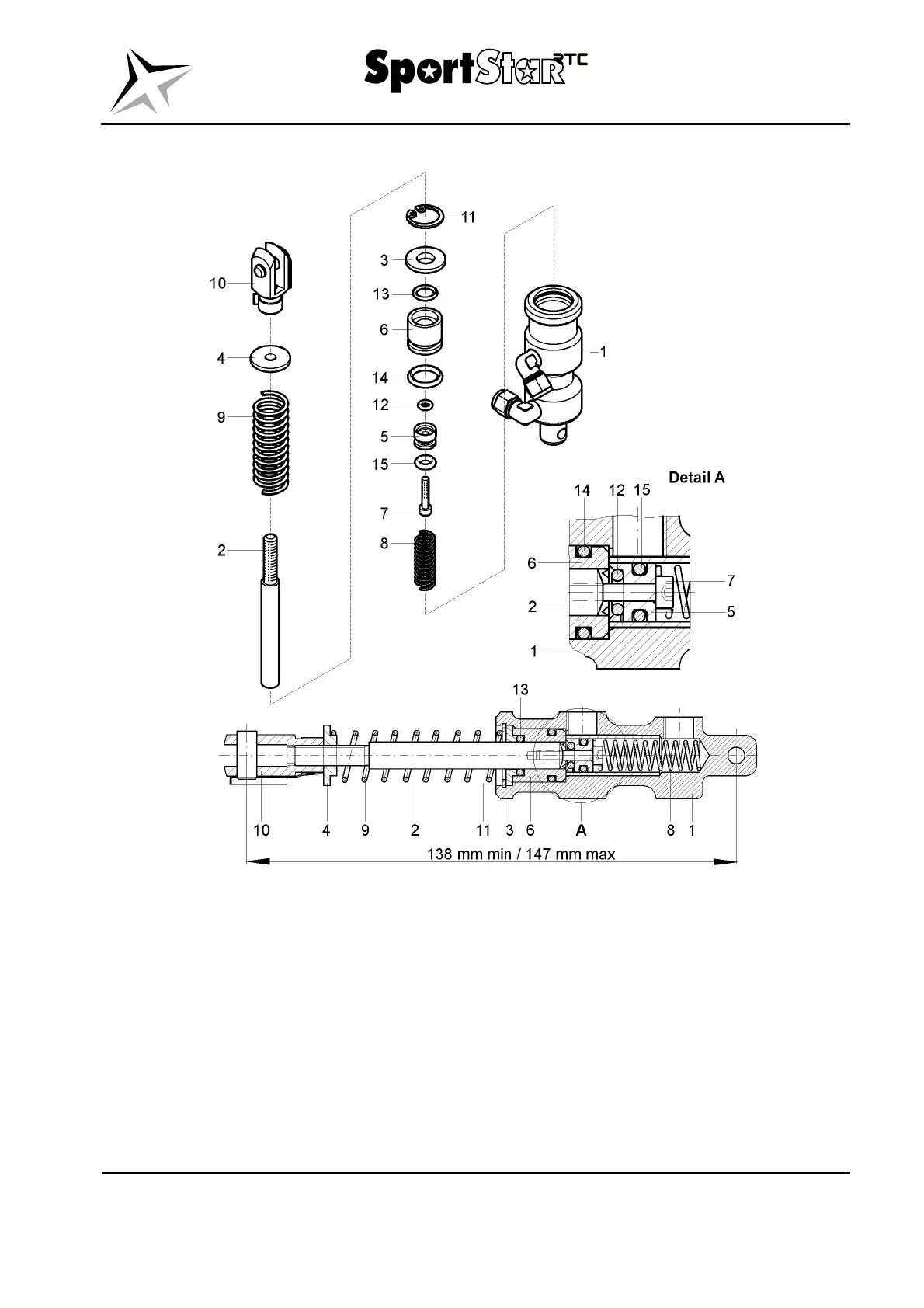

Legend to Fig. 32-17
1 Brake pump body 9 Spring
2 Piston 10 Fork with pin
3 Cylinder closure 11 Locking ring
4 Securing nut 12 Sealing ring ø 4x2
5 Piston 13 Sealing ring ø 7,3x2,4
6 Brake cylinder packing 14 Sealing ring ø 11,3x2,4
7 Screw 15 Sealing ring ø 5,6x2,4
8 Spring
Fig. 32-17 Brake pump E5 10-20 01 – disassembling / assembling
