Evector SportStar RTC - Page 165

MAINTENANCE MANUAL
ERTC022-10-AS
Effectivity: All
32-42
Page 32-53
2017-12-22
Edition 2 | Rev. 0

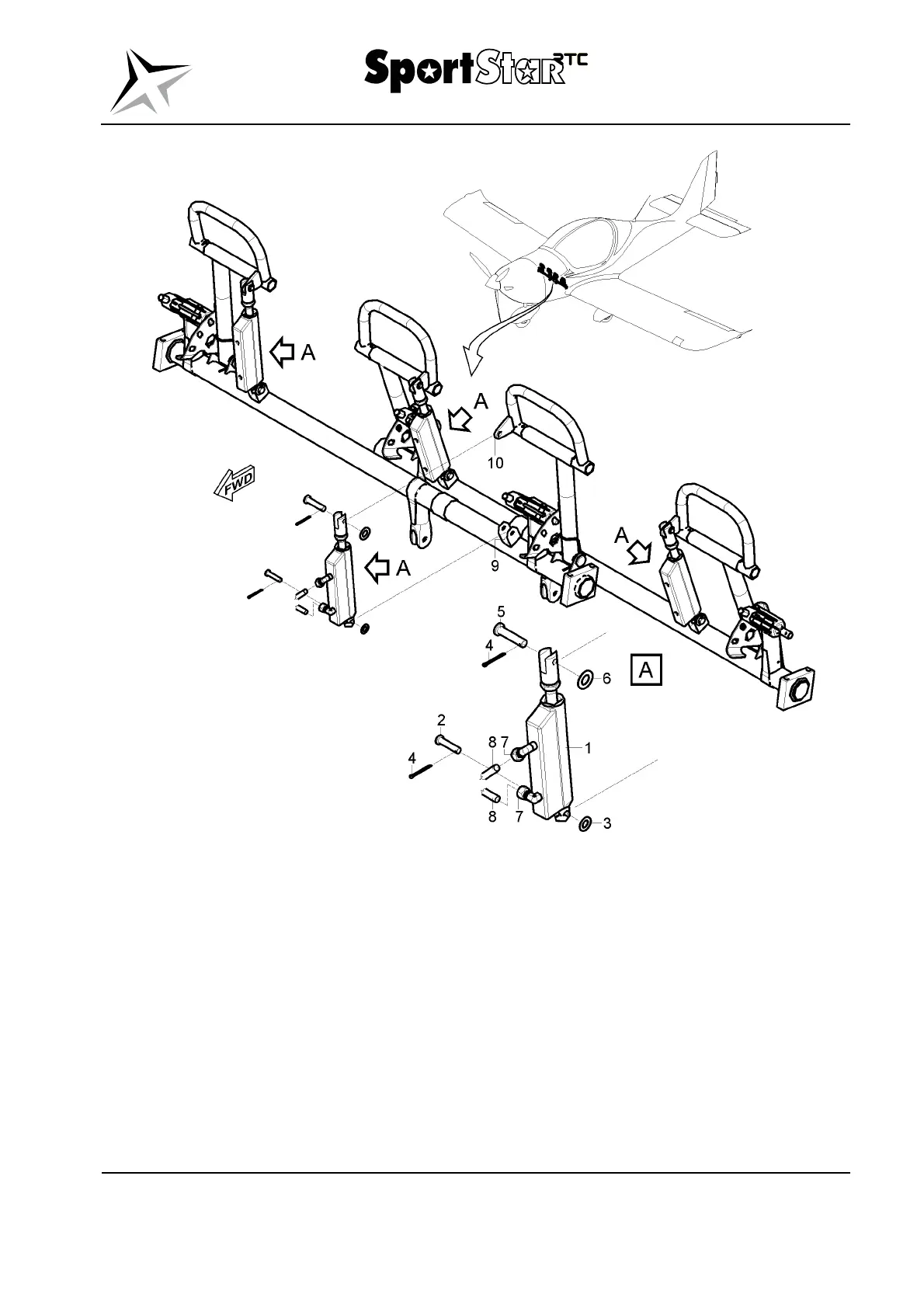

Legend to Fig. 32-20
1 Brake pump 6 Washer 6,4
2 Pin 5x20 7 Angular connection
3 Washer 5,3 8 Hose
4 Cotter pin 1,6x12 9 Intermediate shaft fork
5 Pin 6x20 10 Pedal lever
Fig. 32-20 Matco brake pump – removal / installation
