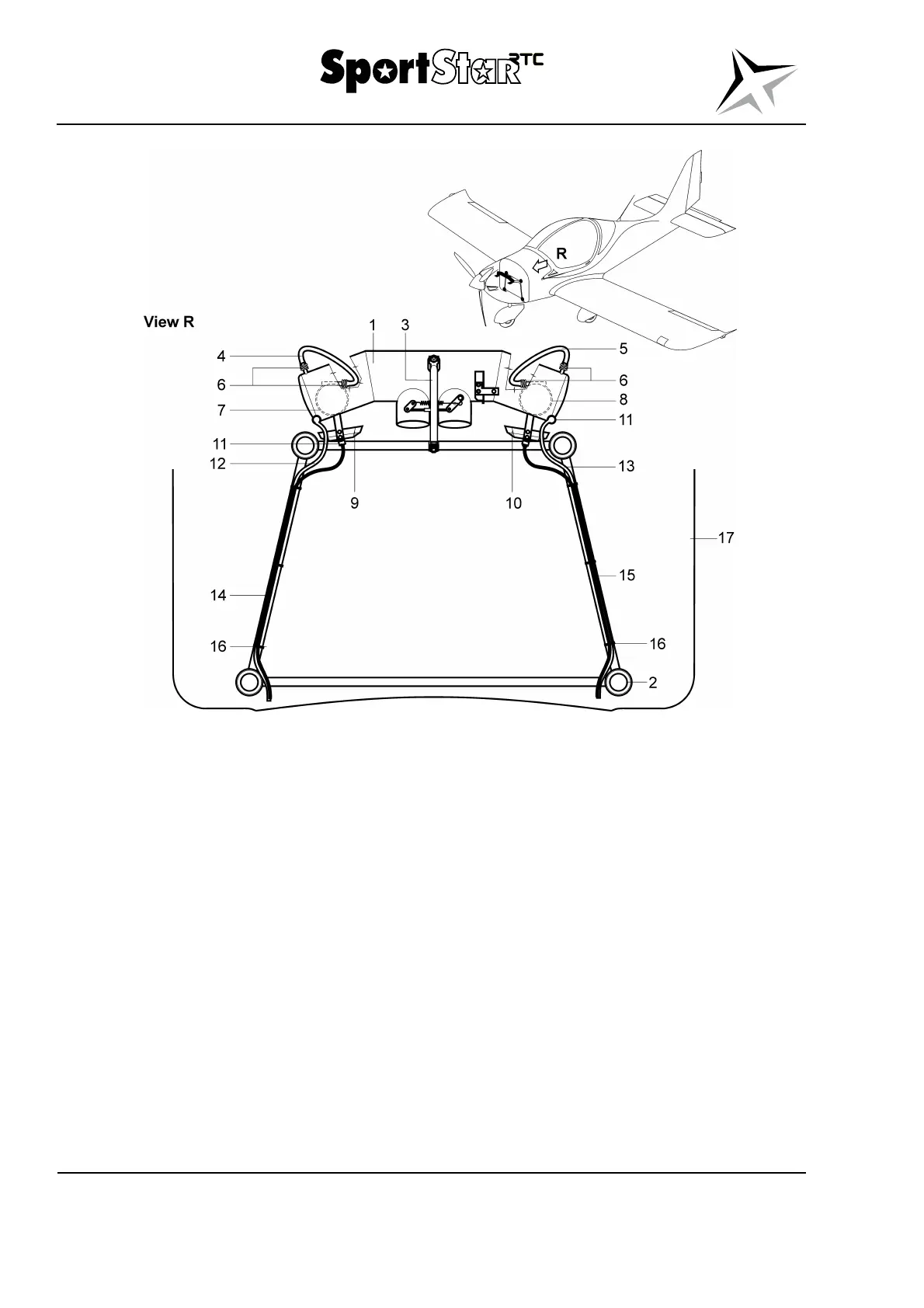

Legend to Fig. 71–9
1 Airbox 9 Condensate sump of L carburettor
2 Engine mount 10 Condensate sump of R carburettor
3 Strut 11 Cobra clamp
4 Venting hose of L carburettor 12 Left drain hose of airbox
5 Venting hose of R carburettor 13 Right drain hose of airbox
6 Lockwire 14 Left drain hose of condensate sump
7 Carburettor L 15 Right drain hose of condensate sump
8 Carburettor R 16 Cable tie
Fig. 71-9 Engine drains – removal / installation
