MAINTENANCE MANUAL
ERTC022-10-AS
Effectivity: All
79-10
Page 79-7
2017-12-22
Edition 2 | Rev. 0

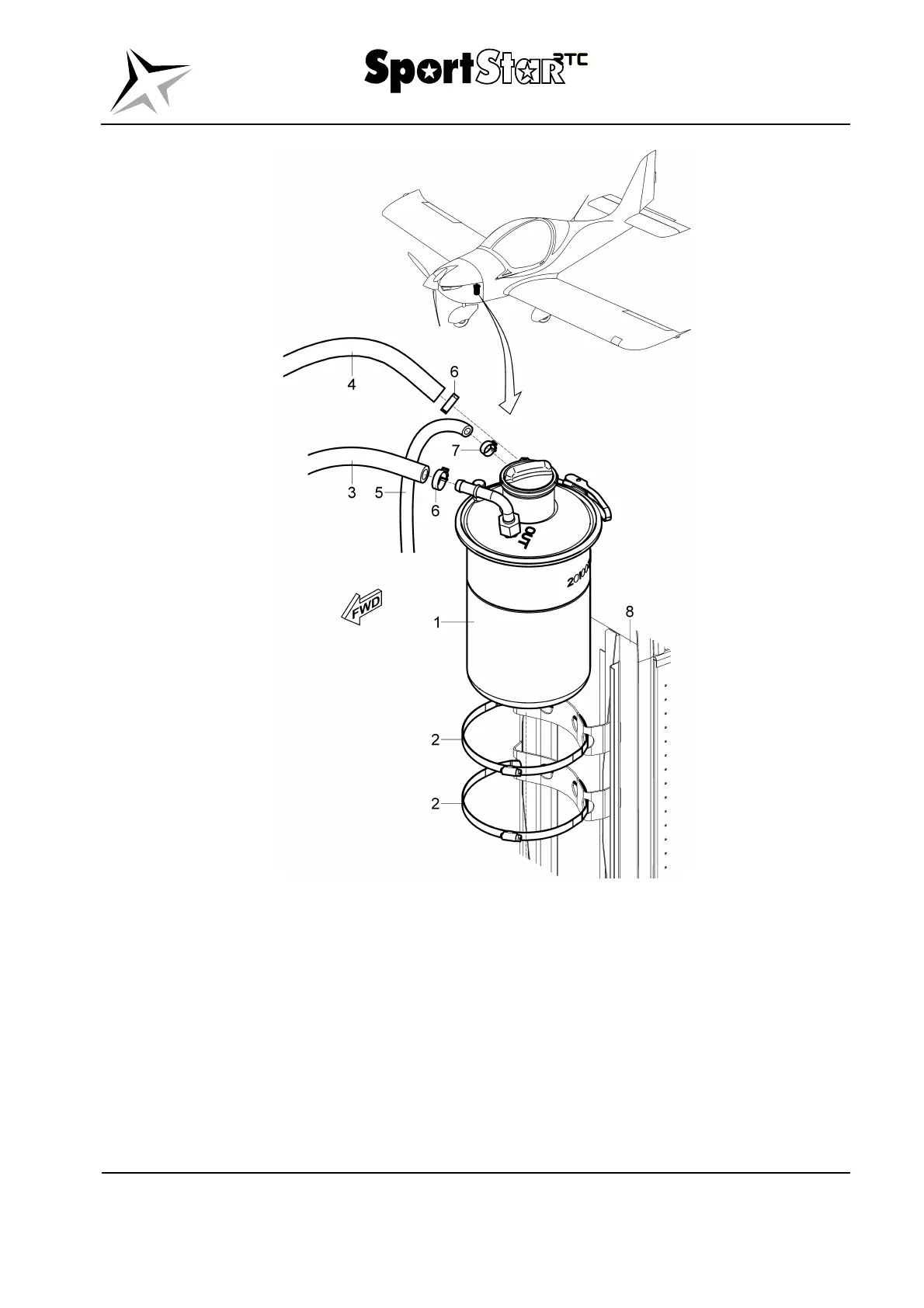

Legend to Fig. 79-2
1 Oil tank 5 Venting hose
2 Clamp 140-160 6 Clamp Rotax 853725
3 Hose to oil pump 7 Clamp 14/7
4 Return hose from engine 8 Firewall
Fig. 79-2 Oil tank – removal / installation
