Evector SportStar RTC - Page 82

ERTC022-10-AS
MAINTENANCE MANUAL
11-30
Page 11-14
2019-03-22
Effectivity: All
Edition 2 | Rev. 1
SERIAL
NO.

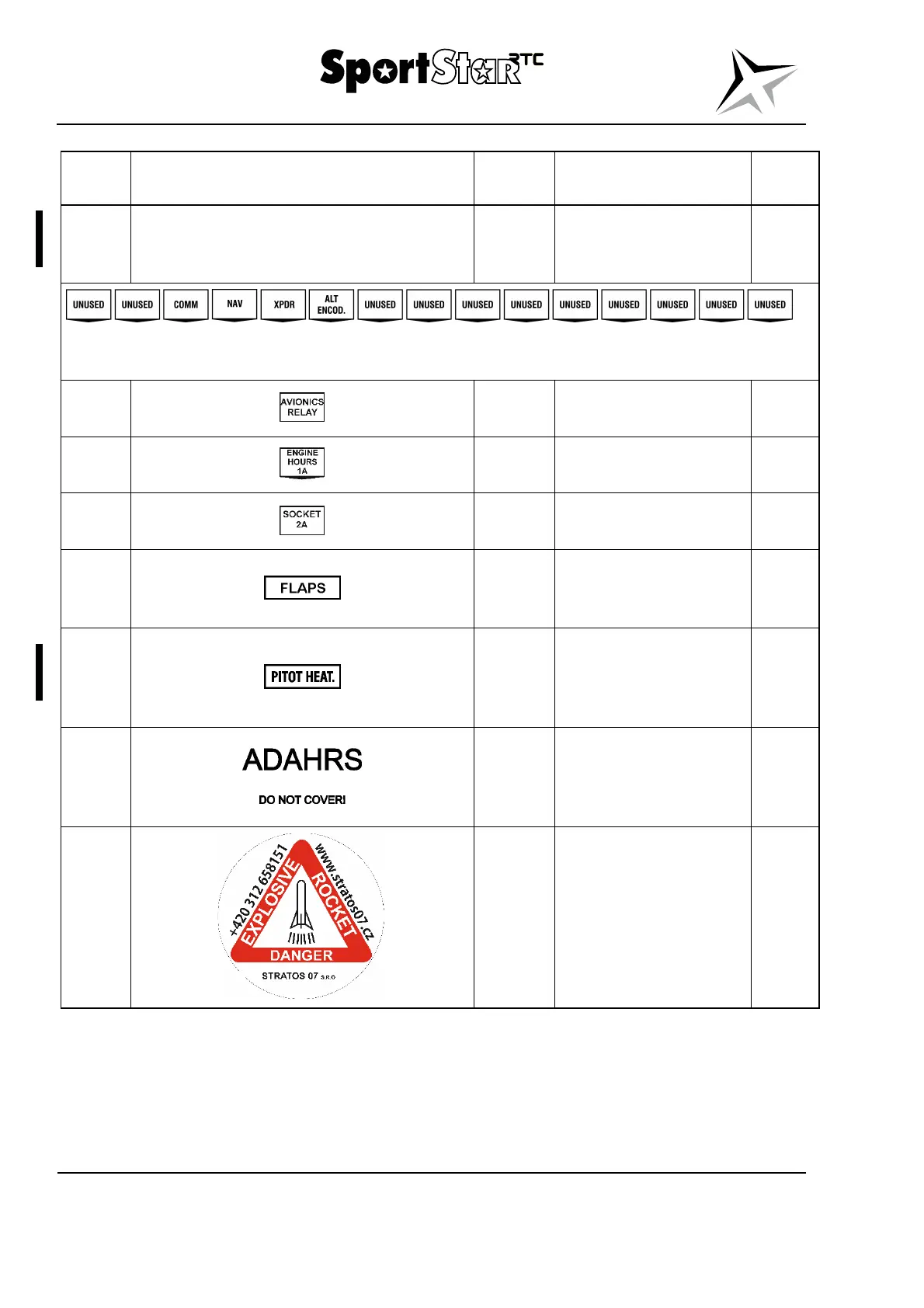

PLACARD COLOUR LOCATION FIG.
39.
Black /
white
R part of the instrument
panel at circuit
breakers.
11-2
NOTE: The above specified layout of the placards applies to the standard design
of the airplane, it may vary depending on the installed equipment.
40.
Black
Relay behind the
instrument panel.
-
41.
Black
Fuse holder behind the
instrument panel.
-
42.
Black
Fuse holder behind the
instrument panel.
-
43.
Black
L part of the instrument
panel at the signalling
light of the flaps.
11-2
44.
Black /
white
L part of the instrument
panel at the signalling
light of the pitot tube
heating.
11-2
45.
It
depends
on the
padding
Baggage compartment
on the cover (inscription
is embroidered on the
padding).
11-2
46.
Red
Rocket of the parachute
rescue system.
11-2
