Commissioning
MIG/MAG welding
100 Item No.: 099-004833-EWM01
6.8.1 Intermediate tube package connection
6.8.1.1 Welding machine

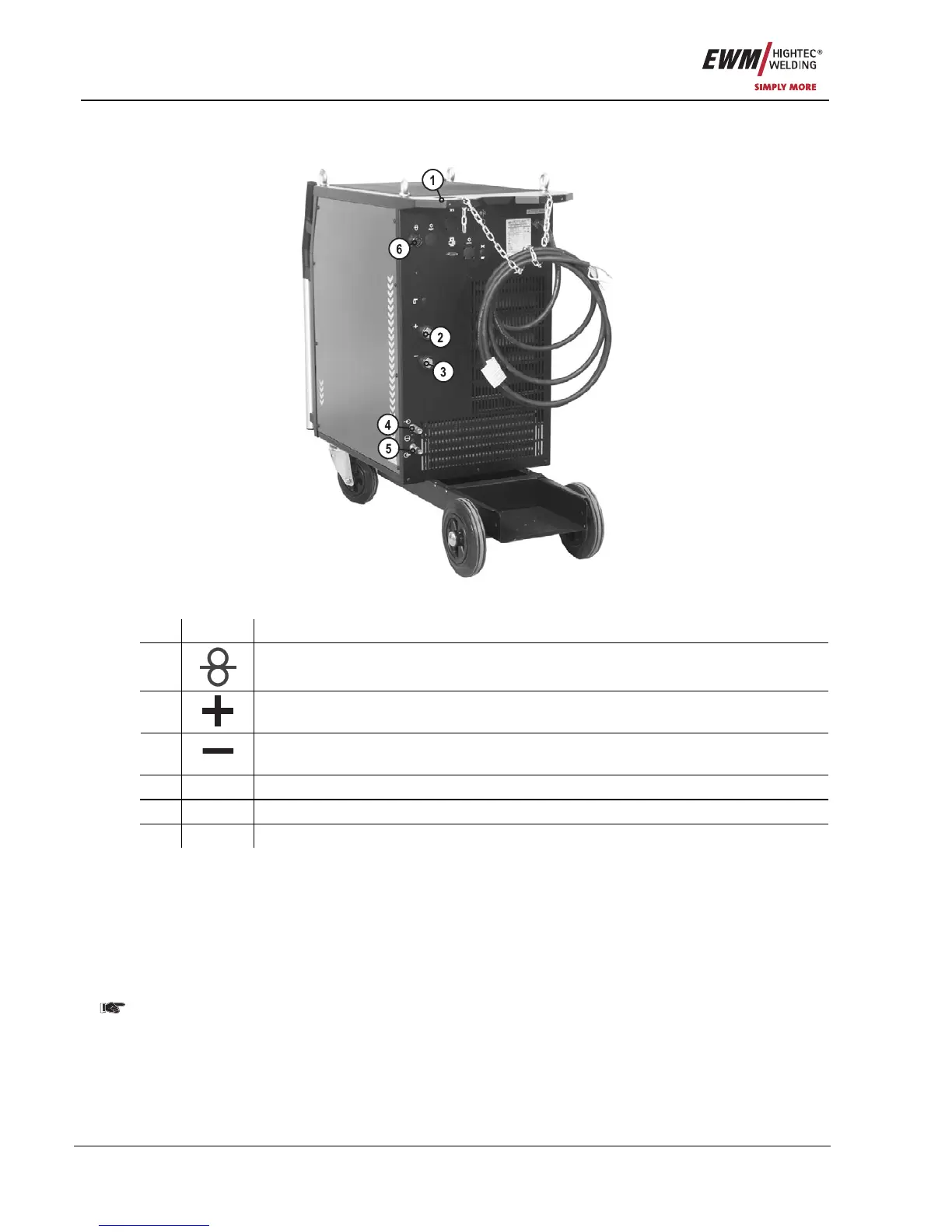

Figure 6-2
Item Symbol Description 0
1
7-pole connection socket (digital)
Wire feed unit connection
Connection socket, "+" welding current 2
• MIG/MAG welding: Welding current to "WF" central connection/torch
Connection socket, "-" welding current 3
• MIG/MAG cored wire welding: Welding current to "WF" central connection/torch
4 Rapid-action closure coupling, red (coolant return)
5 Rapid-action closure coupling, blue (coolant supply)
6
Intermediate tube package strain relief
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
• Insert the welding current cable plug into the relevant welding current connection socket and lock by
turning to the right:
− MIG/MAG cored wire: Welding current "-" connection socket
− MIG/MAG standard: Welding current "+" connection socket
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
Only for machines with integrated cooling module:
• Lock connecting nipples of the cooling water tubes into the corresponding rapid-action closure
couplings:
Return line red to rapid-action closure coupling, red (coolant return) and
supply line blue to rapid-action closure coupling, blue (coolant supply).
