Commissioning
TIG welding
108 Item No.: 099-004833-EWM01

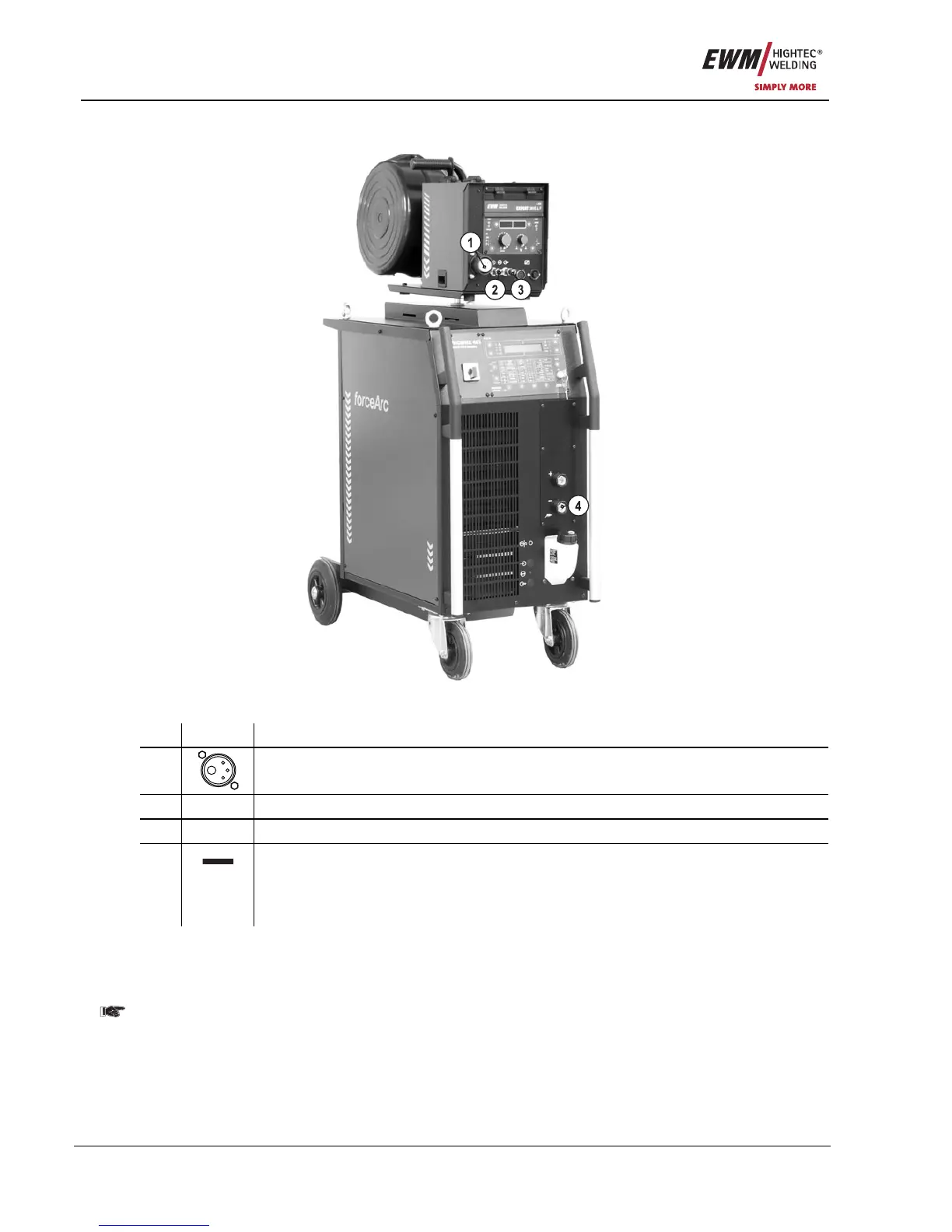

6.9.1 Welding torch connection
Figure 6-11
Item Symbol Description 0
1
Euro-central connector (welding torch connection)
Welding current, shielding gas and torch trigger included
2 Rapid-action closure coupling, blue (coolant supply)
3 Rapid-action closure coupling, red (coolant return)
Connection socket, "-" welding current
• MIG/MAG welding: Workpiece connection
• TIG welding: Welding current connection for welding torch
4
• MMA welding: Workpiece or electrode holder connection
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the welding current plug on the combi torch into the "-" welding current connection socket and
lock by turning to the right.
Only for machines with integrated cooling module:
• Lock connecting nipples of the cooling water tubes into the corresponding rapid-action closure
couplings:
Return line red to rapid-action closure coupling, red (coolant return) and
supply line blue to rapid-action closure coupling, blue (coolant supply).
