Commissioning
TIG welding
Item No.: 099-004833-EWM01 109
6.9.2 Connection for workpiece lead

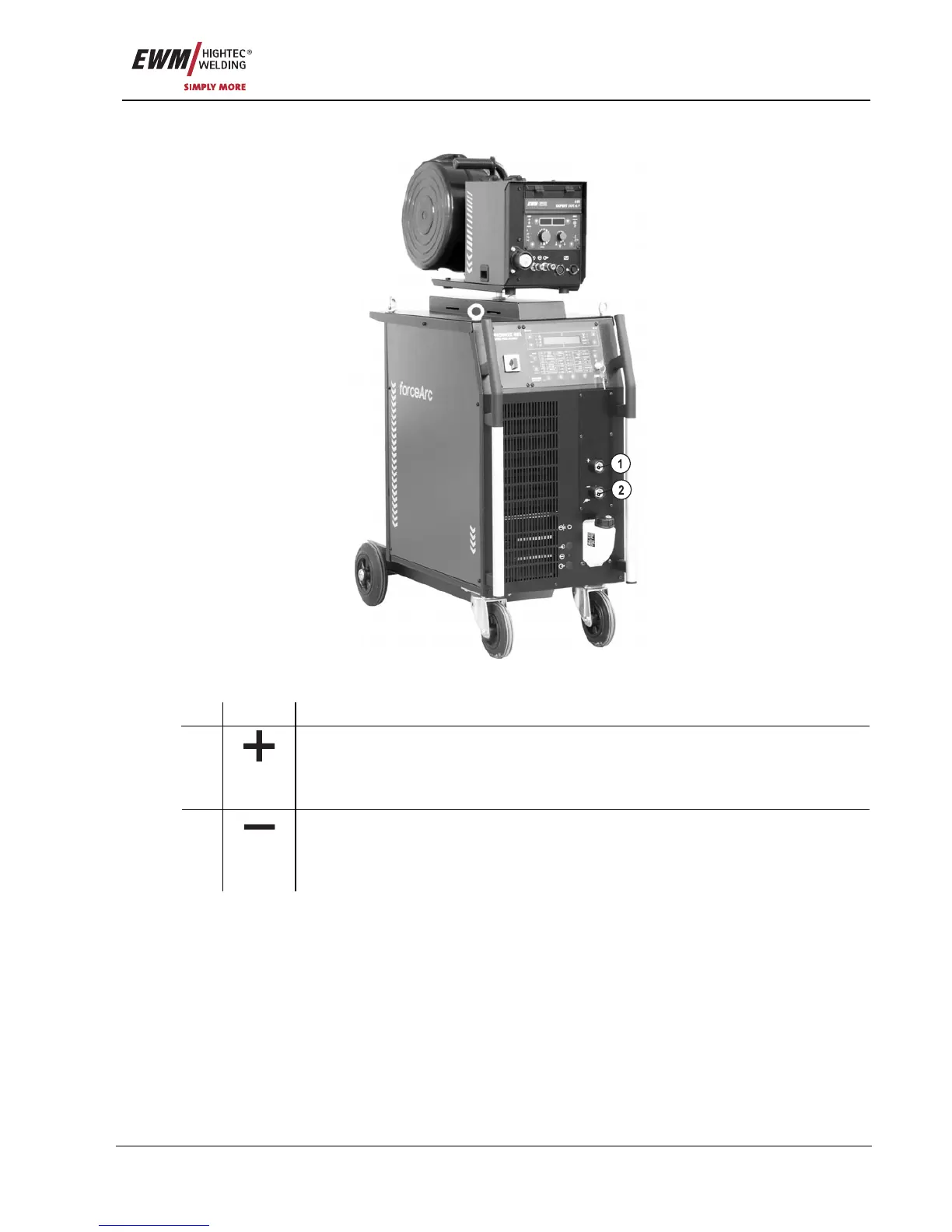

Figure 6-12
Item Symbol Description 0
Connection socket, "+" welding current
• MIG/MAG cored wire welding: Workpiece connection
• TIG welding: Workpiece connection
1
• MMA welding: Workpiece or electrode holder connection
Connection socket, "-" welding current
• MIG/MAG welding: Workpiece connection
• TIG welding: Welding current connection for welding torch
2
• MMA welding: Workpiece or electrode holder connection
• Insert cable plug on the workpiece lead into the welding current socket “+” and lock by turning to the
right.
