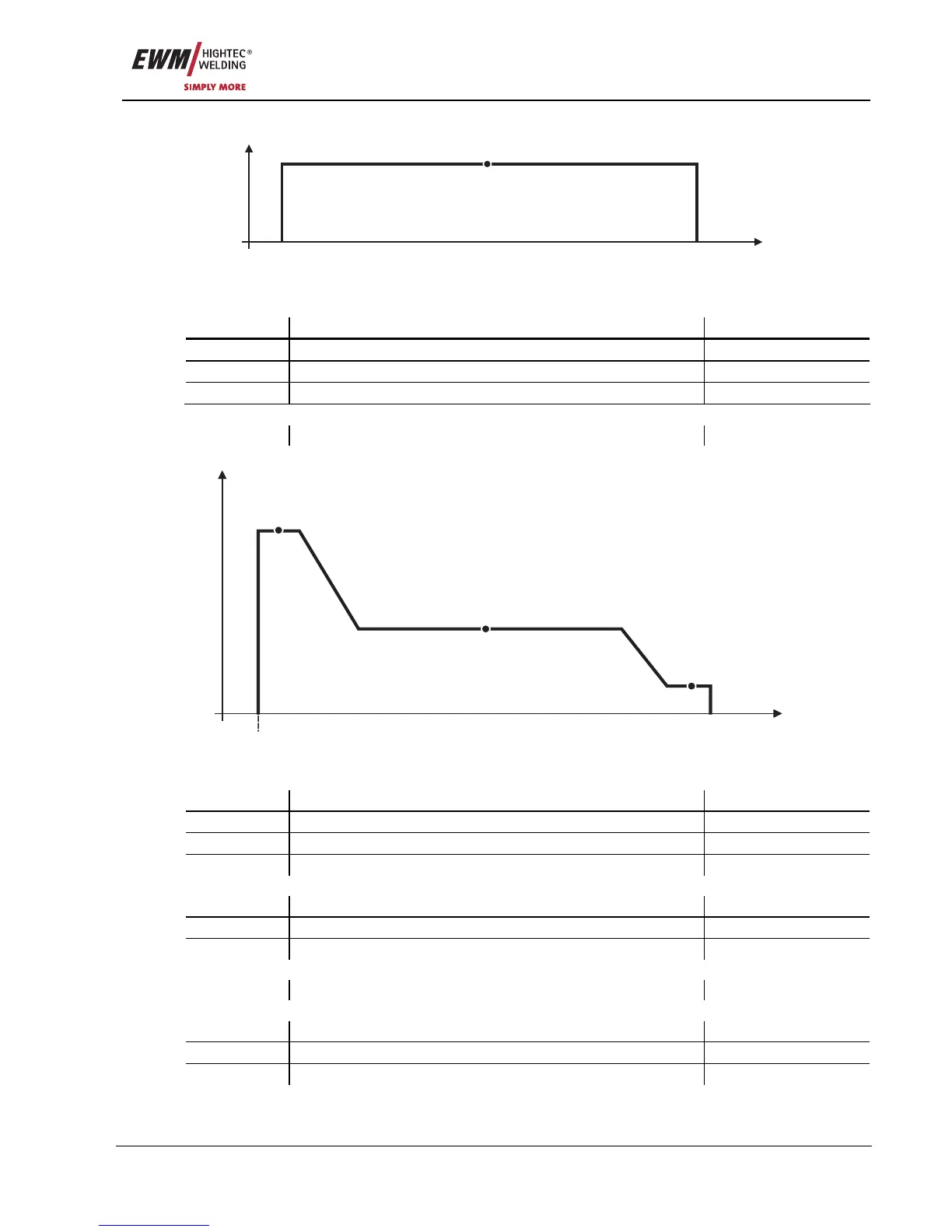

5.2.7.5 Example, tack welding (non-latched)
t
I
P
A
Figure 5-22
Basic parameters
Display Meaning / explanation Setting range
GASstr Gas pre-flow time 0.0s to 20.0s
GASend: Gas post-flow time 0.0s to 20s
RUECK Wire burn-back length 2 to 500
"P
A
" main program
Setting the wire speed
5.2.7.6 Example, aluminium tack welding (non-latched special)
t
I
P
A
P
END
P
START
Figure 5-23
Basic parameters
Display Meaning / explanation Setting range
GASstr Gas pre-flow time 0.0s to 20.0s
GASend: Gas post-flow time 0.0s to 20s
RUECK Wire burn-back length 2 to 500
"P
START
" start program
DVstart Wire speed 0% to 200%
ustart Arc length correction -9.9V to +9.9V
tstart Duration 0.0s to 20s
"P
A
" main program
Setting the wire speed
"P
END
" end-crater program
DVend Wire speed 0% to 200%
Uend Arc length correction -9.9V to +9.9V
tend Duration 0.0s to 20s
