6.8.3 Connection for workpiece lead

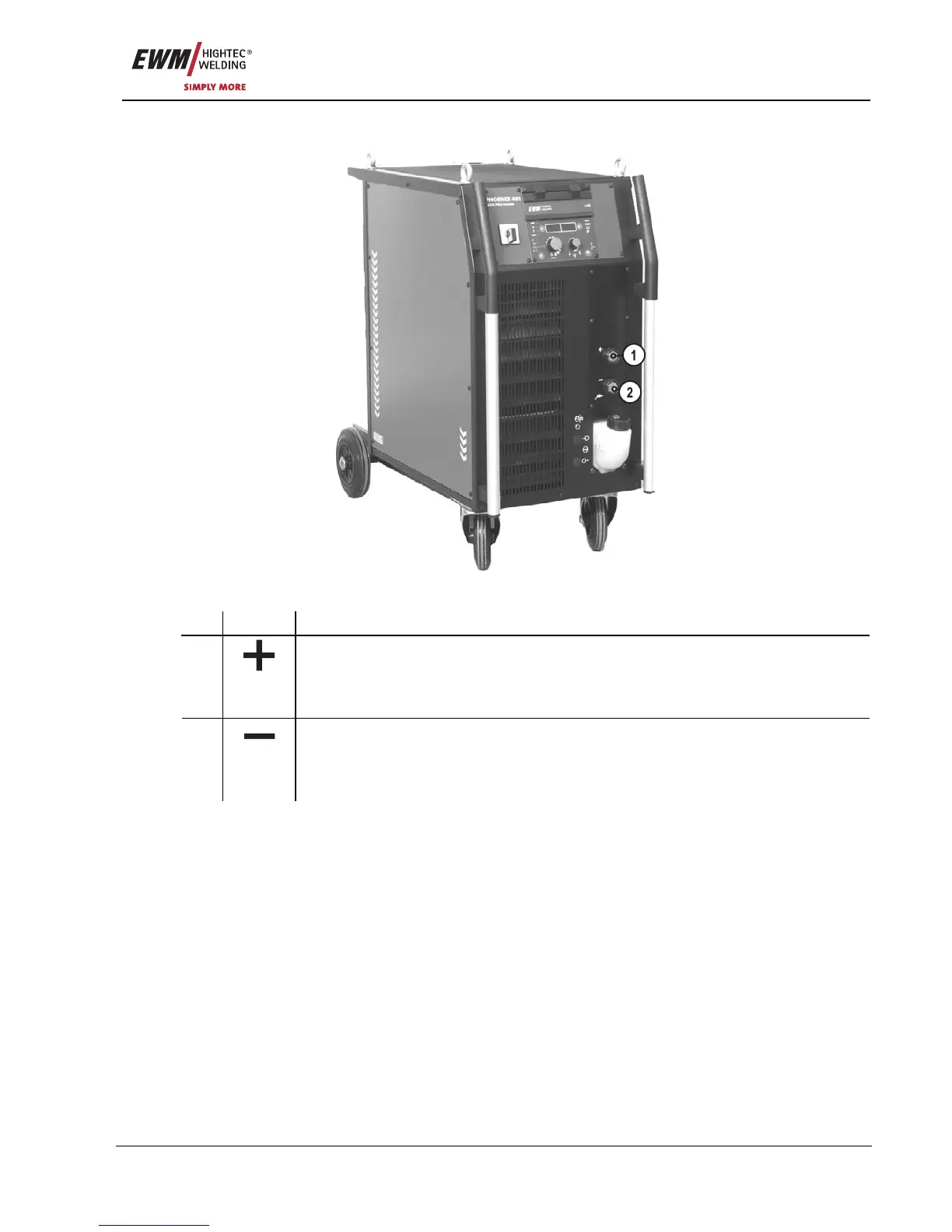

Figure 6-5
Item Symbol Description 0
Connection socket, "+" welding current
• MIG/MAG cored wire welding: Workpiece connection
• TIG welding: Workpiece connection
1
• MMA welding: Workpiece or electrode holder connection
Connection socket, "-" welding current
• MIG/MAG welding: Workpiece connection
• TIG welding: Welding current connection for welding torch
2
• MMA welding: Workpiece or electrode holder connection
• Insert the workpiece lead connector plug into the welding current connection socket and lock by
turning to the right:
− MIG/MAG cored wire: Welding current "+" connection socket
− MIG/MAG standard: Welding current "-" connection socket
