Machine description
PHOENIX DRIVE 4; PHOENIX EXPERT DRIVE 4
Item No.: 099-004833-EWM01 23
4.3 PHOENIX DRIVE 4; PHOENIX EXPERT DRIVE 4
4.3.1 Front view

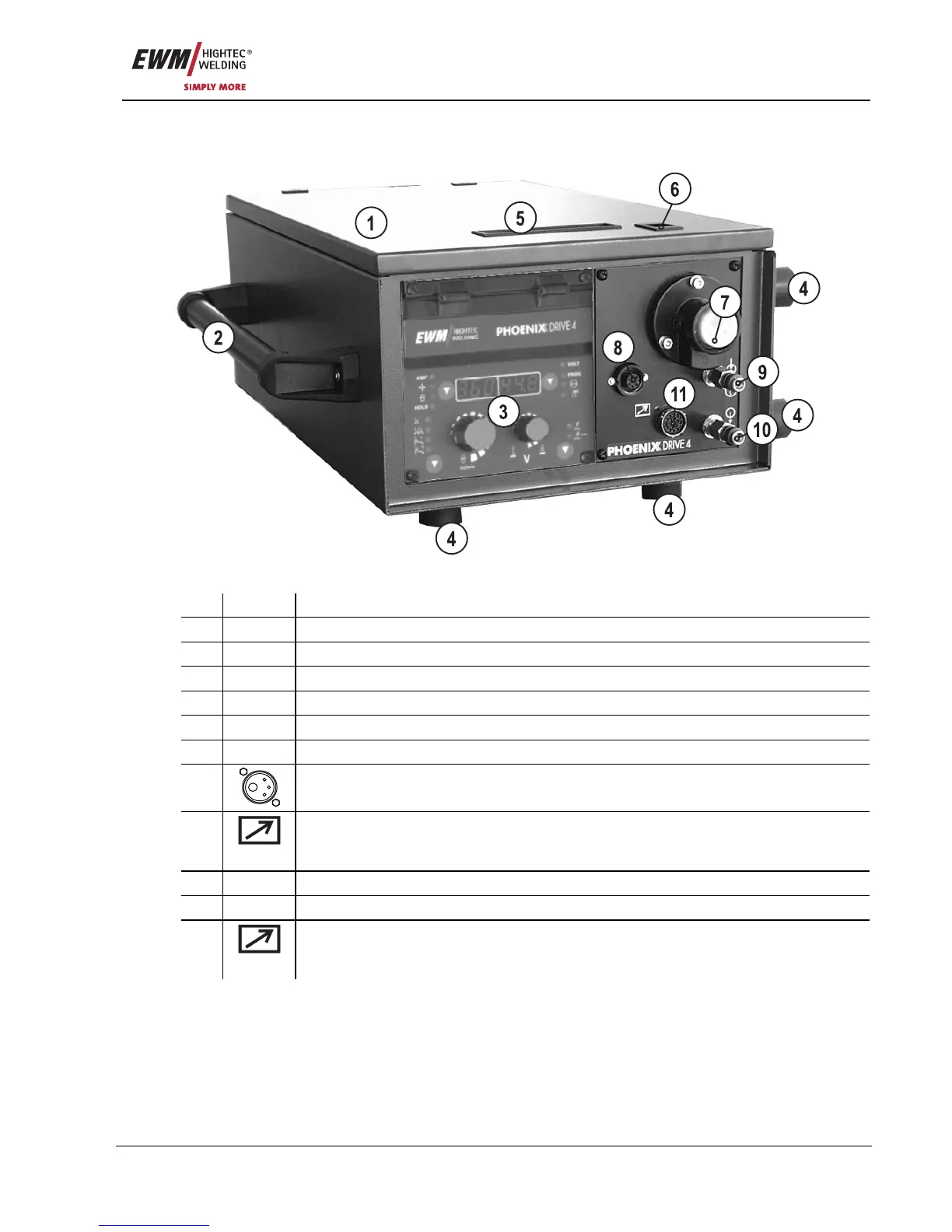

Figure 4-5
Item Symbol Description 0
1 Cover for wire delivery unit and operating elements
2 Transport bar
3 Control / Operating elements (see chapter Function specification)
4
Rubber feet
5 Recessed grip (catch) for opening the cover
6 Slide latch, lock for the protective cap
7
Euro-central connector (welding torch connection)
Welding current, shielding gas and torch trigger included
8
7-pole connection socket (digital)
For connecting digital accessory components (remote control, welding torch control
lead, etc.)
9 Rapid-action closure coupling, red (coolant return)
10 Rapid-action closure coupling, blue (coolant supply)
11
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, intermediate drive, etc.)
