Machine description
PHOENIX 301; 351; 421; 521 EXPERT forceArc
Item No.: 099-004833-EWM01 17

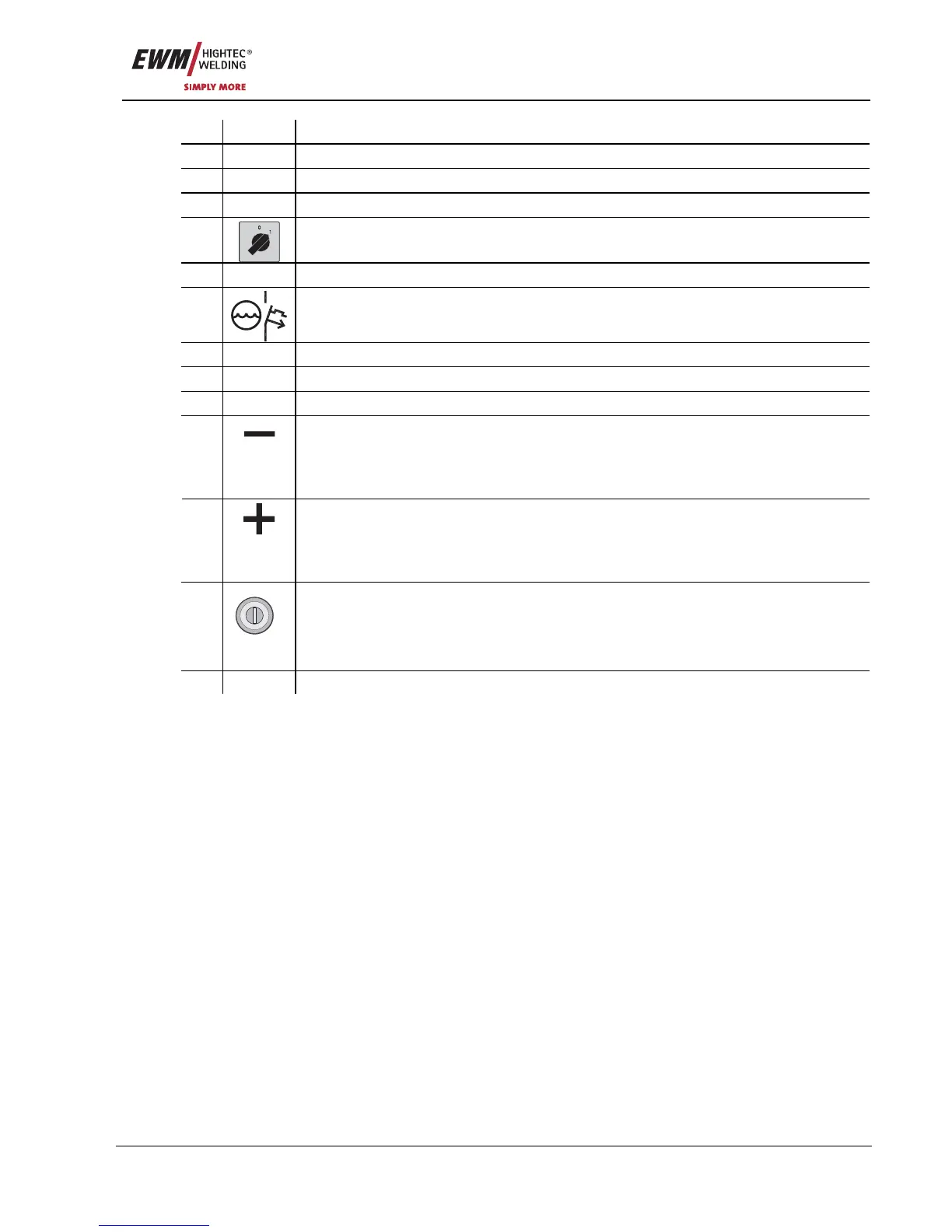

Item Symbol Description 0
1
Wire feed unit
2
Lifting lug
3 Carrying handle
4
Main switch, machine on/off
5 Cooling air inlet
6
“Automatic cut-out of coolant pump” key button
(press to reset a triggered fuse)
7 Conveyor rolls, guide castors
8 Coolant tank
9
Coolant tank cap
Connection socket, "-" welding current
• MIG/MAG welding: Workpiece connection
• TIG welding: Welding current connection for welding torch
10
• MMA welding: Workpiece or electrode holder connection
Connection socket, "+" welding current
• MIG/MAG cored wire welding: Workpiece connection
• TIG welding: Workpiece connection
11
• MMA welding: Workpiece or electrode holder connection
12
0
1
Key switch for protection against unauthorised use
Position “1” > changes possible,
Position “0” > changes not possible.
Please take note of chapter “Key switch”
13 Control / Operating elements (see chapter Function specification)
