EWM PHOENIX 421 EXPERT forceArc - 6.10.1 Connecting the Electrode Holder and Workpiece Lead

Commissioning
MMA welding
Item No.: 099-004833-EWM01 111
6.10.1 Connecting the electrode holder and workpiece lead

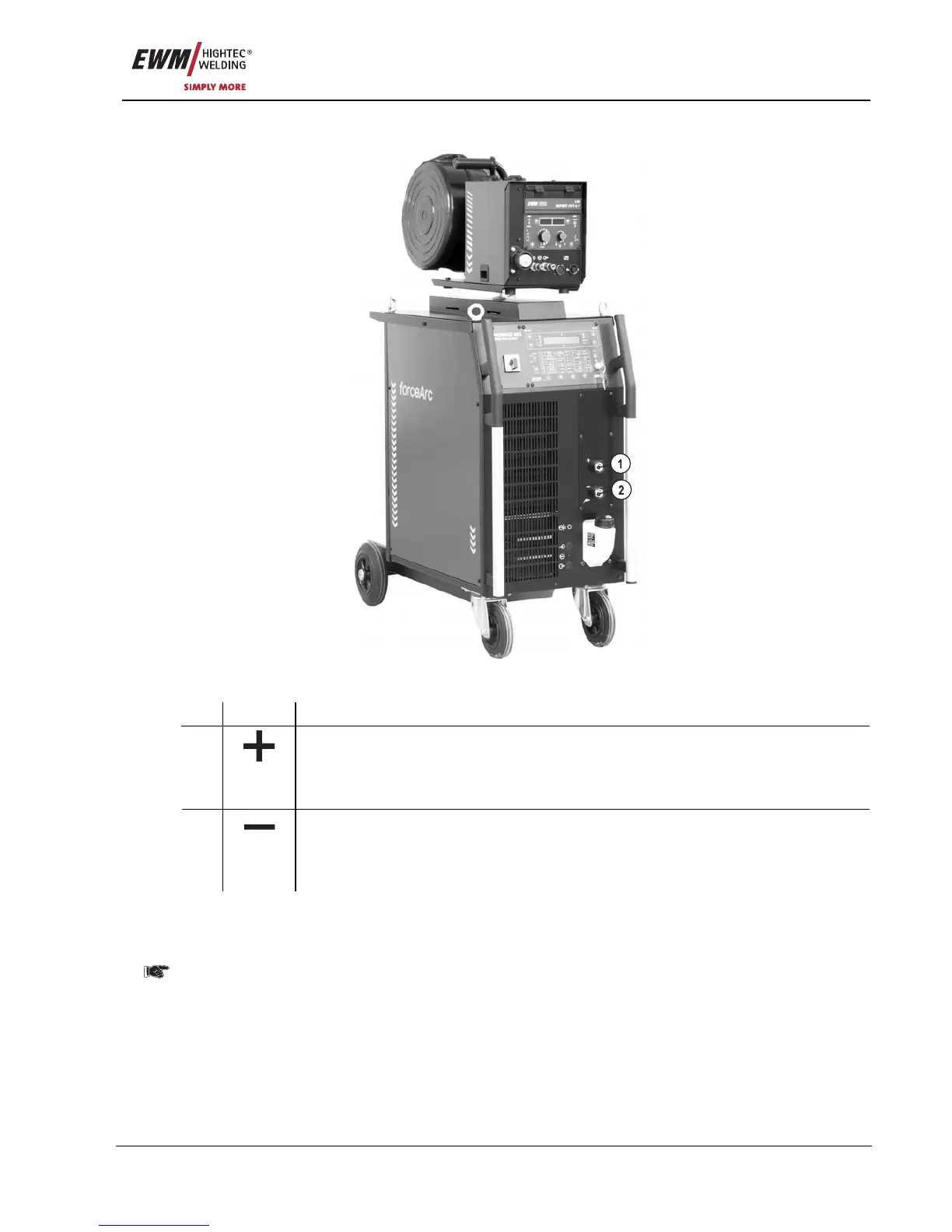

Figure 6-13
Item Symbol Description 0
Connection socket, "+" welding current
• MIG/MAG cored wire welding: Workpiece connection
• TIG welding: Workpiece connection
1
• MMA welding: Workpiece or electrode holder connection
Connection socket, "-" welding current
• MIG/MAG welding: Workpiece connection
• TIG welding: Welding current connection for welding torch
2
• MMA welding: Workpiece or electrode holder connection
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
