Machine description
PHOENIX DRIVE 4L; PHOENIX EXPERT DRIVE 4L
22 Item No.: 099-004833-EWM01

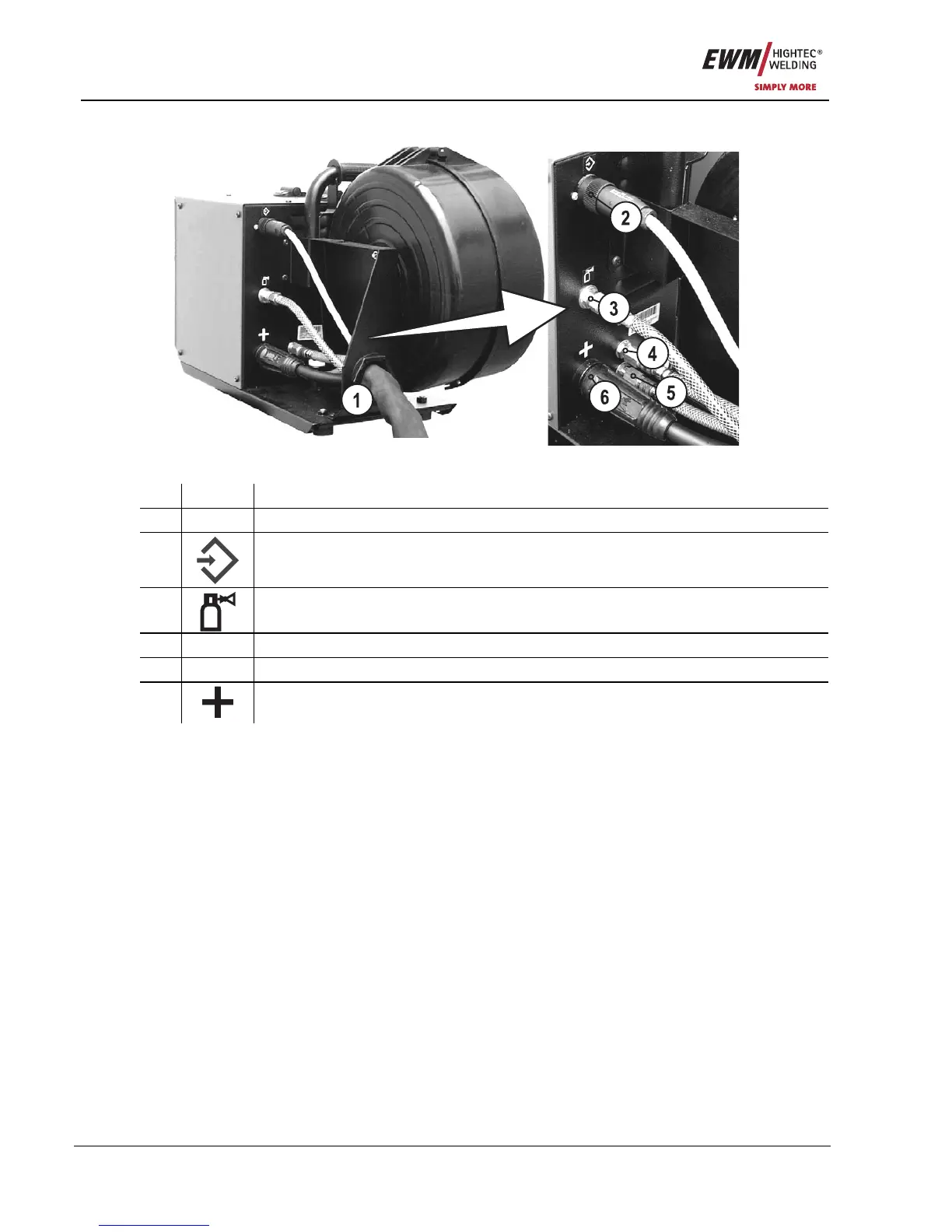

4.2.2 Rear view
Figure 4-4
Item Symbol Description 0
1
Intermediate tube package strain relief
2
7-pole connection socket (digital)
• Control lead for wire feed unit
3
Connecting nipple G¼, shielding gas connection
4 Rapid-action closure coupling, red (coolant return)
5 Rapid-action closure coupling, blue (coolant supply)
6
Connector plug, welding current "+"
Welding current connection on wire feed unit
