Machine description
PHOENIX 301; 351; 421; 521 EXPERT forceArc
Item No.: 099-004833-EWM01 19

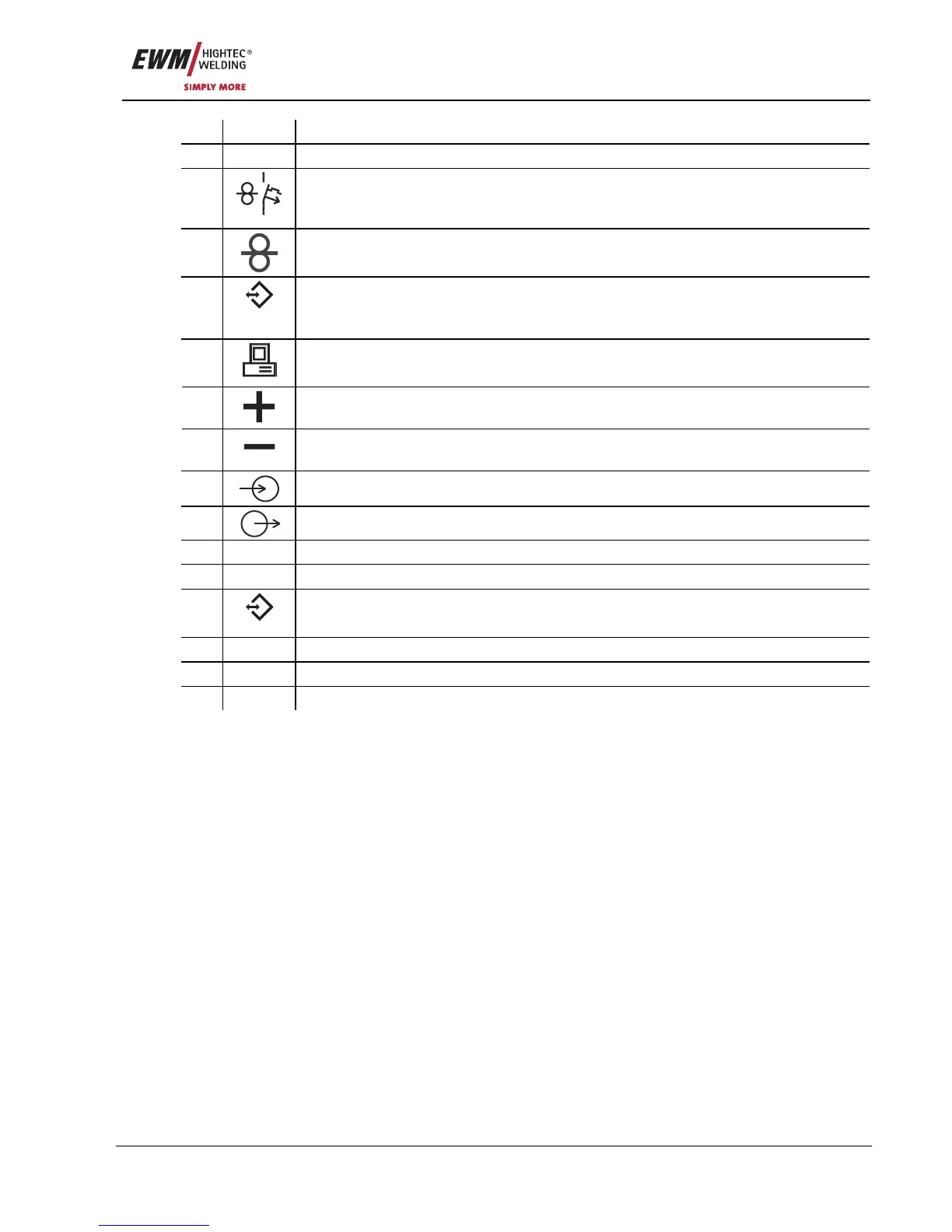

Item Symbol Description 0
1
Lifting lug
2
42V/4A
"Automatic cutout" key button
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
3
7-pole connection socket (digital)
Wire feed unit connection
4
digital
7-pole connection socket (digital)
For connecting digital accessory components (documentation interface, robot interface
or remote control, etc.).
5
PC INT
PC interface, serial (D-SUB connection socket, 9-pole)
Connection socket, "+" welding current 6
• MIG/MAG welding: Welding current to "WF" central connection/torch
Connection socket, "-" welding current 7
• MIG/MAG cored wire welding: Welding current to "WF" central connection/torch
8
Coolant return from the DV device (red rapid-action closure coupling)
9
Coolant water supply to the DV device (blue rapid-action closure coupling)
10 Conveyor rolls, fixed castors
11 Strain relief with mains connection cable
12
analog
Automation interface, 19-pole (analogue)
(see Function Specification chapter)
13 Safety chain
14 Cooling air outlet
15 Cylinder bracket
