EXFO MAX-890 - Signaling Bits

Test Functions
MaxTester 367
Pointer Adjustment

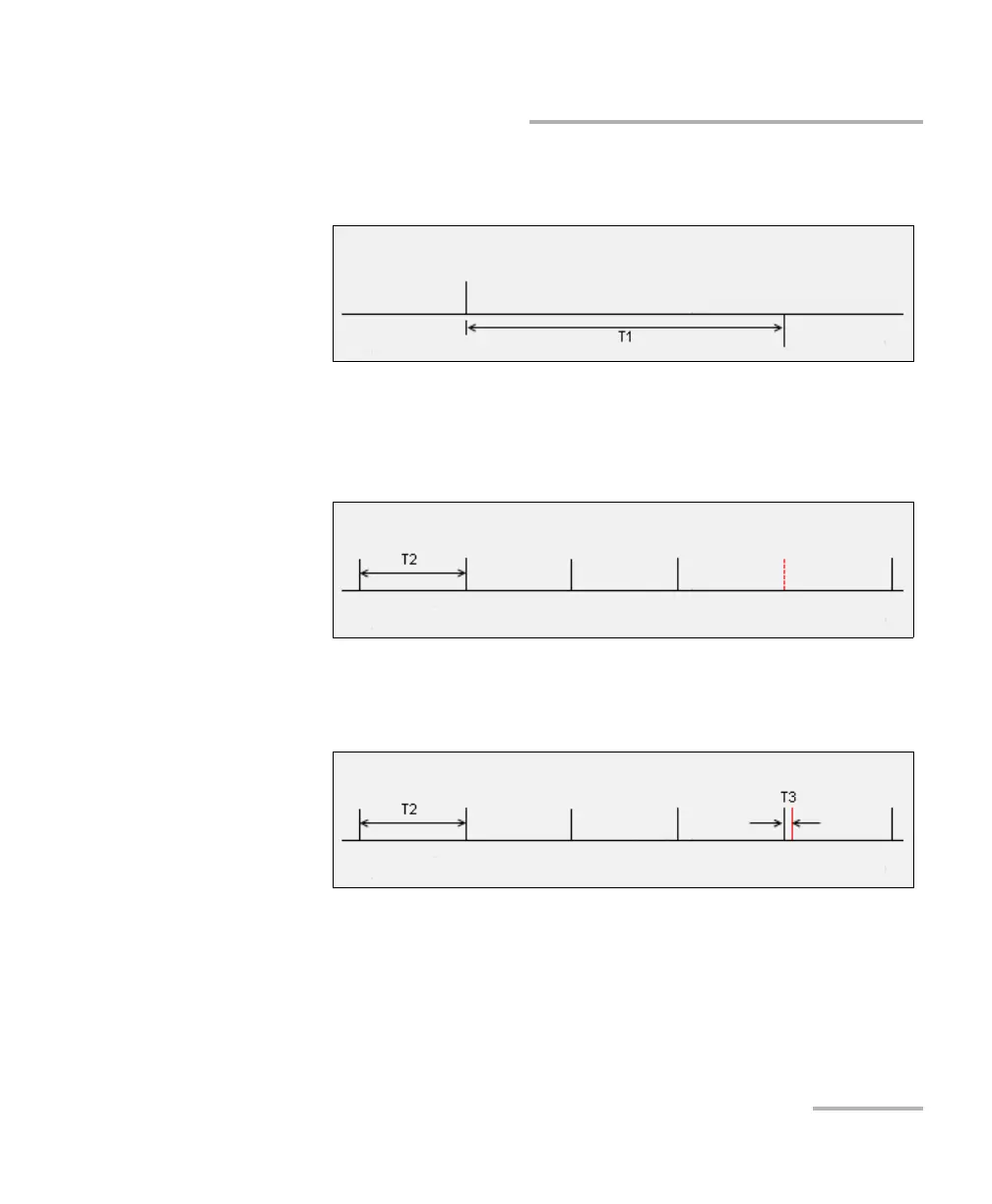

 T1 (s) represents the interval between two pointer events.
Example of Single pointer of opposite polarity sequence.
 T2 (s) represents the interval between successions of pointer
events.
Example of Regular pointers with one missing pointer
sequence.
 T3 (ms) represents the interval between back to back pointer
events.
Example of Regular pointers plus one double pointer sequence.
