Selecting and Starting a Test
MaxTester 57
Ethernet Test Applications
Ethernet Test Applications
To select, configure, and start an Ethernet test:
1. From the test menu, tap Setup.
2. From the Test Applications tab, under Ethernet, tap a test icon.
3. From the Test Configurator tab configure the interface structure and
its parameters.
3a. Tap the Modify Structure button to set the basic structure of the
test such as the interface/rate, connector, etc. (refer to Modify
Structure Button on page 65).
3b. For QSFP interface, check for the optical validation check mark
indicating that the transceiver matches the configured
interface/rate (refer to Physical Interface Port - Test Configurator
Overview on page 61).
3c. Tap the interface block to configure the interface parameters
(refer to page 59). For Dual Port topology, there is an interface
block for each port. Ensure that the link is up and the power level
(when supported) is present in the status bar before proceeding
to the next step (refer to Status Bar on page 20).

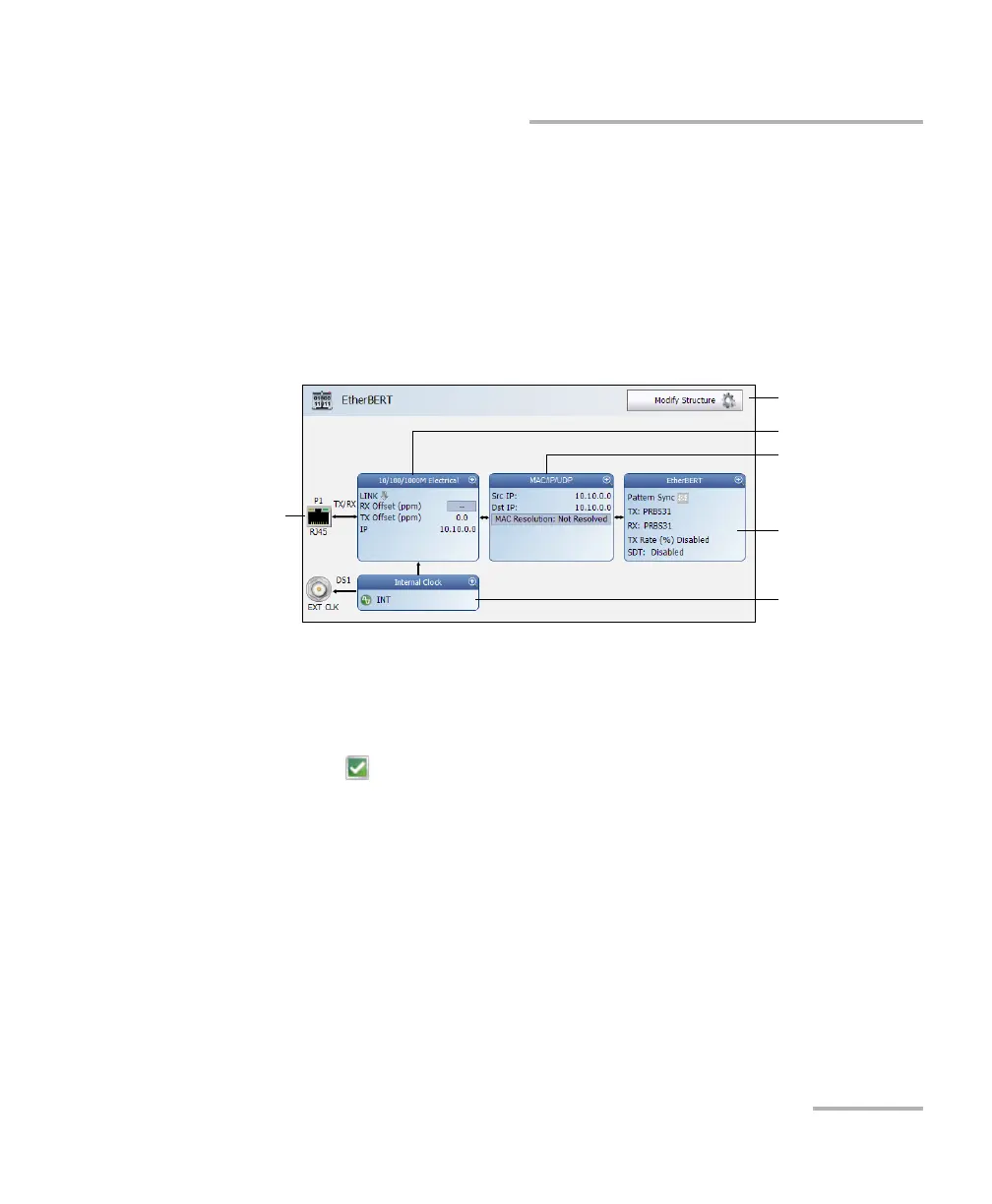

Modify Structure
Protocol Block
Te s t B l o c k
Clock Block
Interface Block
Physical
Interface Port
To Next Page
