TCP/IP Panel
The TCP/IP panel connects PCS to a specific device through Ethernet.

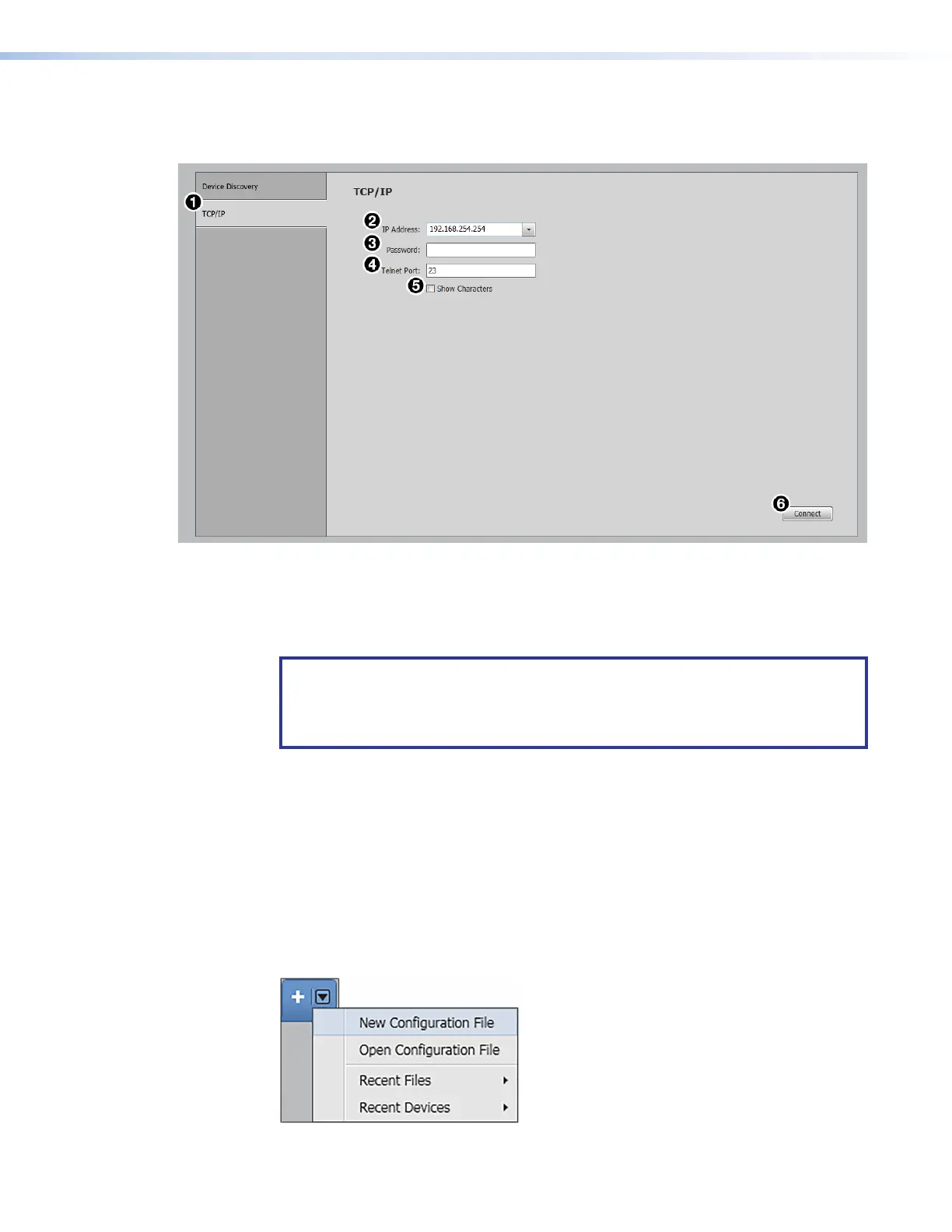

Figure 36. TCP/IP Panel
1. Click the TCP/IP tab (see figure 36,
1
).
2. In the IP Address field (
2
), enter the IP address of the desired device.
3. If required, enter the device password in the Password field (
3
).
NOTES:
• The factory configured passwords for all accounts on this device have been set to the
device serial number. Passwords are case sensitive.
• Select the Show Characters checkbox (
5
) to display the password characters.
4. In the Telnet Port field (
4
), enter the Telnet port of the desired device.
5. Click the Connect button (
6
). A new device tab opens.
Offline Device Preview
Opening a new device tab for an offline device displays the interface and configuration
options for the chosen model without connecting to it. However, settings cannot be
changed.
To open a scaler device tab:
1. From the Configuration File drop-down menu, select New Configuration File.
Figure 37. Configuration File Drop-Down Menu
