XTP CrossPoint Series • Installation 13
100-240V
50-60Hz
12A MAX
DISCONNECT POWER
CORD BEFORE
SERVICING
1-4 5-8 9-12 13-16
INPUTS
17-2021-24 25-28 29-32 1-45-8 9-12 13-16
OUTPUTS
17-2021-24 25-28 29-32
1591317212529
4812 16 20 24 28 32
15913172125
O
U
T
P
U
T
S
I
N
P
U
T
S
29
4812 16 20 24 28 32
RESET
REMOTE
LAN
RS-232/422
XTP CrossPoint 3200
AB
CDE
F

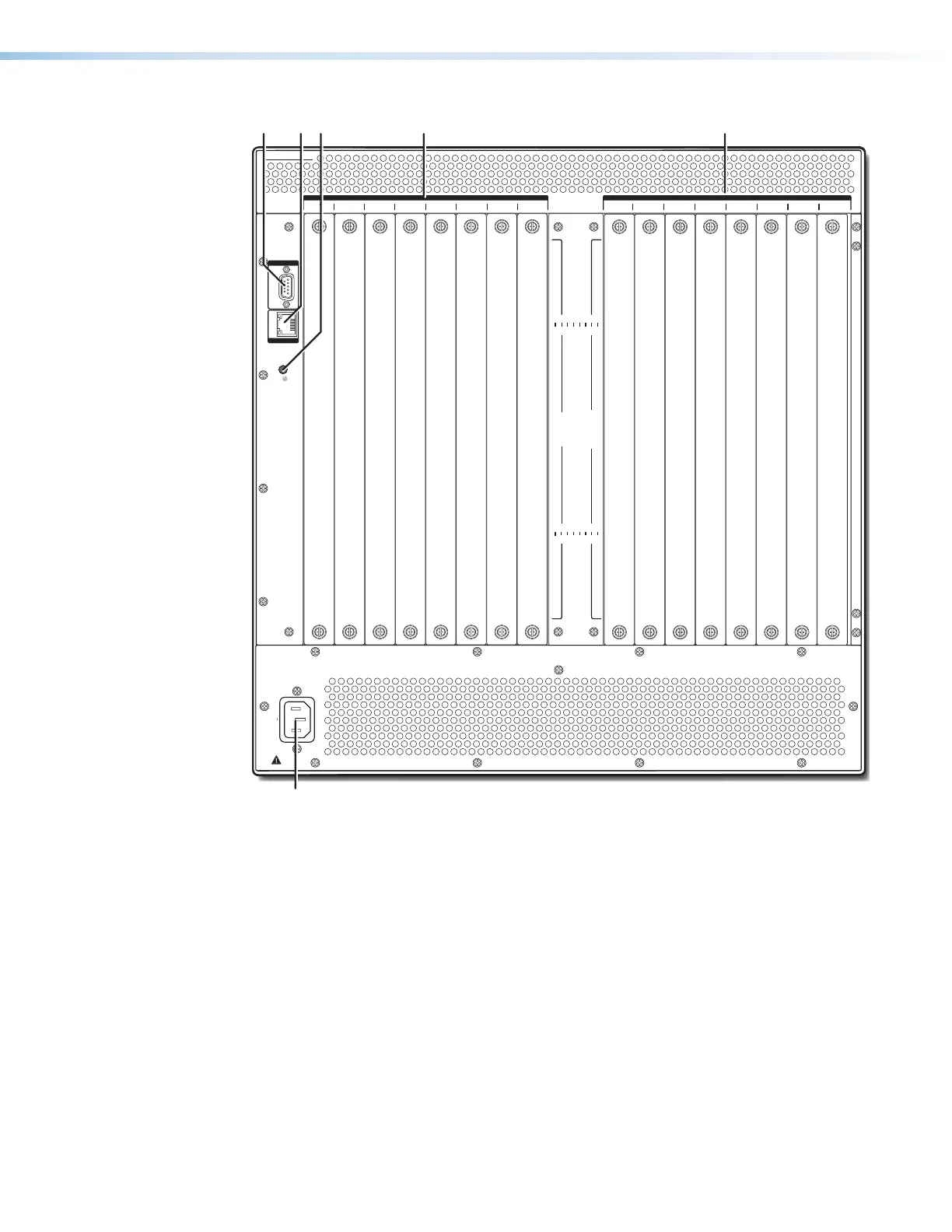

Figure 3. XTP CrossPoint 3200 Matrix Switcher Rear Panel
A
Input boards space (see page 14)
B
Output boards space (see page 17)
C
Remote RS-232/RS-422 port (see page 26)
D
LAN connection (Ethernet connector) (see page 26)
E
Reset button and LED (see page 27)
F
Power connector (see page 27)
