XTP CrossPoint Series • Operation 40

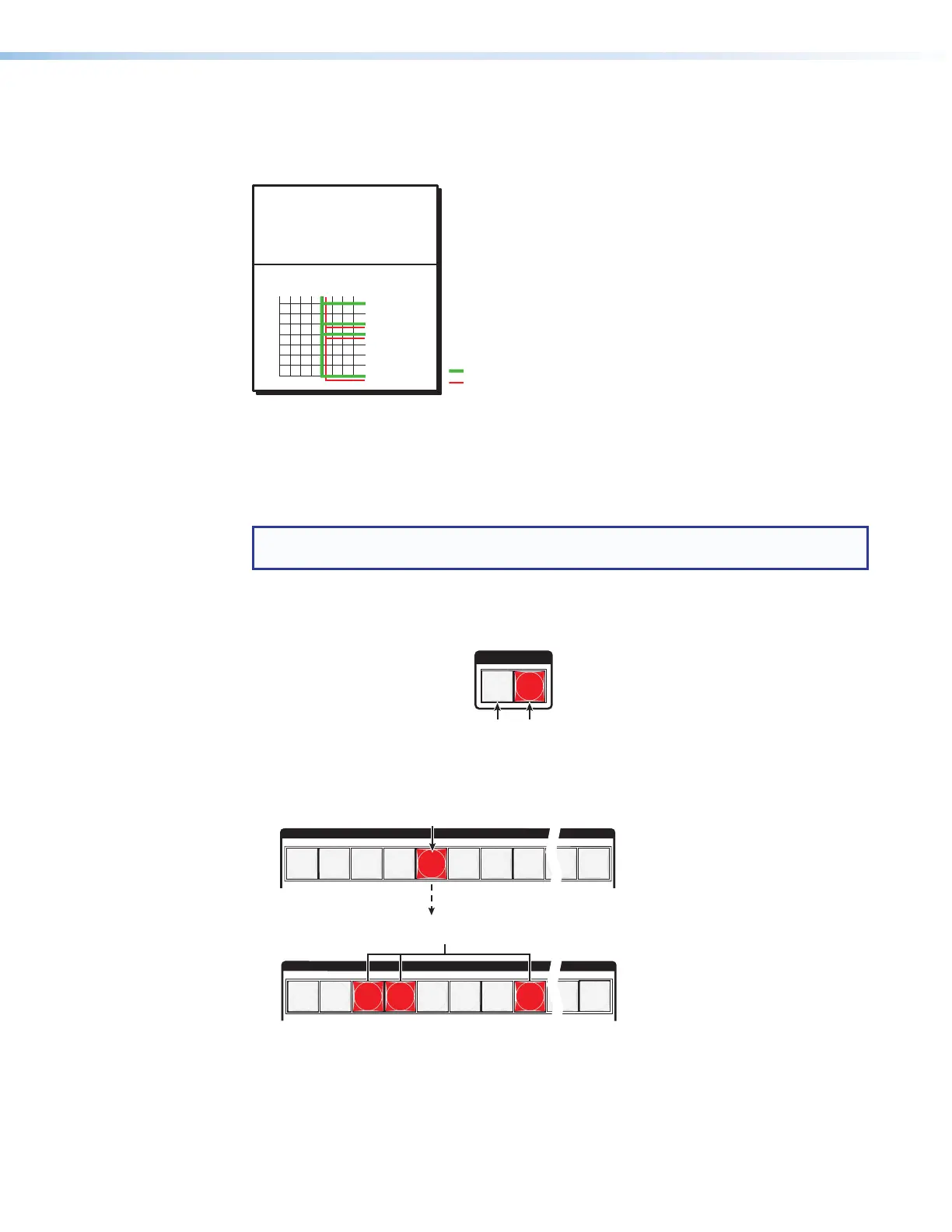

The current configuration (see figure 32) is now:
• Video — Input 5 video is tied to output 1, output 3, output 4, and output 8.
• Audio — Input 5 audio is tied to output 3, output 4, and output 8.
Input 5 video tied
to outputs 1, 3, 4, and 8
Input 5 audio tied
to outputs 3, 4, and 8
Input
Output
1
3
4
8
5
Video
Audio
Figure 32. Final Configuration, Example 2
Example 3: Remove a tie from a set of ties
In the following example, an existing tie is removed from the current configuration. The
example shows the front panel indications that result from your actions.
NOTE: This example assumes that you have performed example 1 on page 38 and
example 2 on page 39.
1. Clear all selections: Press and release Esc.
2. Select audio only for the tie: Press and release Video and Audio as necessary to
light Audio only.
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button is unlit or background illuminated
when deselected.
Press the Audio button to toggle on and off.
The button lights red when selected.
3. Select an input: Press and release Input 5.
INPUTS
1
2
3
4
5
6 7
8
15
16
OUTPUTS
1
2
3
4
5
6 7
8
15
16
The Output 1 button does not light to indicate the tie
created in example 2 because that tie is video only.
The Output 3, Output 4, and Output 8 buttons light
red to indicate the audio ties created in example 1.
Press the button.
The button lights red.
