Fimap IMx - 10 Function Switch IMX BB; 11 Vacuum Motor Contactor IMX BB; 12 Brush Motor Contactor IMX BB

4-25

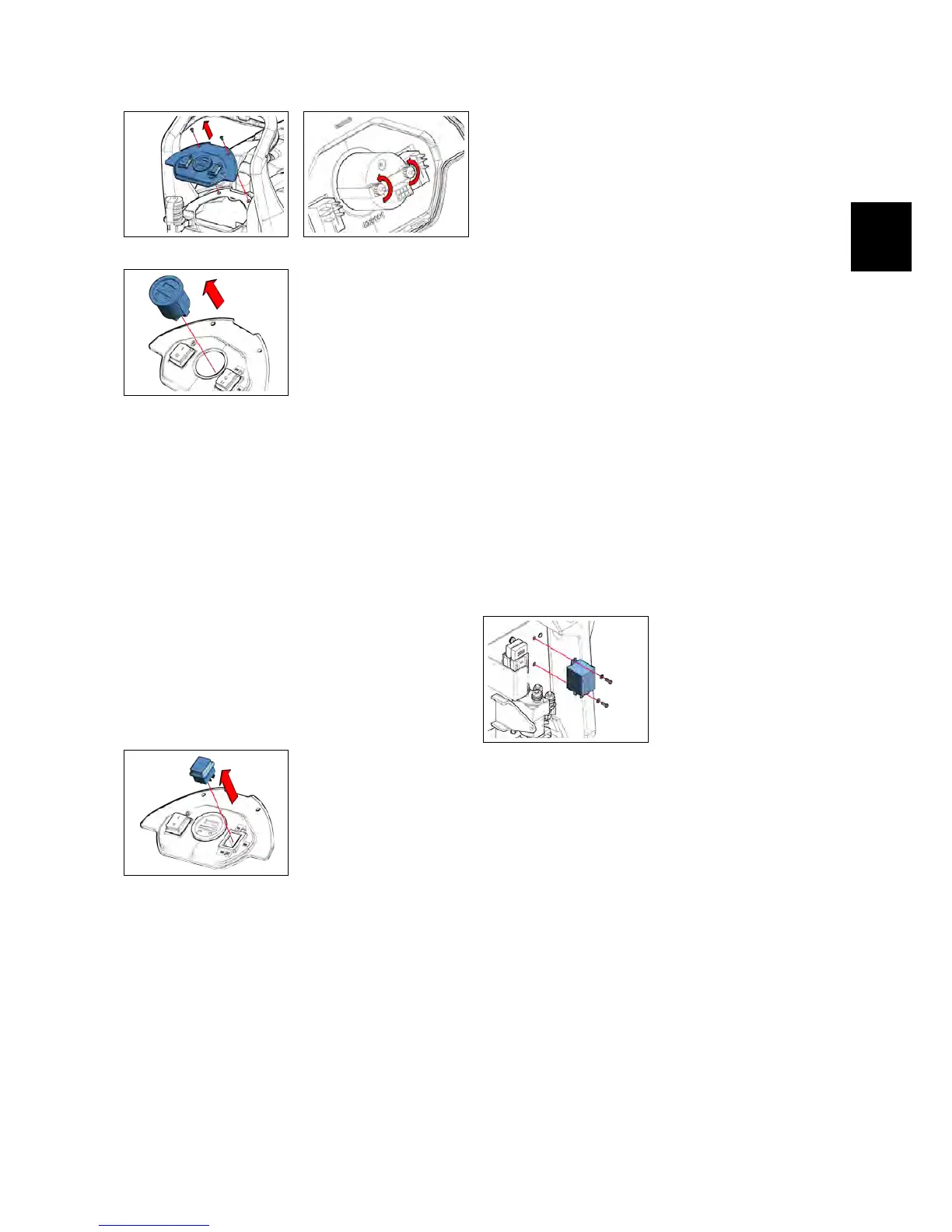

4.1.9-15 4.1.9-16
4.1.9-17
4.1.10 Function Switch IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17).
• Unplug all the wires and cables con-
nected to the Function Switch.
• Remove the Function Switch (see fig.
4.1.10-18).
• Proceed at reverse to refit the part.
4.1.10-18
4.1.11 Vacuum Motor Contac-
tor IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17).
• Remove the Rear Dashboard (see section
4.1.6 at page 18).
• Unplug the wires connected to the
Vacuum Motor Contactor (Rif. RVA)
(see fig. ??).
• Loose the screws that block the Vac-
uum Motor Contactor to the Electric
Panel (see fig. 4.1.11-19).
• Remove the Vacuum Motor Contac-
tor.
• Proceed at reverse to refit the part.
4.1.11-19
4.1.12 Brush Motor Contactor
IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Unplug the wires connected to the
Brush Motor Contactor (Rif. RBR) (see
section 5.5.1 at page 41).
