4-35
• Unplug the electric connection of the
Vacuum Motor (see fig. 4.3.10-70).
• Loose the screws that block the Vac-
uum Motor to the Solution Tank (see
fig. 4.3.10-71).
• Remove the Lower sound-absorbing
Sponge.
• Loose the screws to remove the Vac-
uum Motor Bracket (see fig. 4.3.10-72).
• Proceed at reverse to refit the part.

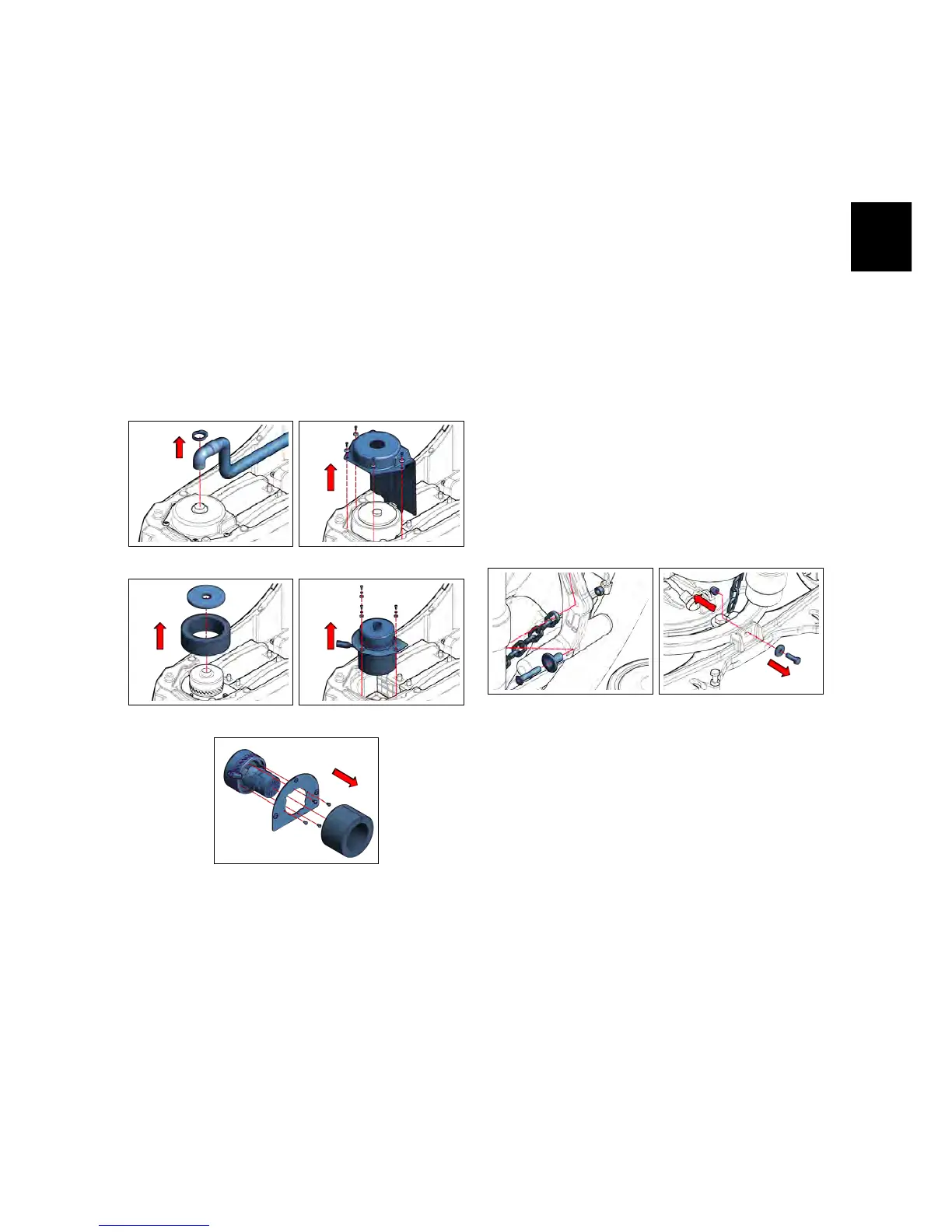

4.3.10-68 4.3.10-69
4.3.10-70 4.3.10-71
4.3.10-72
4.3.11 Squeegee Lifting Chain
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 4.3.1 at page 26).
• Be sure that the Squeegee Com-
mand Lever is in lower position.
• Unscrew the screw that fix the chain
to the Squeegee Command Lever and
let it lie behind the Squeegee Sup-
port (see fig. 4.3.12-75).
• Loose the screw that fix the
Squeegee Lifting Chain to the
Squeegee Support (see fig. 4.3.11-74).
• Remove the Squeegee Lifting Chain.
• Proceed at reverse to refit the part.
4.3.11-73 4.3.11-74
