8-81
Maintenance
Replacement of traction motor Carbon
Brushes:
Procedure:
• Secure the machine.
• Remove the traction unit from the
machine (see section 4.4.3 at page 32).
• Mark the correct positioning of the
motor hood before proceeding in the
operation

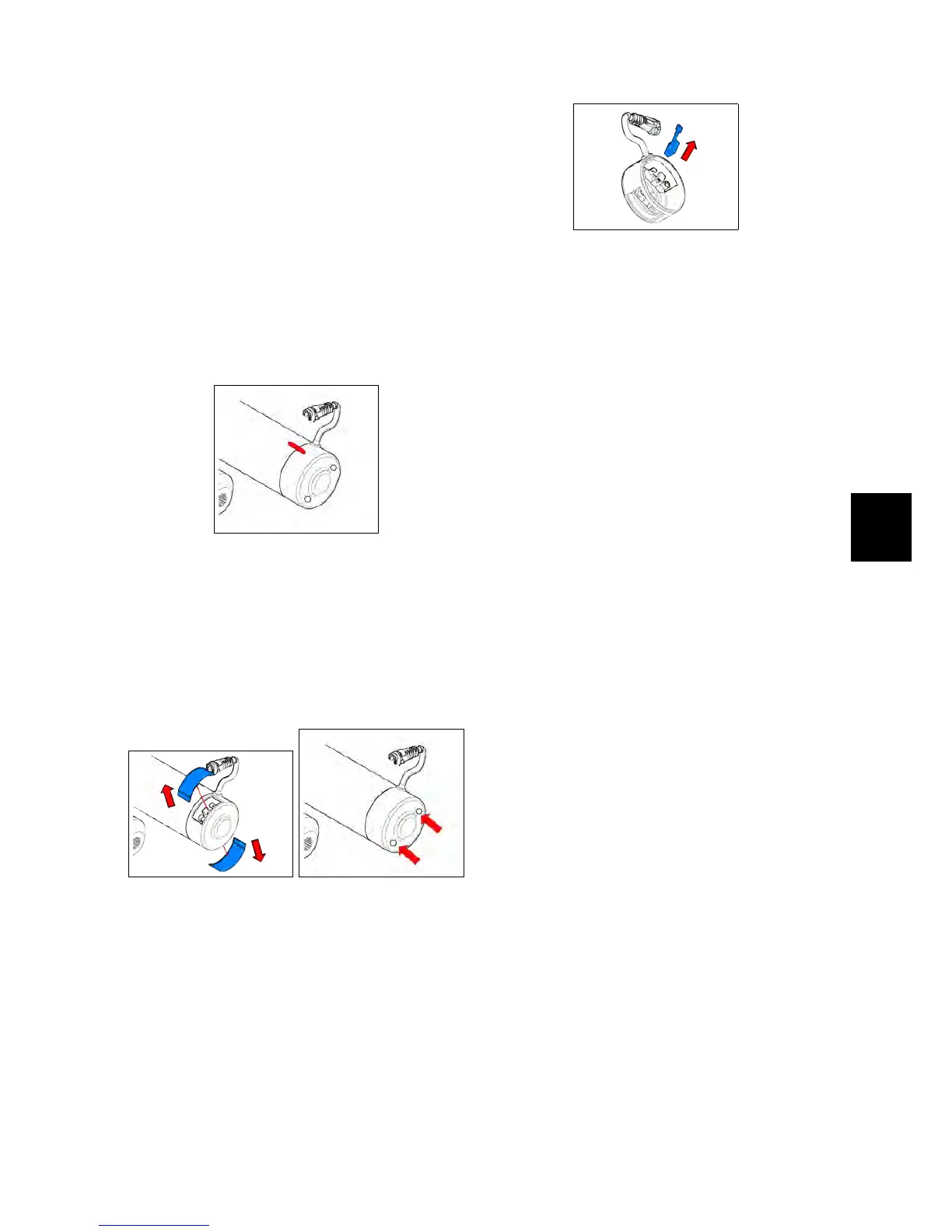

8.4.2-34 Motor Hood Po-
sitioning
• Remove the plastic side covers and
unscrew the screws that secure the
hood to the motor (see fig. ??),(see fig. 8.4.2-
35) .
8.4.2-35 Side Covers 8.4.2-36 Fixing Screws
• Remove the connectors that fix the
carbon brushes to the mains supply
and remove the carbon brushes from
the body of the hood (do not miss the
compensating ring) (see fig. 8.4.2-37).
• Replace the carbon brushes being
careful not to ruin them during as-
sembly
8.4.2-37 Carbon Brushes
removing
• Proceed to the reverse operations to
reassemble everything.
