Fimap IMx - Vacuum Hose; Recovery Tank

4-33
4.3.5-54 4.3.5-55

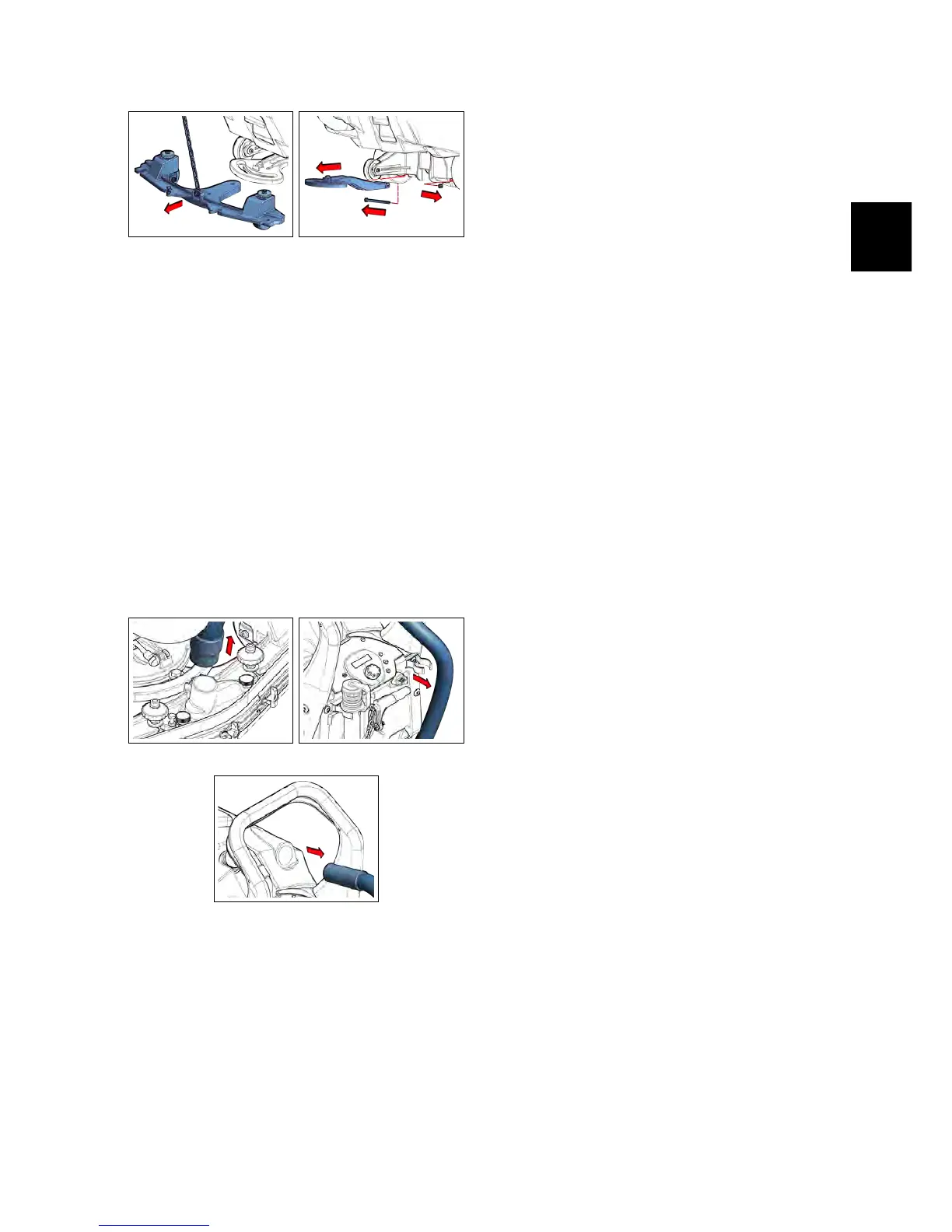

4.3.6 Vacuum Hose
• Put the machine in safe conditions.
• Unplug the Vacuum Hose from the
Squeegee (see fig. 7.4.3-21).
• Uncouple the squeegee from the
plastic clip. (see fig. 4.3.6-57).
• Uncouple the Vacuum Hose from the
Recovery tank Inlet (see fig. 4.3.6-58).
• Proceed at reverse to refit the part.
4.3.6-56 4.3.6-57
4.3.6-58
4.3.7 Recovery Tank
• Put the machine in safe conditions.
• Uncouple the Vacuum Hose from the
Recovery tank Inlet (see fig. 7.4.3-20).
• Unplug the Vacuum Manifold from
the Recovery Tank (see fig. 4.3.7-60).
• Uncouple the Drain Hose from the
clip and let it lie on the floor (see fig.
4.3.7-61).
• Remove the cap from the Recovery
tank (see fig. 7.4.4-22).
• Remove the Recovery tank from the
machine by lifting up it using the
handles. Be careful to slip off the
Drain hoses without damaging it (see
fig. 4.3.7-63).
• Put the Recovery Tank vertically on
the floor.
• Proceed at reverse to refit the part.
Note: Be careful to not damage the
Drain Hose.
