Fimap IMx - 1 Description

10-91
• Connect the battery charger ca-
bles.
1
:
– Connect the charger power ca-
ble to the cables ”XCB” of the
machine harness.
– Connect the safety contact ca-
bles to the cables ”XCBR” of the
machine harness.

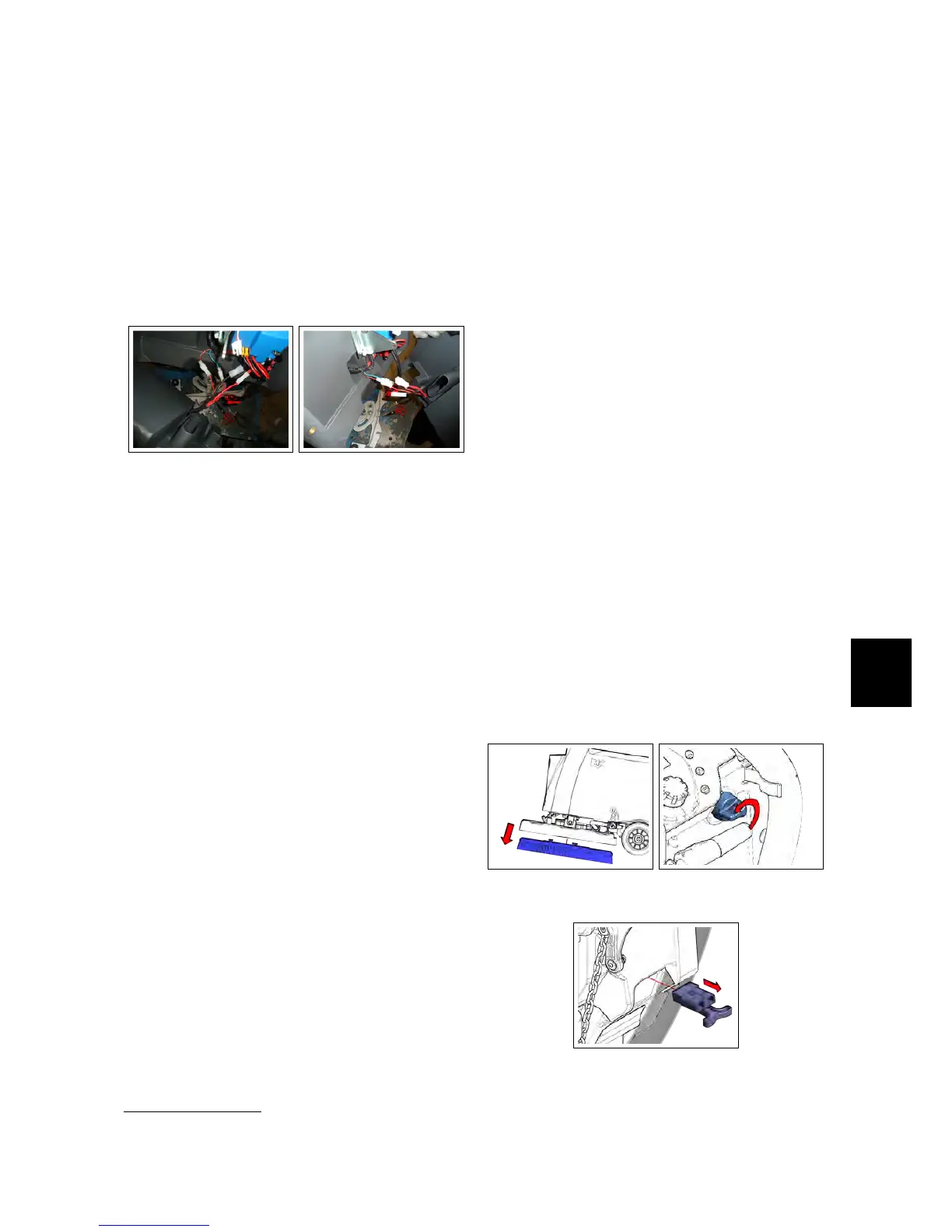

10.3.4-21 Power wires 10.3.4-22 Safety wires
• Install the charger cover.
• Install the rear dashboard.
• Install the dashboard.
• Install the squeegee lifting lever.
1
Refer also to the Electric Scheme
10.4 Extension Handlebar
Kit - 223457
10.4.1 Description
In order to be able to lift the position
of the handlebar, an extensions kit have
been developed. Useful in case the oper-
ator is of high stature, to ensure a cor-
rect posture, keeping the comfort of use
in working condition.
10.4.2 Tools needed for the in-
stallation
• Medium star tip screwdriver.
• Drill:
– Ø 14
10.4.3 Machine Preparation
Before to install the extensions kit is
necessary to secure the machine. Re-
lease the brush,(see fig. 10.4.3-23) switch off
the machine and unplug the batteries(see
fig. 10.4.3-24)(see fig. 10.4.3-25).Proceed to assem-
ble the handlebar extensions.
10.4.3-23 Brush release 10.4.3-24 Machine switch-
ing off
10.4.3-25 Disconnection
of the batteries
