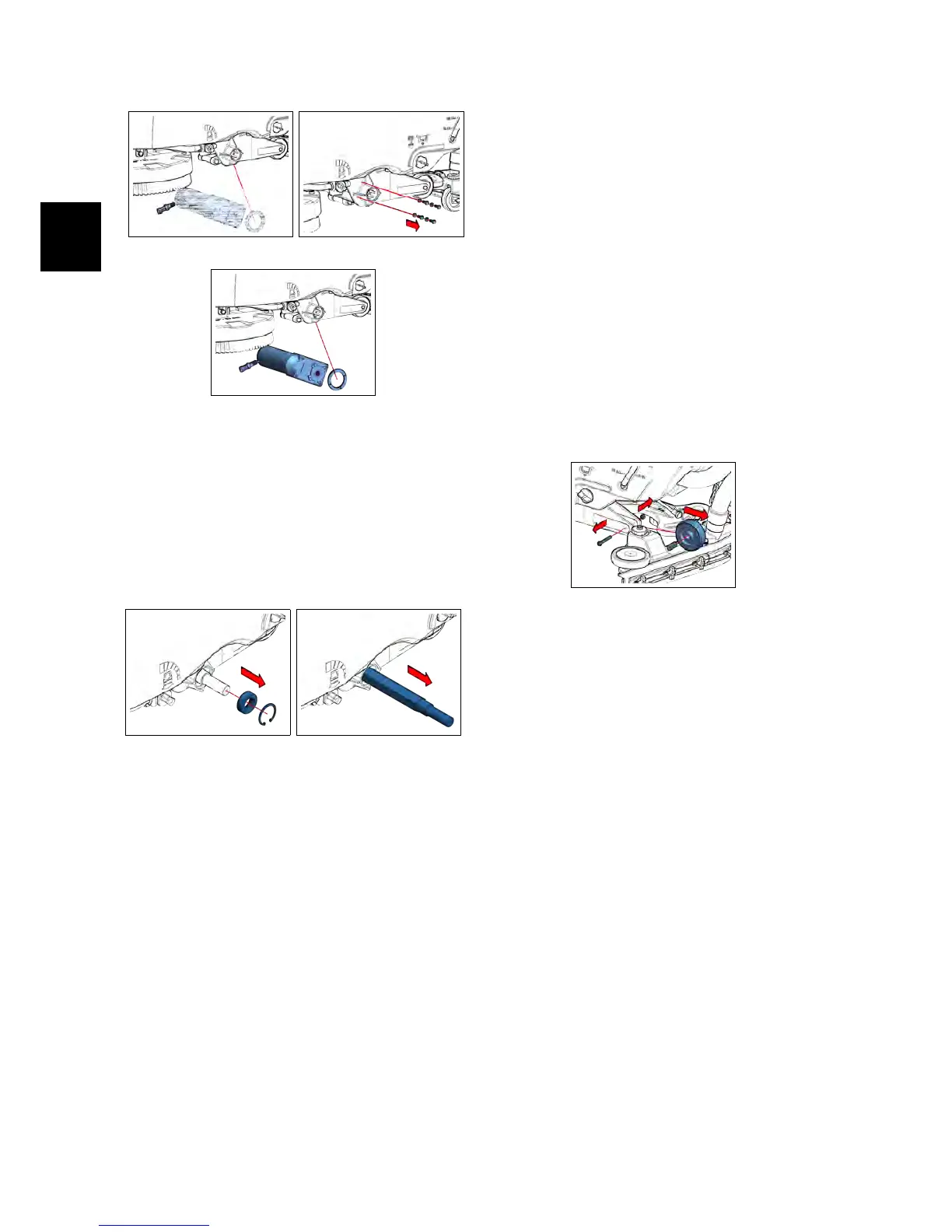

• Remove the bushings (see fig. 4.4.4-84)
• Disassemble the Free Shaft (see fig.
4.4.4-85)
• Proceed at reverse to refit the part.
4.4.4-84 4.4.4-85
4.4.5 Parking Wheel
• Put the machine in safe conditions.
• Tilt the machine to lower the brush
deck on the floor.
• Loose the bolt that blocks the wheel
to the Machine Frame (see fig. 4.4.5-86).
• Remove the Parking Wheel.
• Remove the bushing from the wheel.
• Proceed at reverse to refit the part.
Note: Lubricate the bushing during as-
sembly.
4.4.5-86
