4.1.15 Battery Charger IMx CB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Loose the screws that block the Bat-
tery Charger Cover.
• Remove the Battery Charger Cover.
(see fig. 4.1.15-27)
• Loose the screws that block the Bat-
tery Charger to the Rear Dashboard
and remove it (see fig. 4.1.15-28).
• Proceed at reverse to refit the part.

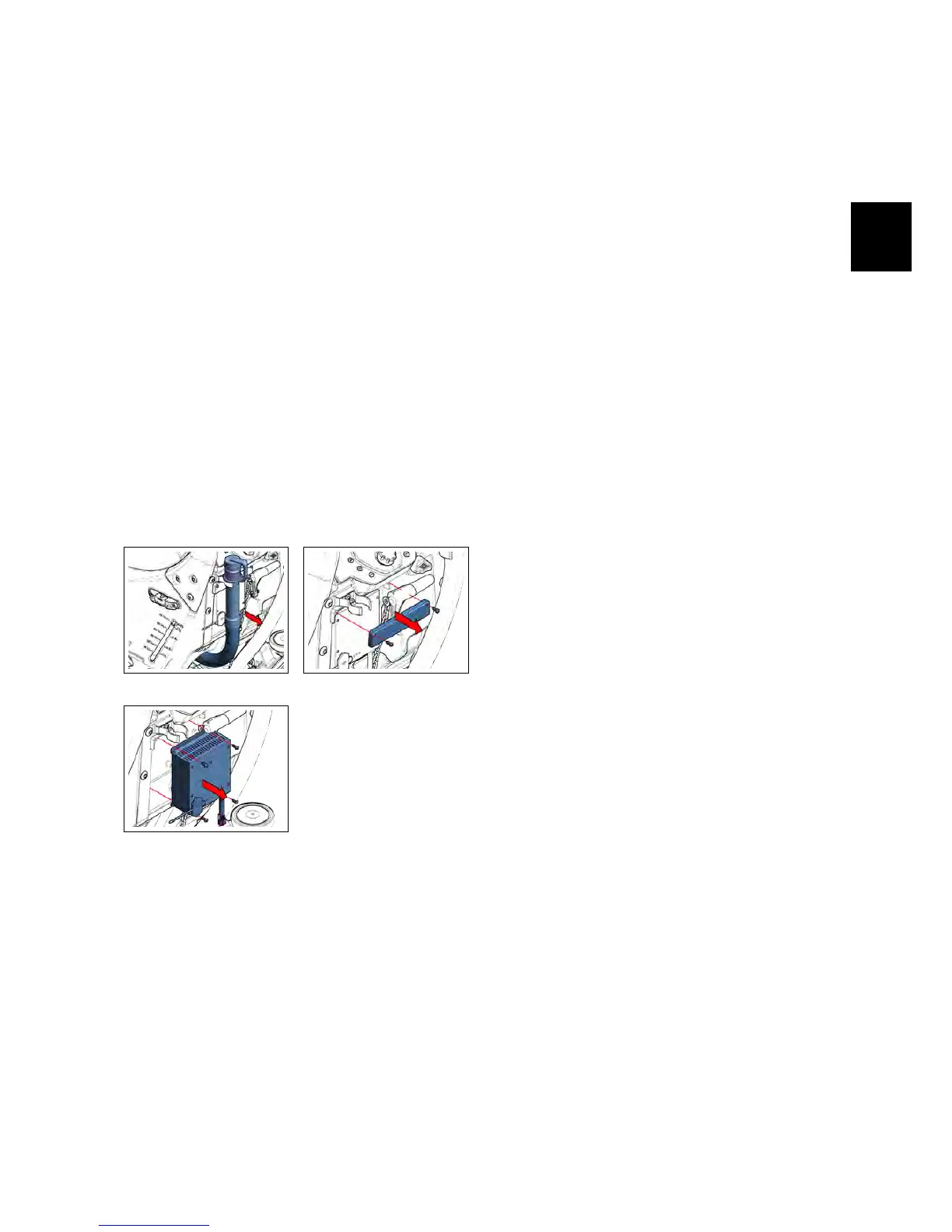

4.1.15-26 4.1.15-27
4.1.15-28
