Fimap IMx - Squeegee Adjustment Wheels; Squeegee Rotation Arm

4-32
• Proceed at reverse to refit the part,
paying attention to take care about
the bushing positioning.

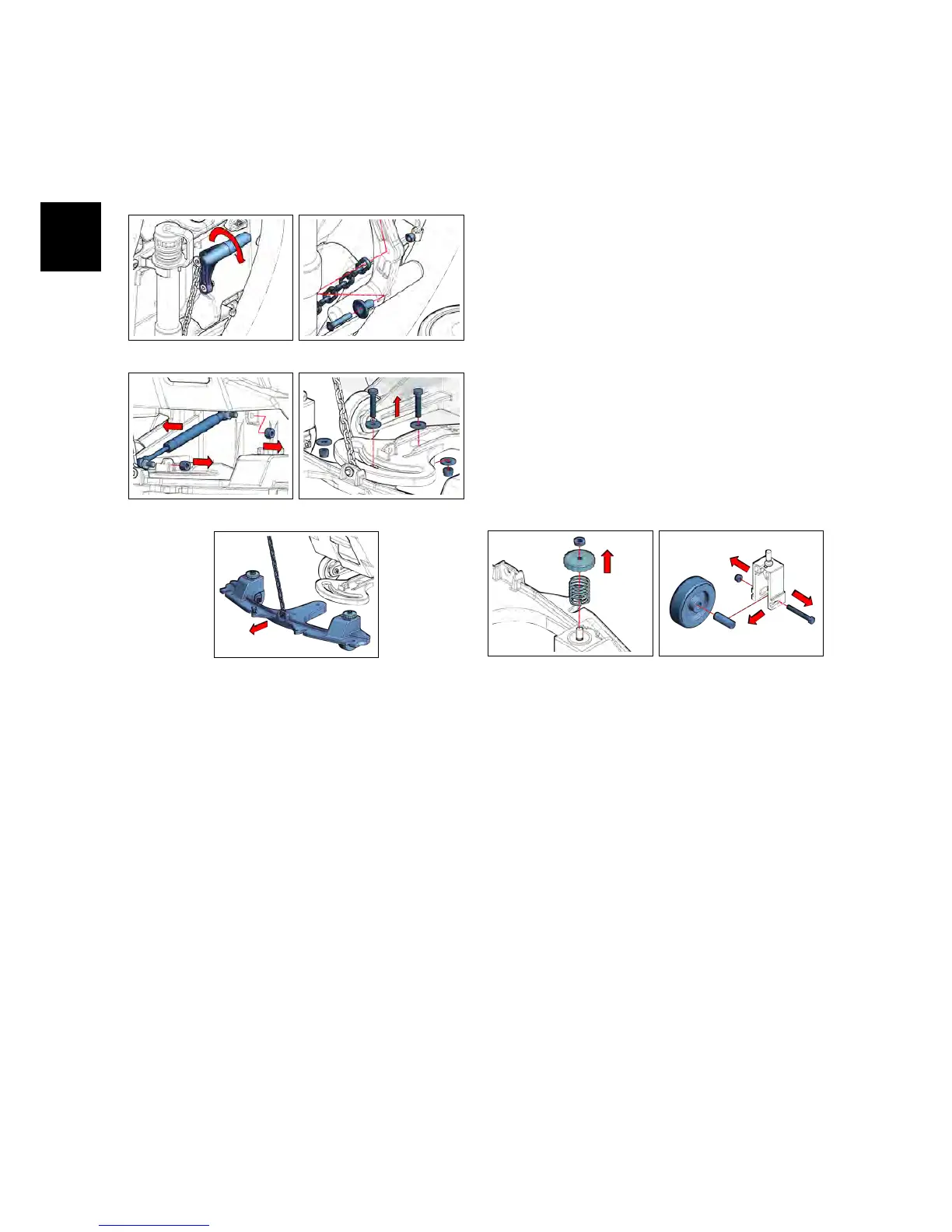

4.3.3-47 4.3.3-48
4.3.3-49 4.3.3-50
4.3.3-51
4.3.4 Squeegee adjustment
wheels
• Put the machine in safe conditions.
• Remove the squeegee support (see sec-
tion 4.3.3 at page 26).
• Remove the squeegee adjustment
knob and the spring (see fig. 4.3.4-52).
• Remove the Adjustment Wheel As-
sembly.
• Unscrew the fixing screw of the
wheel to the support (see fig. 4.3.4-53).
• Proceed at reverse to refit the part.
4.3.4-52 4.3.4-53
4.3.5 Squeegee Rotation Arm
• Put the machine in safe conditions.
• Disassemble the Squeegee Support
(see section 4.3.3 at page 26) (see fig. 4.3.5-54).
• Loose the screws that block the
Squeegee Rotation Arm to the Ma-
chine Chassis (see fig. 4.3.5-55).
• Remove the Squeegee Rotation Arm.
• Proceed at reverse to refit the part.
Note: During the reassembly is impor-
tant to take care about the bushing po-
sitioning.
