Fimap IMx - 12 Squeegee Lifting Lever

4-36
4.3.12 Squeegee Lifting Lever
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 4.3.1 at page 26).
• Be sure that the Squeegee Com-
mand Lever is in lower position.
• Unscrew the screw that fix the chain
to the Squeegee Command Lever and
let it lie behind the Squeegee Sup-
port (see fig. 4.3.12-75).
• Loose the screw that blocks the
Squeegee Movement Support to the
Electric System Panel (see fig. 4.3.12-76).
• Remove the Squeegee Lifting Lever
from the Machine.
• Remove the hub bushing from the
Squeegee Lifting Lever.
• Proceed at reverse to refit the part.

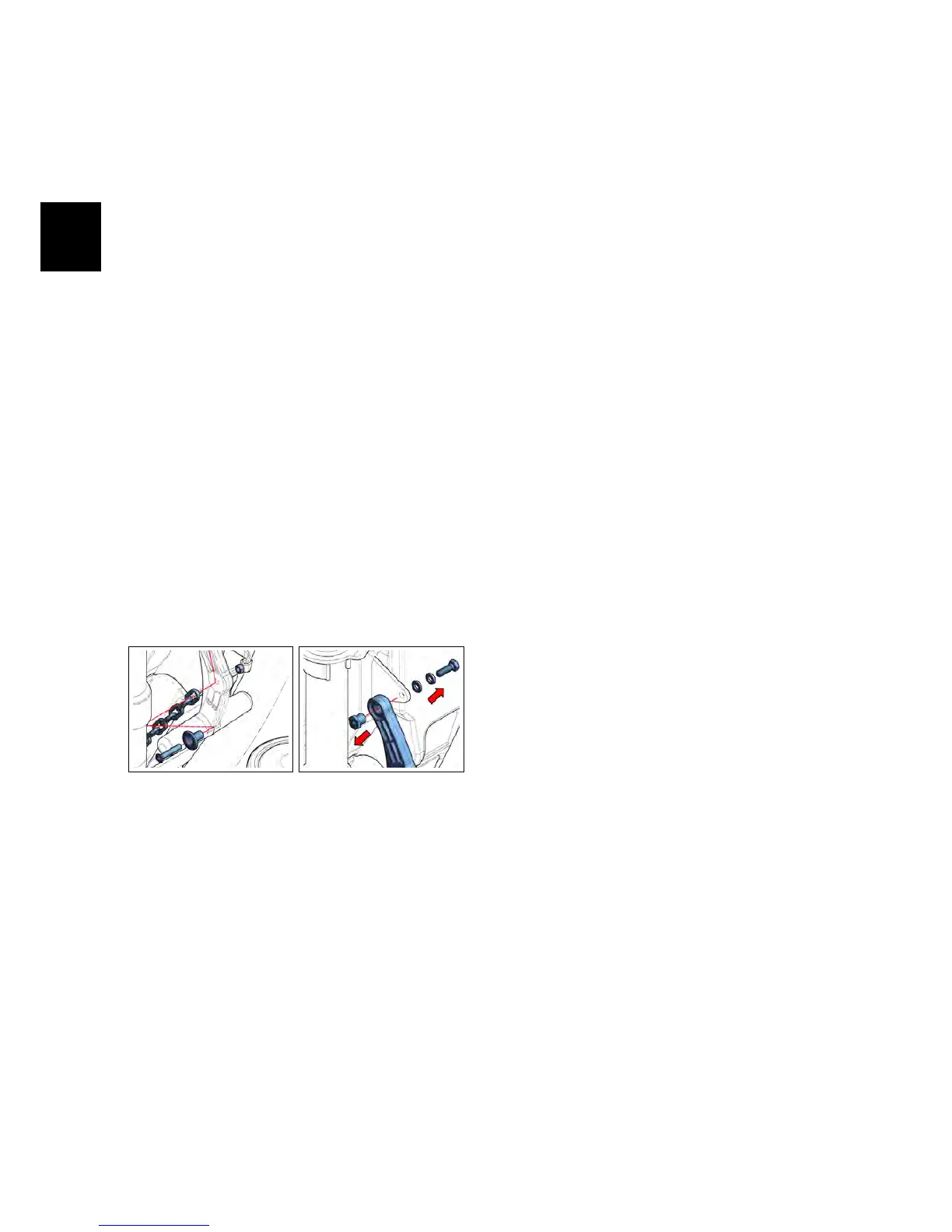

4.3.12-75 4.3.12-76
