10-89
Installing instructions IMx BT

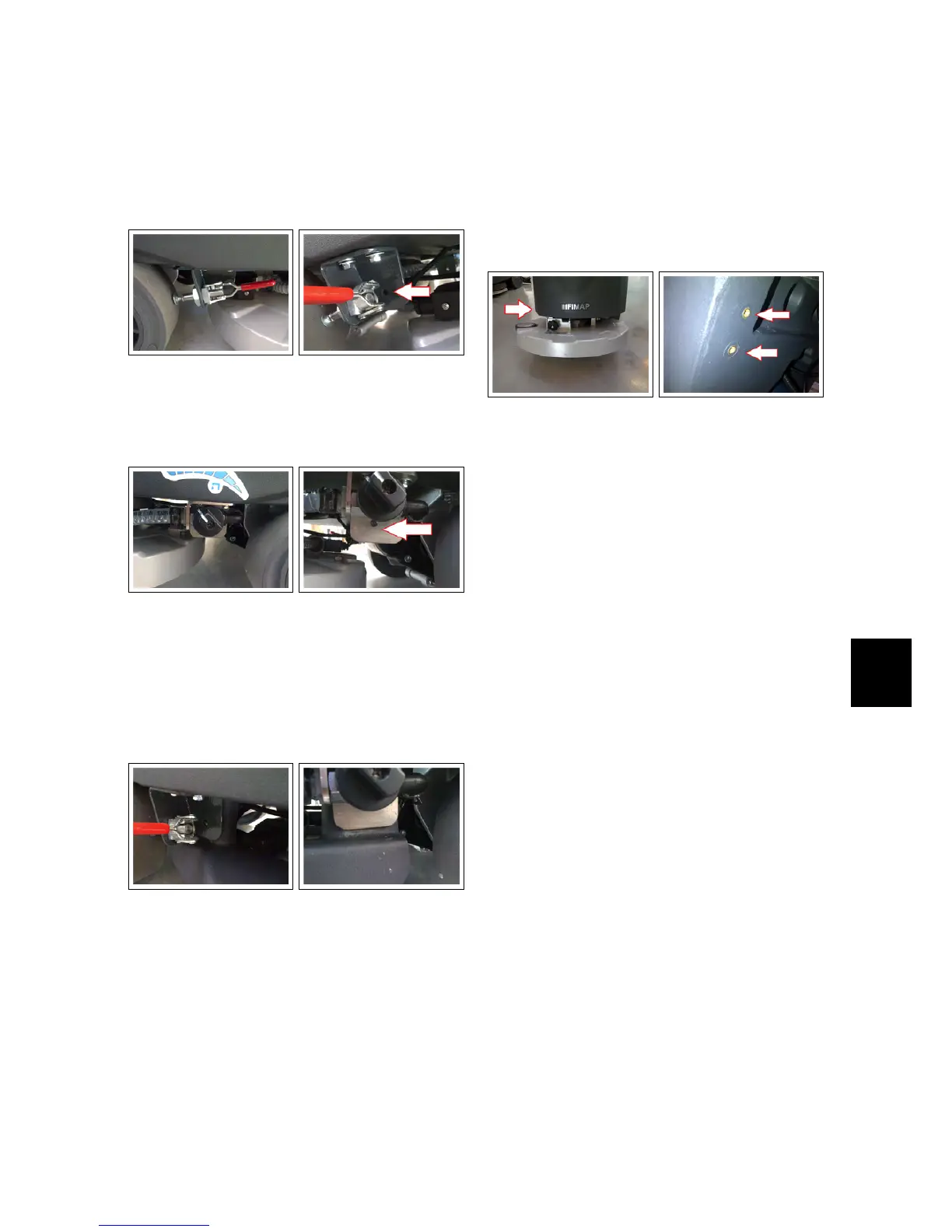

Identify the holes on the support brack-
ets where there are the water valve and
the parking brake.
10.2.3-5 Parking Brake 10.2.3-6 Parking Brake
fixing hole
10.2.3-7 Water valve 10.2.3-8 Water valve fix-
ing hole
Use the screws included on the kit to
block the carter inside the two support
brackets.
10.2.3-9 Splashguard
Carter positioning
10.2.3-10 Splashguard
Carter positioning
Installing Instructions IMx B/BB
Block the support bracket on the right
hand side of the Solution Tank inside
the predisposition close to the Mechani-
cal Friction System. Then proceed as per
previous section.
10.2.3-11 Support
Bracket Fixing
10.2.3-12 Support
Bracket Fixing
