flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 12
2 UNPACKING
The anyfeed SX is shipped in a carton that is banded onto a wooden pallet. The shipping
carton with pallet is approximately 130 cm (48 in) x 75 cm (30 in) x 43 cm (17 in) (L x W x H).
The shipping carton with pallet weighs approximately 80 kg.
Use a forklift or hand truck to move the shipping carton with pallet to the installation area.
Mounting Rail
Pneumatic
connector
Interface Panel
Feed platform
front panel
Feed platform
Bulk container
Handles for lifting
and positioning

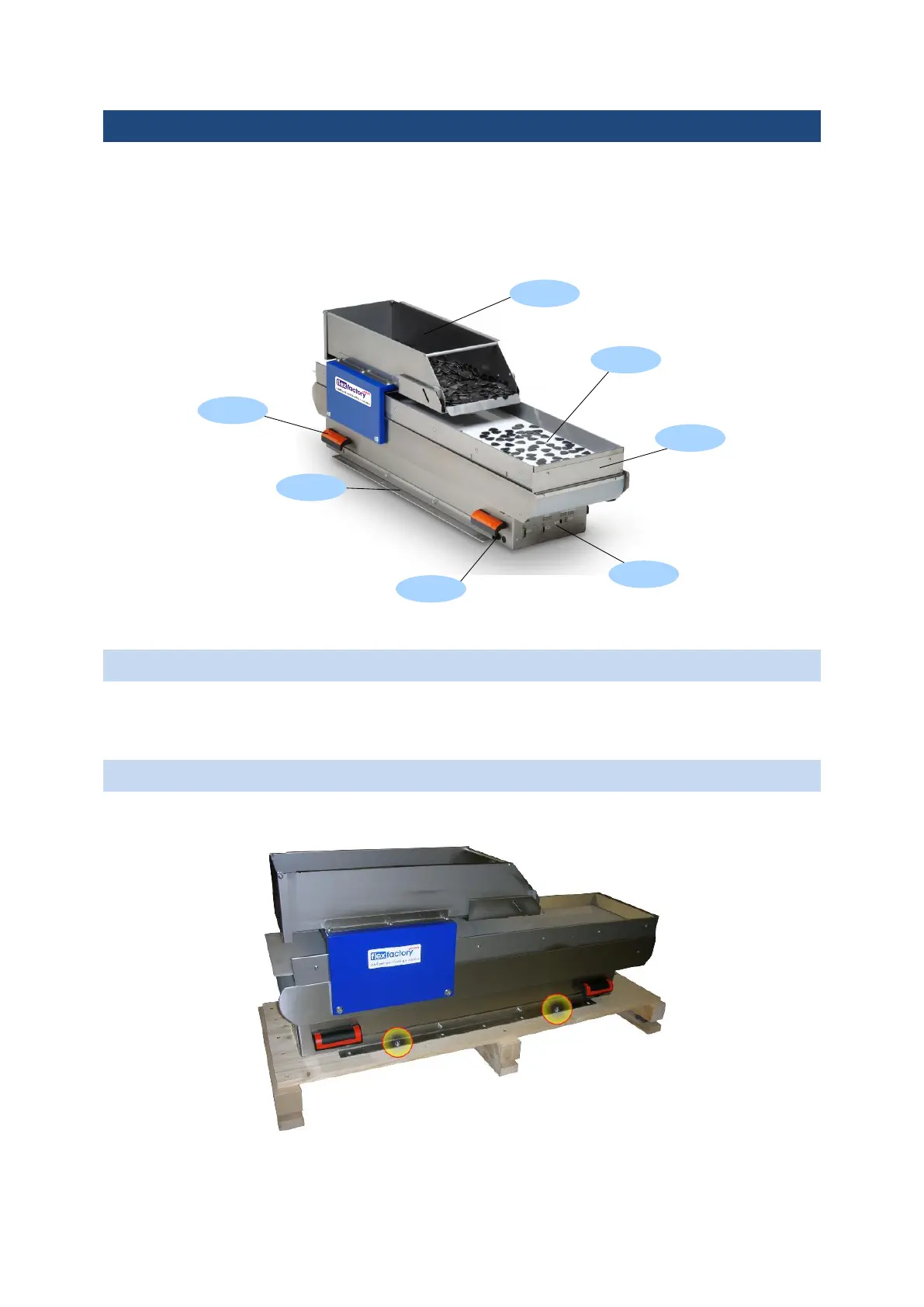

Figure 2-1 anyfeed SX parts
2.1 OPENING UP THE SHIPPING CRATE
Cut banding
Lift off the cardboard box vertically
2.2 REMOVING THE FEEDER FROM THE PALLET
Remove the 4 Screws (2 on each side) connecting the pallet and the mounting rail
Figure 2-2 Mounting rail screws
