flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 20

3.3 INSTALLING THE PNEUMATIC LINE FOR COMPRESSED AIR

 Prepare an 8mm OD air line (air pressure 5 – 6 bar)

 Plug the air line into the pneumatic receptacle as shown in figure 3-2.

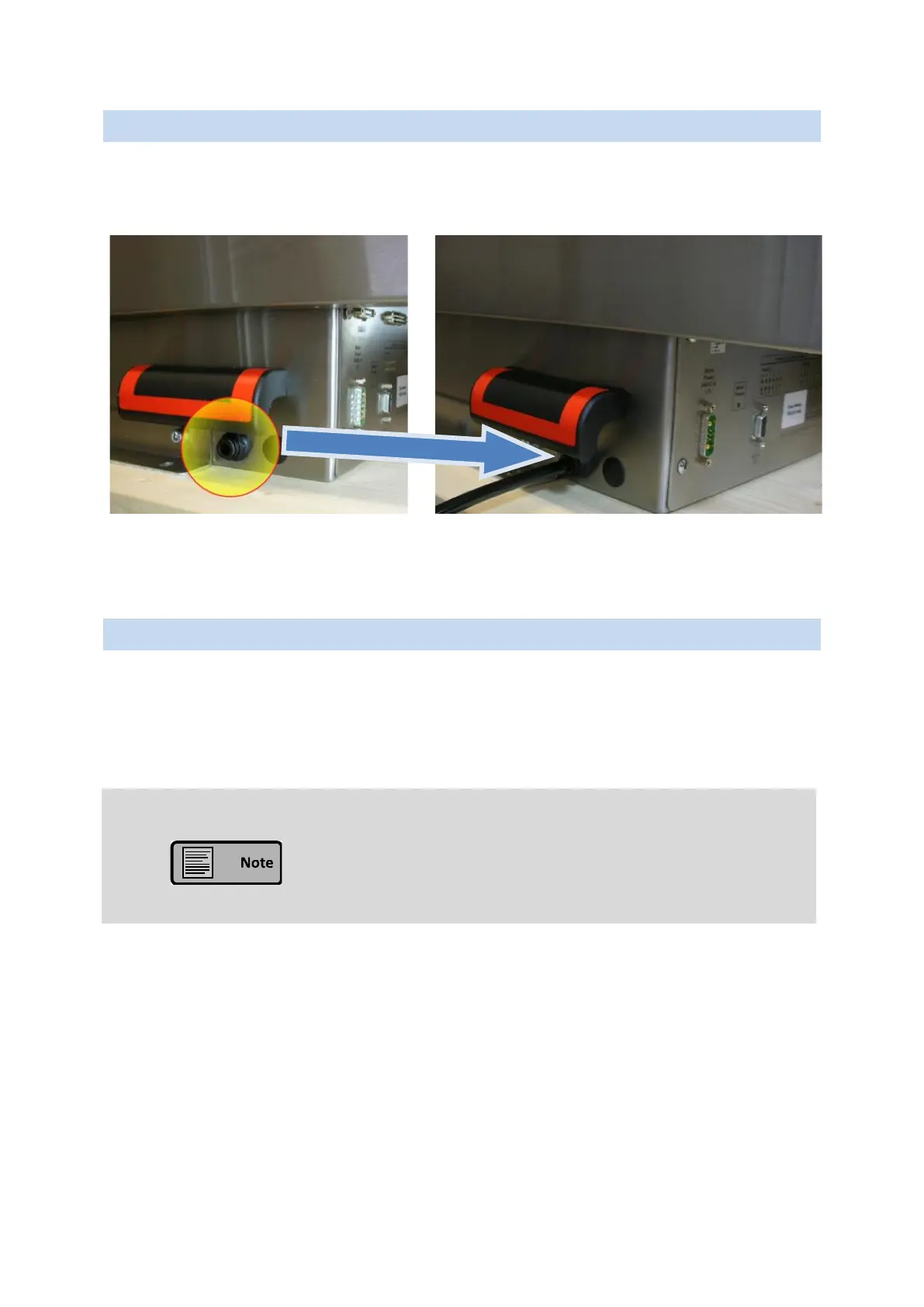

Figure 3-4 Connecting the pneumatic line

3.4 INSTALLING CABLES AND POWER

The following cable connections are required:

• SX Servo Power Cable (supplied)

• RS232 Serial Cable (supplied)

• SX Logic Power Cable (supplied) OR Parallel I/O cable (optional)

We recommend – whenever possible – to draw 24VDC power

for servo and Logic power from a single power supply to avoid

voltage reference problems.

Combined, the power supply must deliver at least 10A at

24VDC.
