flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 50

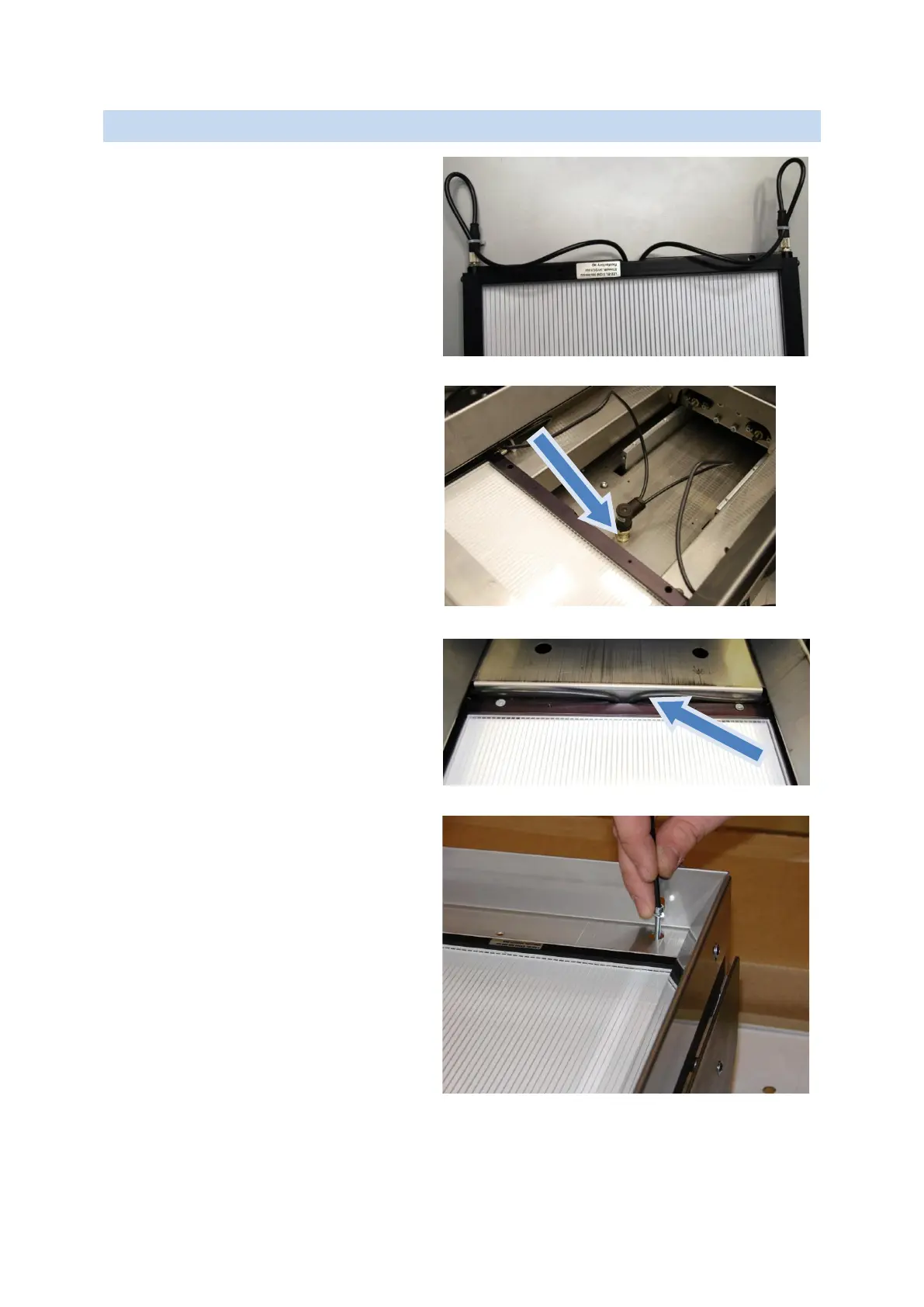

8.3 INSTALLING THE BACKLIGHT G1
1. The cables will need to run along
the backlight, so before sliding the
backlight in, prearrange the cable as
shown. Connect the two small plugs
of the backlight power cable to the
two connectors of the backlight.
Figure 8-4 Preparing the backlight
2. Slide the backlight about halfway in
(cable side first). Then insert the
backlight power plug into the 4 pin
M12 connecter in the feeder’s base
housing. Screw in the plug to secure
it in place. Make sure cable is
pointing toward the back of the
feeder, as shown to the right.
Figure
8-5 Inserting the backlight into the feeder
3. Press the cables against the back
wall with the backlight and let them
join in the middle, now running
beneath the backlight.
Figure 8-6 Positioning the backlight
4. Use a 3 mm allen wrench to install
the four screws in the corners of the
backlight to secure it to the feeder.
Figure 8-7 Installing the backlight screws
5. Reinsert the feed surface from the back of the feeder and reinstall the feed platform front
cover using the two screws.
