flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 49
8.2 PREPARING THE INSTALLATION
The preparations for the installation of the backlight types G1 and G2 are identical.
Follow proper lockout procedures before performing this service
procedure. Failure to do so could result in injury.
1. Slide out the feed surface from the back of the anyfeed SX (as described in section 6.2.)
2. Use a 2.5 mm allen wrench to
remove the two screws from the
feed platform front cover. Remove
the front cover.

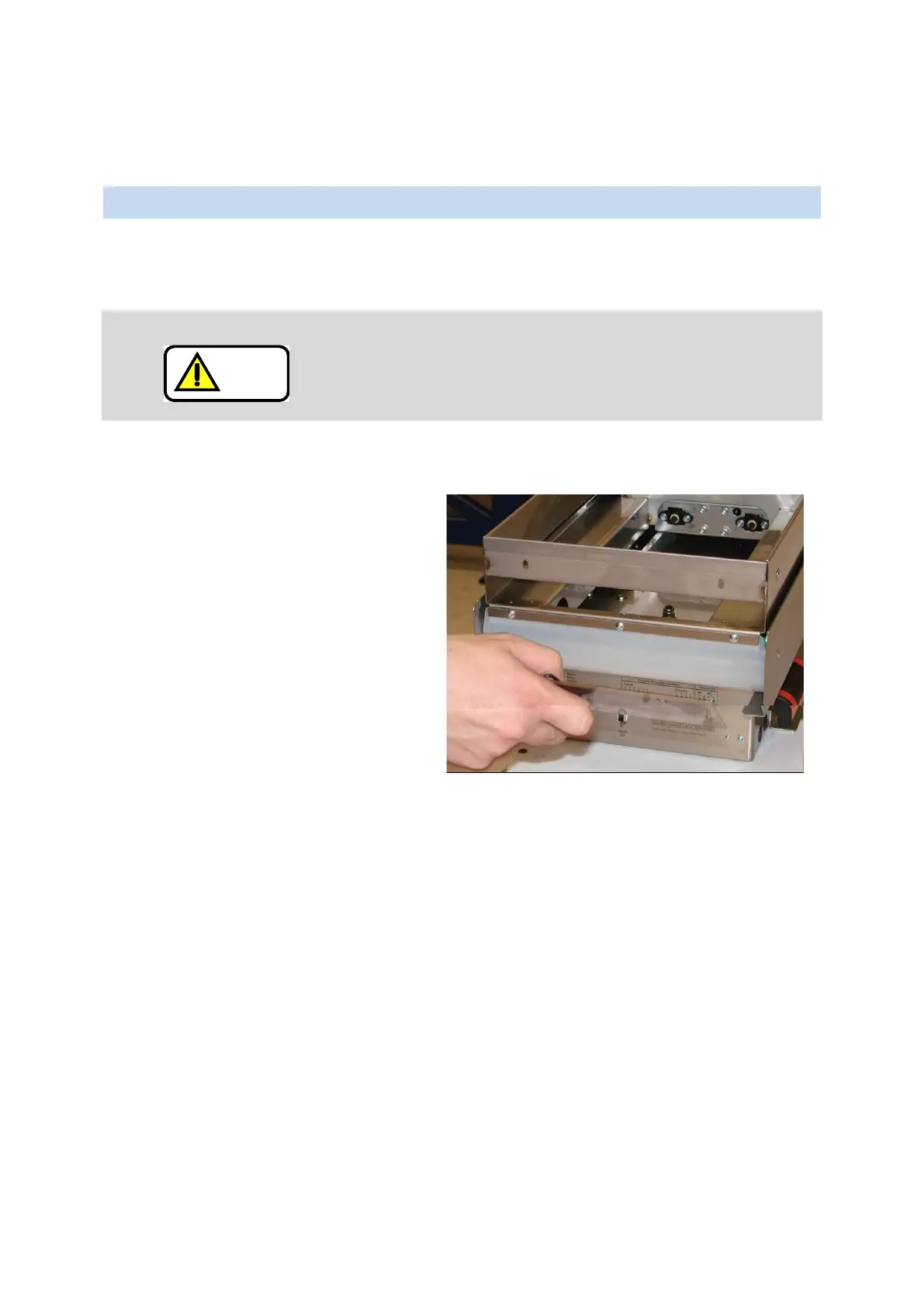

Figure 8-3 Feed platform and front cover
