flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 47

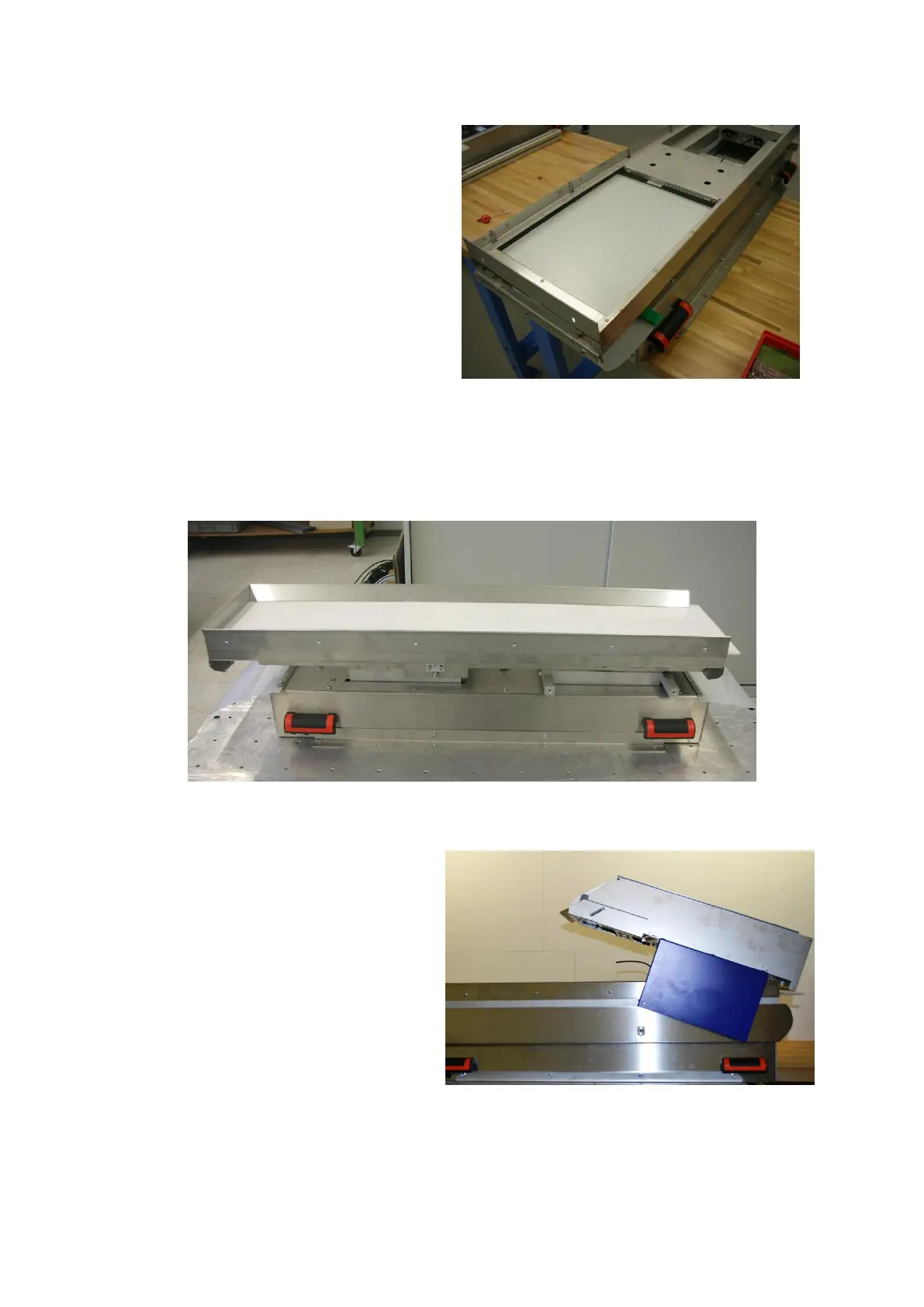

8. Now reinstall the backlight. See
chapter 8 for details.
Figure 7-10 Install the backlight
9. To correctly mount the V-rails, slide in the feed surface first. Now place the V-rails upon it and
screw them back on while applying a bit of pressure from above. When doing this always ckeck
if you can still slide out the feed surface using medium force. Also remount the side panels.
Figure 7-11 Mount the V-rails and the side panels
10. Now you can reinstall the bunker
and the bridge, including the
pneumatic line.
Figure 7-12 Mount the bunker and connect the pneumatic line
