flexfactory anyfeed SX Series - Figure 6-3 Screws on Bulk Container; Figure 6-4 Feed Deck; Figure 6-5 Screw to Set Retainer Speed; Figure 6-6 Feeder Back Plate

flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 43
First, pull out the feed surface from the back of
the feeder (see section 6.2). Then, remove the
three screws on both sides of the bulk
container (Figure 6-3), so it can be moved
aside.

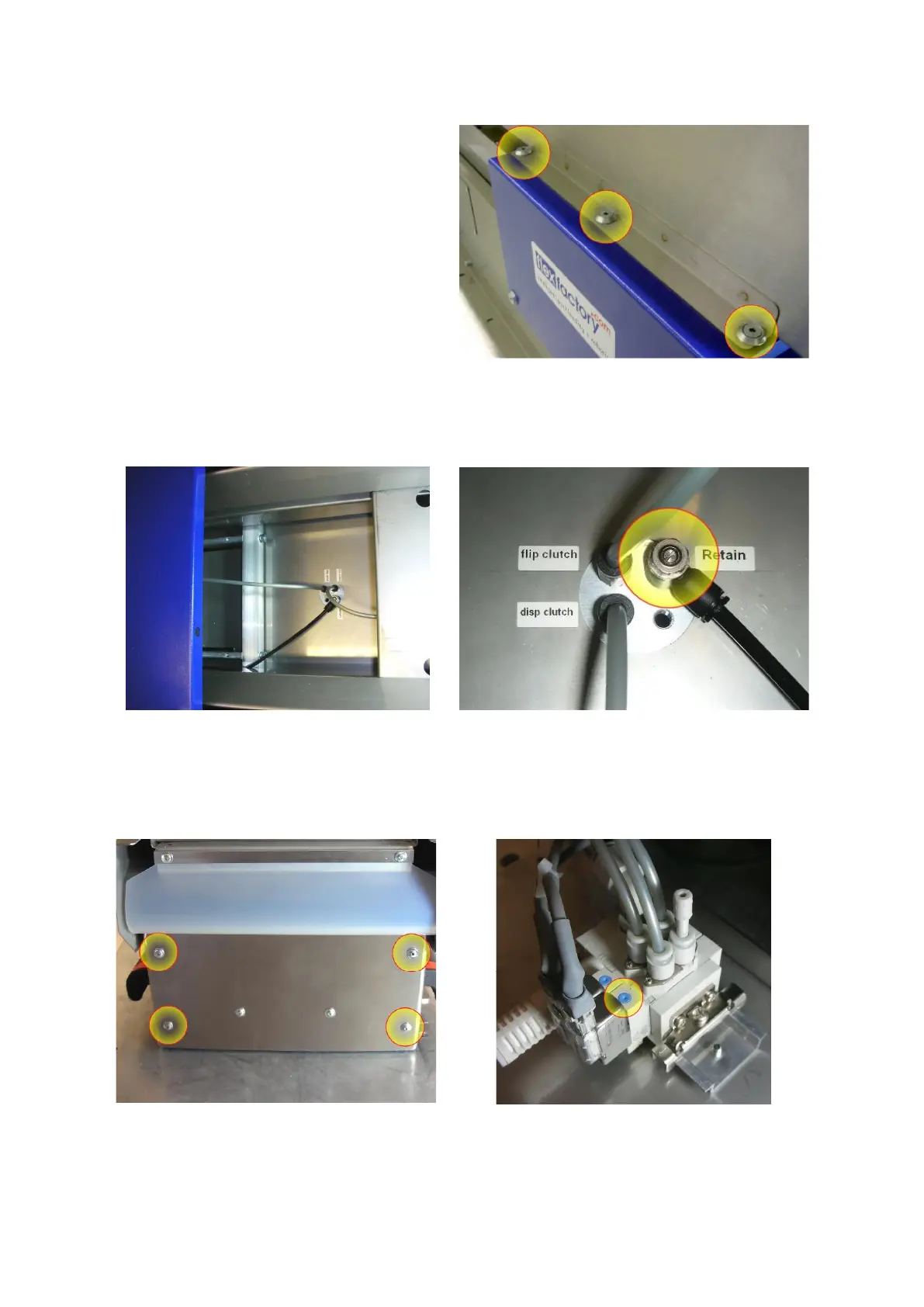

Figure 6-3 Screws on bulk container
Now that you have access to the inside of the feeder (Figurte 6-4), you can increase (clockwise) or
decrease (counterclockwise) the speed of the retainer by turning the screw (Figure 6-5) with a
slotted screwdriver.
Figure 6-4 Feed deck
Figure 6-5 Screw to set retainer speed
To check if you reached the desired speed, you need to remove the back plate of the feeder.
Remove the four screws shown in Figure 6-6. To actuate the retainer, push the blue valve (Figure 6-
7) with a pen or a similar object. To test this, the pneumatic line needs to be connected. Reassemble
the back plate.
Figure 6-6 Feeder back plate
Figure 6-7 Valve block
