8.4 INSTALLIEREN DES BACKLIGHT G2
1. Insert the backlight about halfway
leading with the side the cables are
on. Then connect the G2 backlight
with the LED controller. Attach the
cable tie base as seen on the right. If
necessary, degrease the surface.

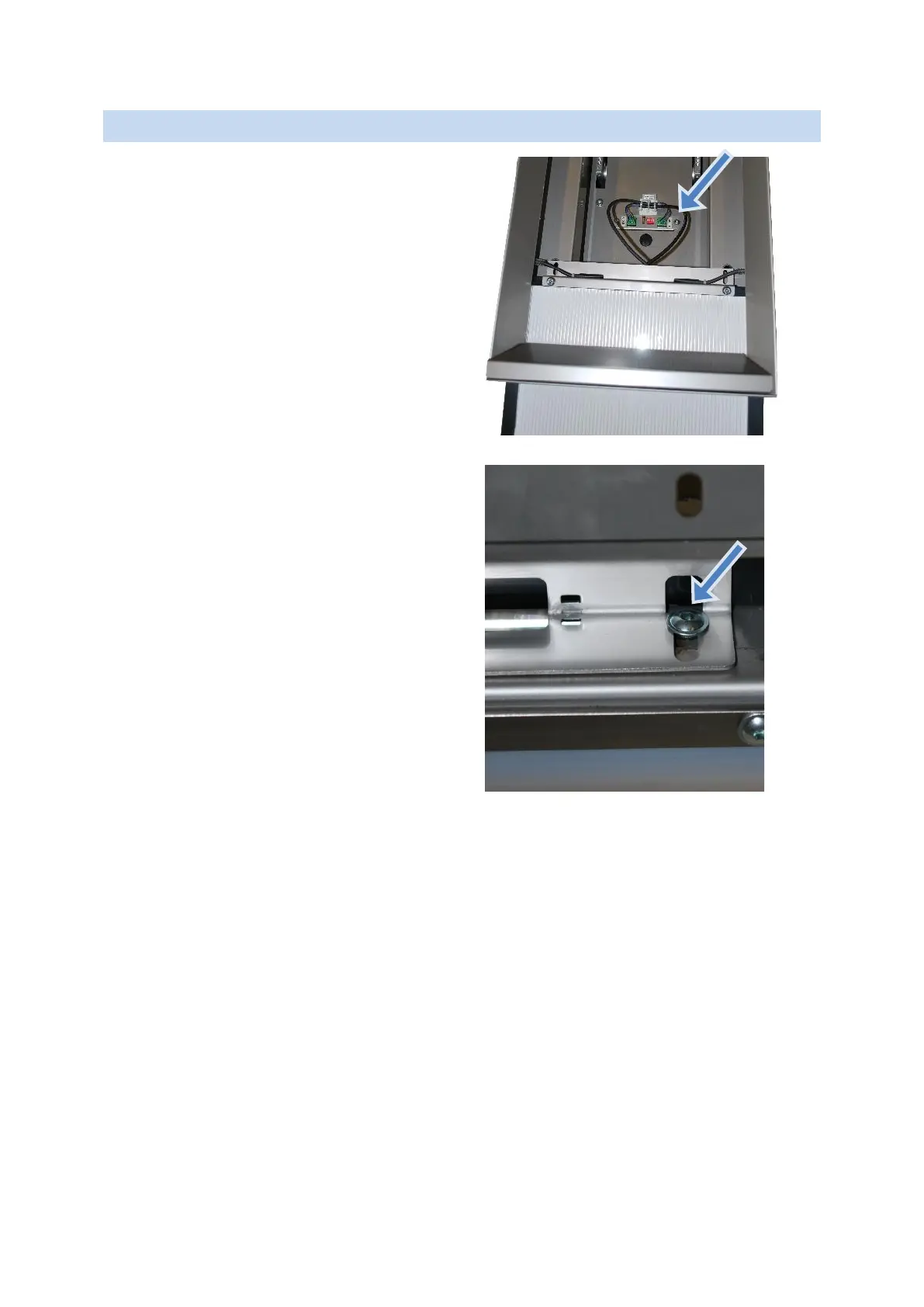

Figure 8-8 Inserting the backlight
2. Push the backlight all the way to the
back and mount it with the four
screws in the corners of the
backlight.
Figure 8-9 Install the backlight screws
3. Slide the feed surface back into the feeder and mount the front cover of the feed platform
with the two screws.
