flexfactory anyfeed SX Series User Manual

flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 22
Step
Cable
anyfeed SX
Feeder Master
Purpose
1
Servo Power Cable
p/n 002-114-001
Feeder interface panel:
plug into J1
+24 VDC: red marked wire
0V/GND: blue marked wire
Shield: black marked wire
Provides 24VDC power
for servo motors inside
anyfeed SX.
2
Logic Power Cable
p/n: 002-061-001
Feeder interface panel:
plug into J3
+24 VDC: red marked wire
0V/GND: blue marked wire
Shield: black marked wire
Provides 24VDC power
for
internal logic and digital
I/O circuits.
3
Serial Cable
p/n 002-116-000
Feeder interface panel:
plug male end into J2
Connect to RS232 port
Establishes RS232 serial
communication
between anyfeed SX
and feeder master,
which can be
a robot controller, a PC-
based vision system or
an intelligent camera.
Cable pinout see
section 3.4.1.
(4)
Parallel I/O Cable
p/n 001-764-001
Feeder interface panel:
plug into J3
Details on how to connect this
end of the cable see section
3.4.2.
Establishes digital I/O
connections between
anyfeed SX and feeder
master.
Only required for
parallel I/O
communication. Cable
can also be used to
simply provide power.

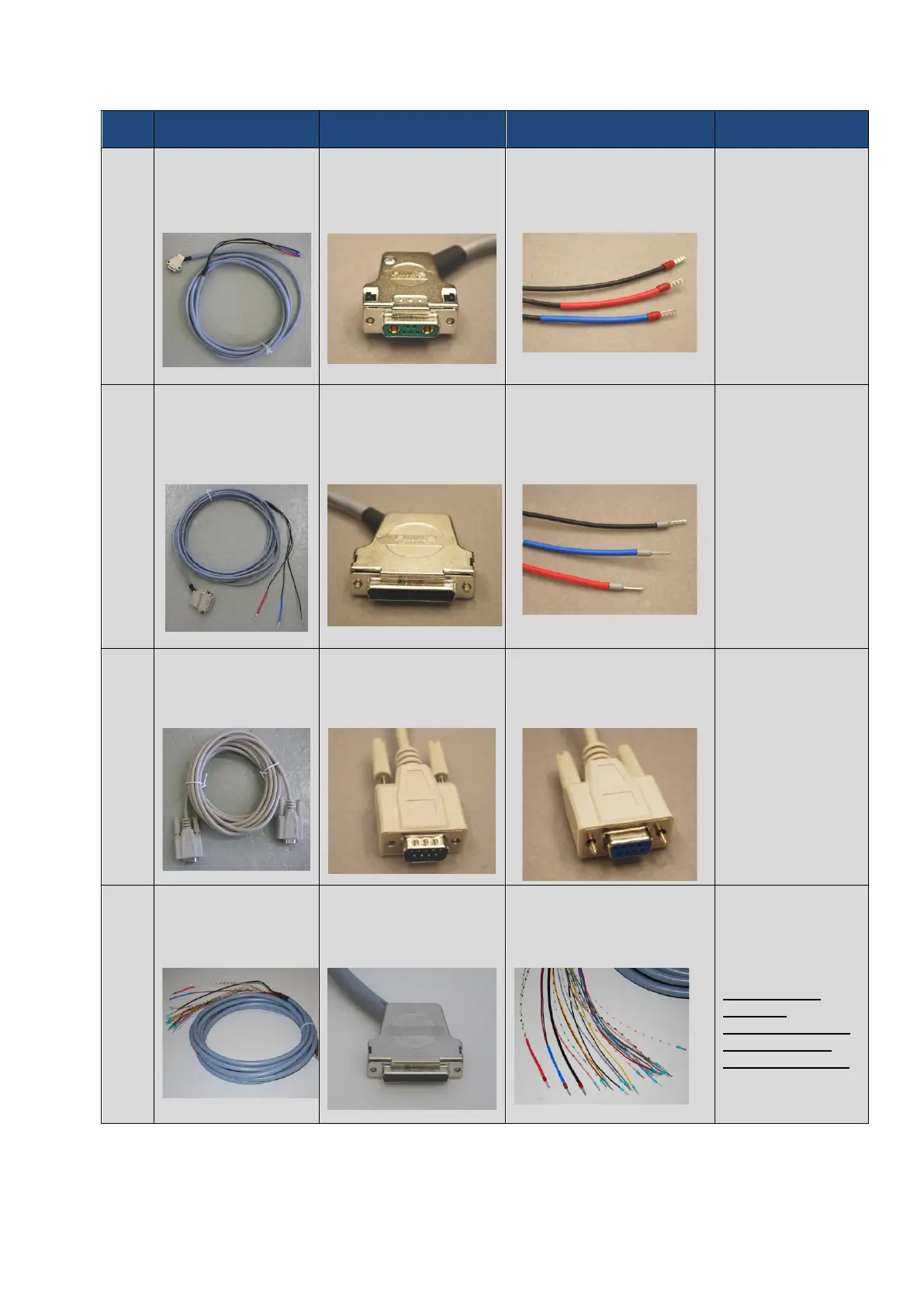

Table 3-2 Installing the Cables
