flexfactory anyfeed SX Series - Configuring the LED Controller; Figure 8-20 LED Controller

flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 59
Check the status LEDs on the LED controller:
If one of the LED bars does not work, the orange
or red LED on the controller will light up.
The green LED always blinks if the LED controller
has current.
The yellow LED is lit in static mode and flashes in
flash mode.
Status LED
Orange
Error LED bar 2
Green
Alive (heartbeat)
Yellow
ON: static mode
PULS: flash mode
Red
Error LED bar 1
Table 8-4 Status LEDs of the LED Controller

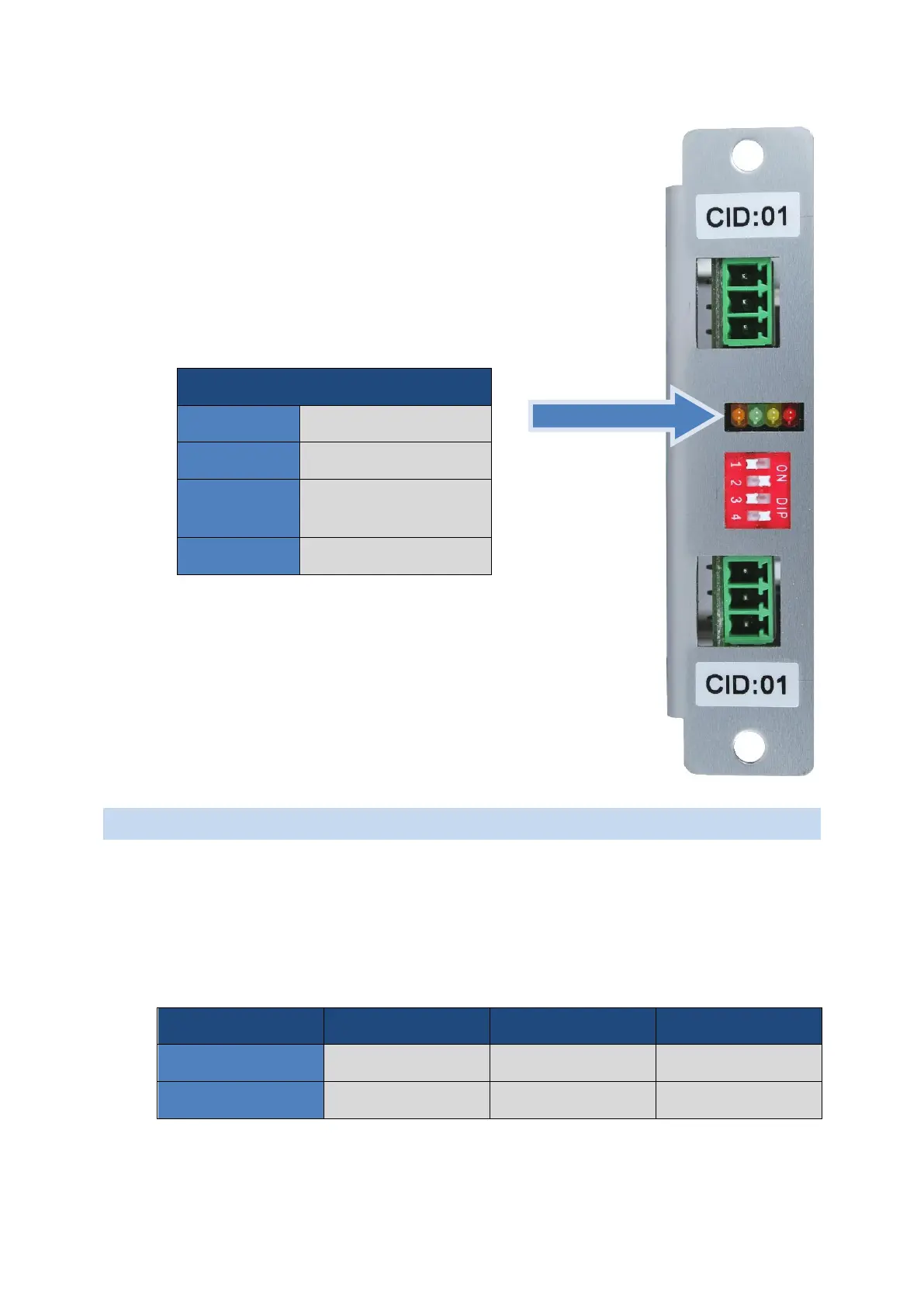

Figure 8-20 LED controller
8.8 CONFIGURING THE LED CONTROLLER
Normally the LED controller is preconfigured for the dedicated feeder. Should it be necessary
to reconfigure the LED controller, the following procedure is applied:
1. All DIP switches (1 to 4) to ON
2. Power on
3. All LEDs blink for ca. 3 seconds
4. With the DIP switches 1 to 3 choose the feeder model:
Feeder
DIP switch 1
DIP switch 2
DIP switch 3
SX240
Off
Off
Off
SX160
On
Off
Off
Table 8-1 LED Controller Konfiguration
