flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 45
3. Be sure to disconnect the
pneumatic line beneath
the bunker.

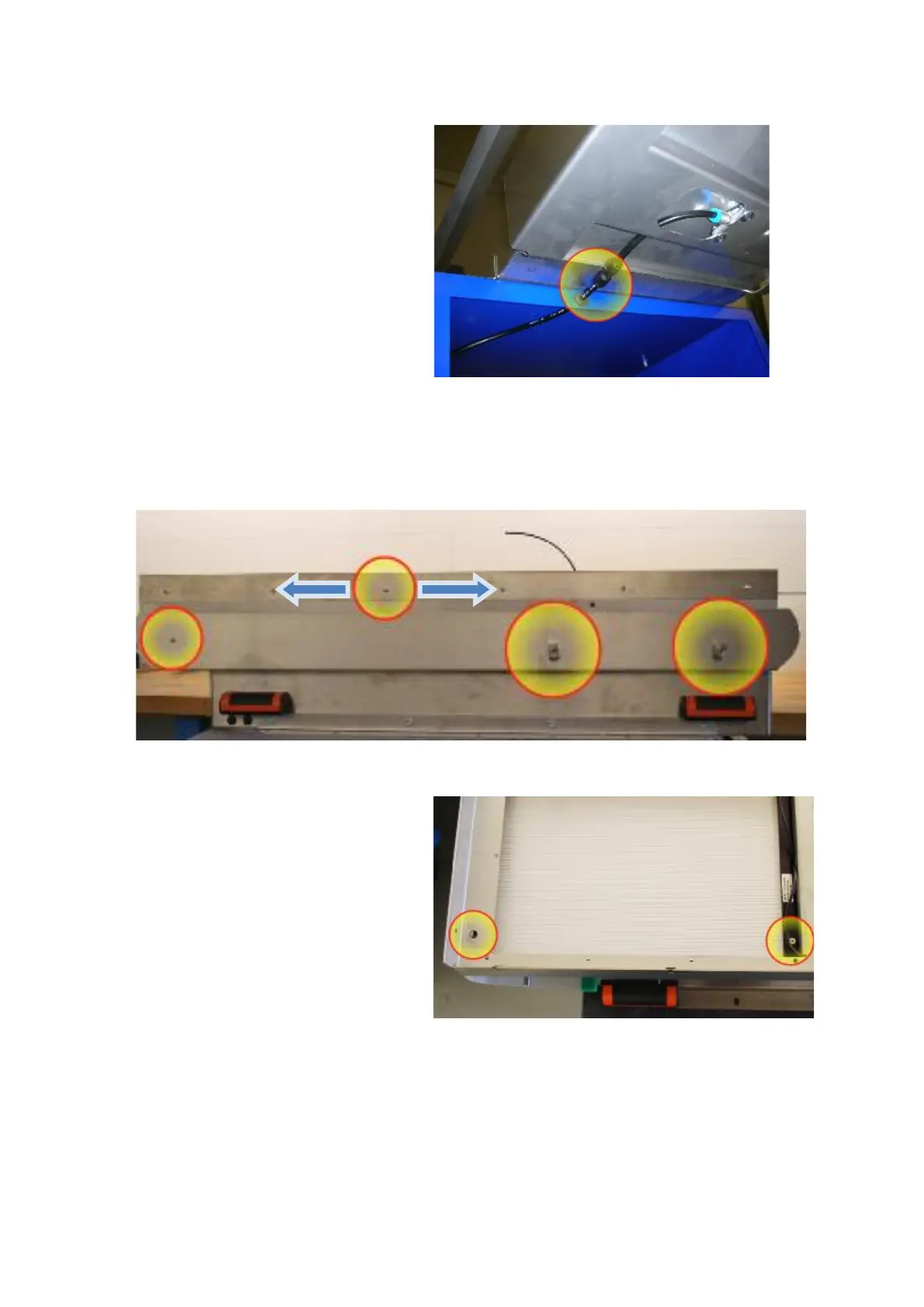

Figure 7-3 Pneumatic line
4. Dismantle the side panels and then the V-rails above them, which are pressing down on the
feed surface. Also slide out the feed surface.
Figure 7-4 Dismantle the side panels and the V-rails
5. Remove the four screws oft he
backlight and pull it out of the
front of the feeder. Also
disconnect the cable between
the backlight and the feeder.
Figure 7-5 Dismantle the backlight
